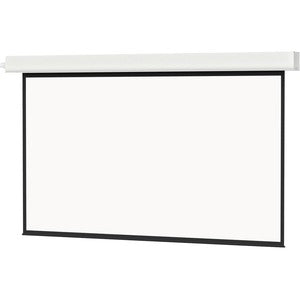

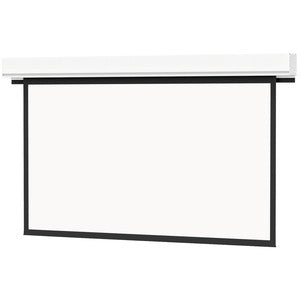

Da-Lite Advantage Series Ceiling-Recessed Electric Projection Screen – 164" Diagonal

The Da-Lite Advantage Series Ceiling-Recessed Electric Projection Screen with a plenum-rated case delivers a seamless, high-performance viewing experience for large-format presentations and home theaters. Designed to install flush with the ceiling, this screen conceals the rough opening with built-in ceiling trim, eliminating the need for additional trim work after installation. Its two-stage installation option simplifies mounting during rough-in and final finishing, making it a smart choice for new construction and retrofits alike. With a 164-inch diagonal and a robust, quiet motorized system, the Advantage screen blends professional-grade image quality with clean aesthetics and reliable operation in commercial environments and premium home theaters.

• Ceiling-trim design hides the rough opening, delivering a clean, professional look with no extra trim work required once the screen is installed. This makes it ideal for both new builds and renovations where a neat, finished ceiling line is essential for aesthetics and acoustics.

• Two-stage installation option allows the screen case to be mounted during rough-in, with final assembly completed later. This flexibility reduces on-site complexity, speeds up installation, and minimizes disruption to other trades during ceiling work.

• Plenum-rated case provides safety and code-compliant air handling for ceiling cavities. Built to meet stringent building standards, the case helps maintain proper airflow and fire safety in enclosed spaces while supporting long-term reliability.

• 164-inch diagonal screen with a widescreen 16:9 aspect ratio, ideal for immersive movies, high-impact presentations, gaming, and large-room viewing. The generous size makes it a focal point in modern home theaters and conference rooms alike, delivering bright, sharp, and accurate image reproduction.

• Electric operation with a quiet, dependable motor and integrated safety features. The system retracts smoothly and uniformly, keeping the room tidy when not in use, and it can be controlled via compatible remotes or wall switches for convenient, everyday use.

Technical Details of Da-Lite Advantage Series Projection Screen

• Product family: Advantage Series Ceiling-Recessed Electric Projection Screen
• Screen diagonal: 164 inches
• Aspect ratio: 16:9 (widescreen)
• Case construction: Plenum-rated aluminum/plenum-certified enclosure designed for ceiling recess mounting
• Mounting/installation: Two-stage installation option for rough-in and finished-ceiling integration
• Operation: Electric retractable screen with compatible control options (remote or wall switch where applicable)
• Fabric/material options: Screen fabrics vary by configuration and order; select from Da-Lite’s range of viewing surfaces to optimize brightness, contrast, and ambient light handling
• Environment: Suitable for professional and home environments requiring large-format projection with clean, concealed aesthetics

How to Install Da-Lite Advantage Series Ceiling-Recessed Screen

• Plan the ceiling cavity and rough-in path, ensuring adequate space for the plenum-rated case, projection throw distance, and service access. Verify surrounding joists, electrical supply, and mounting points align with the screen’s dimensions.

• During rough-in, mount the ceiling frame and prepare the rough opening according to the manufacturer’s dimensions. Leave room for final trim and ensure the opening accommodates the recessed case’s profile.

• Install the plenum-rated case into the ceiling cavity, secure it with appropriate hardware, and connect electrical power and control wiring following local codes and the product’s wiring diagram. Confirm there is clear space for the screen’s movement and ventilation paths.

• Attach the screen fabric or material to the roller mechanism as specified by Da-Lite, align the case with the finished ceiling plane, and verify that the bottom edge remains parallel during operation. Perform a dry run to ensure smooth travel and no interference with ceiling elements.

• Finish the ceiling with trim to conceal the rough opening and the recessed case. Install any wall switches or remotes, program the control if needed, and test projection alignment, focus, and image quality to ensure optimal viewing performance from intended seating areas.

Frequently asked questions

• Q: What screen size is included with the Da-Lite Advantage Series ceiling-recessed screen?

  A: The model described features a 164-inch diagonal screen, offering a large-format viewing surface suitable for spacious rooms and professional environments.

• Q: What does “plenum-rated case” mean for installation?

  A: A plenum-rated case is designed to meet building code requirements for ceiling plenums, offering enhanced fire-safety and ventilation compatibility within enclosed ceiling spaces.

• Q: Can the screen be installed in stages?

  A: Yes. The two-stage installation option allows the case to be installed during rough-in, with final assembly completed later, simplifying installations in commercial and residential projects.

• Q: What maintenance is required for the Da-Lite Advantage Series screen?

  A: Routine checks include ensuring smooth motor operation, verifying the seal around the recessed opening, and occasional cleaning of the screen surface per the fabric manufacturer's guidelines. Power should be disconnected during any maintenance work.
