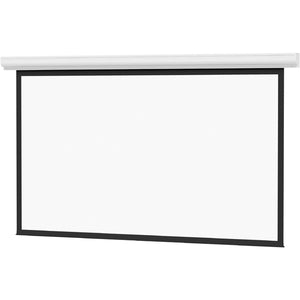

Da-Lite Designer Contour Electrol 120 Electric Projection Screen

The Designer Contour® Electrol® is the latest ceiling or wall-mounted electric screen offering simple installation with the benefit of a smaller housing. A variety of finishes and veneer options make this a seamless addition to any room. This screen does not include the Tensioning Cable System. engineered for elegant spaces, it blends performance with style to elevate home theaters, classrooms, conference rooms, and multimedia environments. Designed to deliver crisp, uniform images from front or rear projection setups, the Designer Contour Electrol promises reliable operation, effortless setup, and a refined aesthetic that won’t overpower your decor.

• Slim, low-profile housing for a clean, unobtrusive installation that minimizes visual clutter while maximizing viewing pleasure.
• Ceiling- or wall-mount versatility lets you retrofit or install in new spaces with ease, backed by sturdy mounting options and precise alignment, ideal for rooms with varied ceiling heights.
• Quiet, reliable electric motor with smooth, drop-down operation and a simple remote control or wall switch option, delivering dependable performance for daily use.
• Extensive finish and veneer options provide a seamless integration with your interior design—from contemporary to traditional aesthetics—without compromising screen performance.
• Durable screen fabric and a robust frame engineered for long life, minimal maintenance, and consistent image quality across a wide range of lighting conditions.

Technical Details of Da-Lite Designer Contour Electrol 120 Electric Projection Screen

• Screen diagonal: 120 inches (diagonal measurement) for immersive viewing in medium to large spaces.
• Aspect ratio: Standard formats commonly configured for 16:9 presentations and home theater content (exact fabric options may vary by model).
• Screen type: Electric projection screen with a motorized retraction system and remote or switch operation.
• Housing: Designer Contour slim housing designed to minimize bulk and integrate gracefully with decor.
• Mounting: Ceiling- or wall-mount compatibility to support diverse installation scenarios.
• Finishes: Multiple veneer and surface options to match room finishes and furniture for a cohesive look.
• Tensioning Cable System: Not included, enabling a streamlined setup with the standard drop-down mechanism.
• Fabric compatibility: Built to support a range of Da-Lite screen fabrics noted for brightness, contrast, and color accuracy in varied lighting.
• Operation: Electrical retraction with a control option via remote, wall switch, or compatible control systems for integrated rooms.
• Durability: High-quality construction designed for frequent use in educational, corporate, and home environments.

How to install Da-Lite Designer Contour Electrol 120 Electric Projection Screen

Installing the Designer Contour Electrol 120 is designed to be straightforward, whether you are mounting to a ceiling or a wall. Begin by selecting a location that provides clear projection with minimal ambient light interference, ensuring the surface is flat, level, and free of obstructions. Use the included mounting template to mark drill points on the ceiling or wall and confirm there is a nearby power outlet for the motorized screen. If you are mounting to a ceiling, verify structural support above the mounting surface, as your installer may need to locate joists or use suitable anchors for secure attachment. For wall installations, ensure the wall can bear the weight of the housing and fabric when fully extended and retracted.

1) Gather the necessary tools: a drill, stud finder, level, screwdriver, and the mounting hardware supplied with the screen. If your installation site requires, you may need additional hardware to secure to building materials not included in the standard kit.

2) Attach mounting brackets: using the supplied hardware, secure the brackets to the joists (for ceiling mounting) or to studs/secured wall anchors (for wall mounting). Use a level to ensure the brackets are perfectly aligned, because even a slight misalignment can affect the screen’s operation and image alignment.

3) Mount the screen: with a partner assisting, lift the screen housing into position and secure it to the brackets according to the manufacturer’s torque specifications. Double-check that the housing sits flush and the screen can retract and extend without friction.

4) electrical connection: connect the motor to a dedicated power source per local electrical codes. If your setup includes a control system or an infrared remote, ensure the receiver is correctly placed and within line-of-sight for reliable operation.

5) Calibration and alignment: once powered, lower the screen fully and inspect for any misalignment or creases. Check the projection surface for uniform tension and smooth retraction. If needed, perform minor adjustments to the mounting hardware to achieve optimal vertical alignment and smooth travel.

6) Final checks and cleaning: verify that the screen retracts fully and stops at the correct height. Wipe the surface with a soft, lint-free cloth to remove fingerprints or dust. Avoid abrasive cleaners that could degrade the image quality.

Maintenance and usage tips: Keep the screen in a climate-controlled environment to protect the fabric and housing from extreme temperatures and humidity. Regularly dust the housing and the edges of the screen surface, and inspect the mounting brackets for any signs of loosening. By following these guidelines, the Designer Contour Electrol delivers reliable performance for many years of daily use in conference rooms, classrooms, or home theaters.

Frequently asked questions

• What size is the Designer Contour Electrol 120 screen?
• Is the tensioning cable system included with this model?
• Can the screen be mounted to either a ceiling or a wall?
• What fabrics are available for the projection surface, and how does fabric choice affect brightness?
• What accessories are recommended for installation and mounting?
• How quiet is the motor during operation and retraction?
