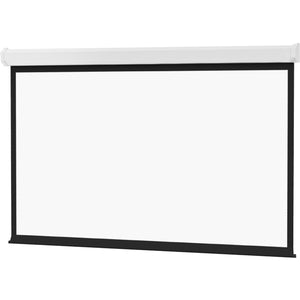

Da-Lite Model C 164" CSR Projection Screen

Experience cinema-scale clarity and effortless operation with the Da-Lite Model C CSR 164" projection screen. This manual, wall- or ceiling-mounted screen is purpose-built for large rooms where presentation impact matters. The CSR, or Controlled Screen Return, delivers a quiet, controlled retraction that keeps the screen neatly tucked away in the case after use, reducing noise and wear while maintaining a pristine surface for your next viewing. The Model C is designed to provide the largest possible picture in a given space, delivering up to a 116-inch screen height for high-impact, professional-grade displays that captivate audiences in boardrooms, classrooms, auditoriums, and home theaters alike.

Built to endure rigorous daily use, the 164" diagonal screen pairs a robust manual mechanism with a durable case and high-quality surface. The setup is ideal where permanent electrical wiring isn’t available or desired, offering a straightforward installation that can be configured for wall- or ceiling-mounted installations. The design emphasizes both performance and practicality: smooth operation, consistent image alignment, and a surface engineered for uniform brightness and color reproduction. For presenters and viewers, the Model C CSR screen translates into crisp text, vibrant graphics, and lifelike video without the distractions of uneven gains or flicker.

The CSR feature is more than a convenience; it’s a performance enhancement. When the screen is in use, the mechanism is tuned for a deliberate, controlled extension or retraction, minimizing bounce and wear. The model requires full extension during operation to ensure the surface remains flat and free of wrinkles, preserving image fidelity from edge to edge. This makes the Model C CSR ideal for rooms with elevated lighting control, where a large, uniform surface can reliably render bright presentations, video content, and immersive media. Whether you’re delivering a keynote, teaching a class, or streaming a movie night, the Model C CSR delivers a professional, reliable experience.

The screen surface and optics are crafted for broad compatibility with standard projection environments. The matte white surface promotes even brightness across the image, while maintaining accurate color reproduction and strong contrast in typical room lighting. Users benefit from a generous viewing area without compromising brightness or clarity, thanks to the surface’s high-quality finish and consistent gain. The result is a projection screen that reproduces vibrant colors, sharp text, and smooth video motion—critical for engaging audiences and ensuring that critical details aren’t lost in shadows or glare.

Placement flexibility and ease of use are central to the Model C CSR’s appeal. The manual mechanism eliminates the need for external power, cables, or complex calibration, making it an attractive option for classrooms, training centers, churches, and home theaters where straightforward operation is valued. The combination of a large 164" diagonal with a 16:9 aspect ratio offers an expansive viewing field that remains accessible to a wide audience, while the compact case design cleanly integrates into a variety of room aesthetics. In spaces with limited ceiling height or unique architectural constraints, this screen stands out as a dependable and scalable solution that can be configured to fit your specific layout.

• Large-format projection: 164" diagonal with a 16:9 aspect ratio, ideal for big rooms and impactful presentations.
• Controlled Screen Return (CSR): quiet, precise retraction that preserves the screen surface and case integrity after use.
• Manual operation: simple, power-free operation suitable for wall- or ceiling-mounted installations.
• Flexible mounting options: designed for both wall and ceiling mounting to accommodate diverse room geometries.
• Premium viewing surface: matte white finish with uniform gain for bright, vivid images and clear text.

Technical Details of Da-Lite Model C 164" CSR Projection Screen

• Diagonal: 164 inches
• Aspect ratio: 16:9
• Screen height (maximum): 116 inches
• Surface: Matte white projection screen with uniform gain
• Mechanism: Manual pull-down with CSR (Controlled Screen Return)
• Case: White aluminum housing designed for durability and discreet appearance
• Mounting: Wall- or ceiling-mounted installation
• Extension: Fully extended operation required for CSR performance
• Usage: Suitable for large conference rooms, classrooms, auditoriums, and home theaters

How to install Da-Lite Model C 164" CSR Projection Screen

• Choose a suitable mounting location with a clear projection path and sufficient wall or ceiling space for a 164" diagonal screen.
• Confirm electrical considerations are unnecessary for a manual screen, but ensure nearby power is available if you later decide to add an alternative motorized option.
• Mount the fabric case securely using the included hardware and follow the provided installation template for precise alignment.
• Center the screen surface so it sits parallel to the floor and projectors align with the image boundaries to avoid keystone distortion.
• Test the CSR mechanism by slowly pulling the screen down to full extension, then retract fully to ensure a quiet, smooth return.
• Adjust any wall plates or mounting brackets as needed, and verify the screen remains level during operation for a consistent image across the viewing area.

Frequently asked questions

Q: What is CSR and why is it important?
A: CSR stands for Controlled Screen Return. It provides a quiet, controlled retraction that protects the screen surface and casing, ensuring a smooth, reliable return every time you close the screen. For CSR screens, full extension is required to achieve optimal performance and image consistency.

Q: Can I install the Da-Lite Model C CSR on a wall or ceiling?
A: Yes. The Model C CSR is designed for both wall- and ceiling-mounted installations, offering flexible mounting options to fit various room configurations and projector setups.

Q: What size and aspect ratio do I get with this screen?
A: The screen diagonal is 164 inches with a 16:9 aspect ratio, providing a large, cinematic viewing area suitable for presentations, video, and multimedia content in large spaces.

Q: What type of surface does the screen use?
A: The screen features a matte white projection surface with uniform gain, designed to deliver bright, accurate images with consistent brightness and color across the entire viewing area.

Q: Is this screen suitable for bright rooms or rooms with ambient light?
A: The matte white surface prioritizes brightness and color fidelity, making it well-suited for many environments, including rooms with controlled lighting. For very bright rooms, consider lighting control or higher-gain surfaces as part of your overall projection strategy.

Q: What maintenance or care does the screen require?
A: Regular dusting with a soft cloth is usually sufficient. Avoid harsh cleaners or solvents on the surface to preserve image quality. The CSR mechanism is designed for long-term reliability with proper use and full extension during operation.
