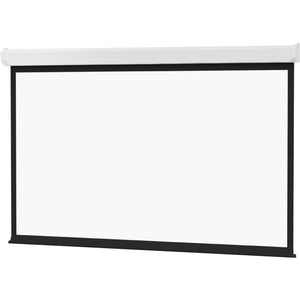

Da-Lite Model C 84" Projection Screen

The Da-Lite Model C 84" Projection Screen is a durable, high-performance manual screen designed for large rooms where reliable operation and flexible installation matter most. Built for frequent use in classrooms, corporate spaces, houses of worship, and conference facilities, this screen combines sturdy construction with smooth mechanical performance. It is compatible with both wall- and ceiling-mounted installations, giving you installation versatility to suit your room layout and viewing angles. Please note that the Model C does not feature the Controlled Screen Return, prioritizing a straightforward, robust mechanism with a traditional return to the case. If you want a dependable projection surface that remains quiet and steady through routine use, the Model C delivers reliable results without the complexities of electronic components.

• Versatile mounting options for large rooms: Designed for both wall- and ceiling-mounted installation, the Model C provides flexible placement to maximize visibility in expansive spaces such as lecture halls, training centers, and multi-purpose rooms. Its size and mounting versatility help ensure everyone in the audience gets a clear, unobstructed view of the projection.
• Smooth, durable operation with heavy-duty engineering: The screen’s internal mechanism uses permanently lubricated steel ball bearings combined with nylon bushings and a heavy-duty spring assembly. This thoughtful engineering delivers smooth, consistent extension and retraction, reduces wobble or drift, and remains reliable after years of use in busy environments.
• Low-maintenance manual design: Operated by a simple, manual pull-down mechanism, the Model C delivers dependable performance without reliance on electricity or complex electronics. This makes maintenance straightforward and minimizes potential points of failure, which is especially valuable in venues with high traffic or limited service support.
• Built for repeated use and lasting durability: The steel case and robust internal components are engineered to withstand frequent operation, resisting wear and maintaining precise alignment over time. This makes the Model C a practical choice for institutions and facilities that require a reliable projection solution year after year.
• Clear expectation about features: The Model C does not include the Controlled Screen Return feature. This distinction means the screen returns in a traditional, straightforward manner, which some users prefer for simplicity and reduced mechanical complexity in busy environments.

Technial Details of Da-Lite Model C 84" Projection Screen

• Screen diagonal: 84 inches
• Mounting: Manual wall- or ceiling-mounted
• Operation: Manual pull-down with heavy-duty spring assembly
• Drive system: Permanently lubricated steel ball bearings with nylon bushings
• Return mechanism: Does not include Controlled Screen Return
• Case construction: Steel case designed for durability and long life

How to install Da-Lite Model C 84" Projection Screen

Installing the Model C is a straightforward process that can be completed by a qualified installer or a capable DIYer. Follow these general steps to ensure a secure, level installation with optimal projection alignment:

• Plan the mount location: Choose a location that provides unobstructed projection and adequate clearance for the screen case when extended. Verify the wall or ceiling structure can support the screen housing and brackets, especially for ceiling installations that may require additional joist support.
• Prepare mounting hardware: Use the hardware provided by Da-Lite or compatible mounting brackets designed for a wall- or ceiling-mounted manual screen. Ensure you have screws, anchors, and brackets suitable for your mounting surface and the screen’s weight.
• Attach mounting brackets: Secure the brackets to the wall studs or ceiling joists, ensuring they are perfectly level. Use a level during installation to prevent any tilt that could affect image alignment.
• Mount the screen housing: Hang the screen case on the installed brackets and confirm it sits squarely. Tighten all fasteners securely while maintaining level alignment of the housing with the screen surface.
• Test operation and alignment: Pull the screen down to test the tension, smoothness of movement, and return action. If necessary, adjust the mounting position slightly to ensure a straight, even drop and a clean retraction into the case.
• Finalize setup: Once the screen operates smoothly and is level, secure any remaining hardware, and confirm there is no interference with the casing or fabric path during extension and retraction.

Frequently asked questions

• What size is the Da-Lite Model C screen? The Model C for this product is an 84-inch diagonal projection screen.
• Is the Model C suitable for wall and ceiling mounting? Yes, it is designed for both wall- and ceiling-mounted installations to fit a variety of room layouts.
• Does the Model C require electricity? No. It is a manual screen that operates without power.
• Does it have the Controlled Screen Return feature? No. The Model C does not include the Controlled Screen Return mechanism and uses a traditional manual return.
• Is maintenance required? The design emphasizes durability with a robust spring and bearing system, which minimizes maintenance needs compared to screens with electronic components.
• Who is the ideal user? This screen is well-suited for educational institutions, corporate training spaces, conference facilities, and other venues that require a reliable, long-lasting manual projection surface for large rooms.
