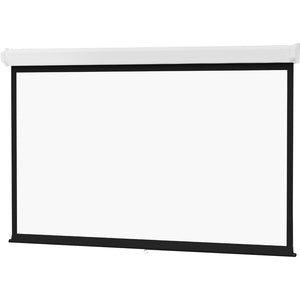

Da-Lite Model C Projection Screen with CSR – 150" Large-Format Manual Screen

Elevate your presentations with the Da-Lite Model C Projection Screen featuring CSR, a trusted solution designed for large rooms and demanding environments. This manual screen delivers a substantial 150-inch diagonal image, making it ideal for corporate conferences, educational lecture halls, and expansive training spaces. The standout CSR (Controlled Screen Return) technology guarantees a whisper-quiet, controlled return to the case, ensuring a smooth, professional reveal and retract every time. With the flexibility to mount on the ceiling or wall and a pull cord for effortless operation, the Model C with CSR combines reliability, ease of installation, and exceptional viewing quality in one robust package.

• Quiet, controlled return in large spaces: CSR technology provides a smooth, silent retraction that minimizes distractions during meetings and lectures. The screen must be fully extended when using CSR, ensuring consistent, dependable performance in high-traffic environments where interruptions can derail a presentation.
• Impressive 150-inch diagonal for immersive viewing: The expansive screen size makes it perfect for audiences in large boardrooms, training facilities, and educational settings. The generous diagonal delivers a bright, impactful image that helps your projector shine even in well-lit spaces.
• Flexible mounting options for ceiling or wall installation: The Model C CSR is designed for versatile installation, giving you the freedom to optimize sightlines and room layout. Whether ceilings or walls are preferred by your venue, this screen adapts to fit your existing infrastructure.
• Effortless manual operation with a pull cord: The included pull cord enables straightforward, user-friendly control of extension and retraction. This practical feature is especially valuable in spaces where quick setup and teardown are routine, such as classrooms and multi-purpose rooms.
• Durable design, quick installation, and reliable performance: Built to endure daily use in busy environments, the Model C CSR emphasizes sturdy construction and straightforward installation. Its simplicity reduces maintenance concerns while delivering dependable presentation quality over time.

Technical Details of Da-Lite Model C Projection Screen with CSR

• Screen diagonal: 150 inches
• Controlled Screen Return (CSR) for quiet operation
• Mounting: Ceiling or wall-mount capable
• Operation: Manual with pull cord
• Intended use: Large-format projection in large rooms or spaces requiring immersive displays
• Construction: Durable, reliable housing designed for frequent use

how to install Da-Lite Model C Projection Screen with CSR

• Prepare the installation area by locating solid structural members in the ceiling or wall where brackets can be securely anchored. Verify that the mounting surface can support the screen’s weight and the anticipated usage in a busy environment.
• Unpack the screen and inspect all components for damage or missing hardware. Gather necessary tools, such as a drill, stud finder, level, and the mounting brackets provided with the kit.
• Attach the mounting brackets to the chosen surface, ensuring proper alignment so the screen will hang plumb and roll evenly. Use a level to confirm both the horizontal and vertical alignment before tightening all fasteners.
• Secure the screen housing to the mounting brackets and verify that the assembly seats firmly. Make any required adjustments to ensure there is adequate clearance for full extension and smooth operation of the CSR mechanism.
• Unroll the screen fully to engage the CSR system. Confirm that the screen extends cleanly to its full 150-inch diagonal and that the return action is quiet and controlled as the screen retracts into the case. If necessary, fine-tune alignment to achieve perfect flatness and unobstructed projection.
• Install and route the pull cord in a convenient location for technicians or presenters. Test several extension and retraction cycles to ensure consistent performance and to validate that the CSR feature operates reliably in daily use.
• Perform a final screening test with your projector to verify image alignment, focus, and throw distance. Adjust projector placement or screen position as required to optimize viewing for the room’s seating arrangement and lighting conditions.
• Provide end users with basic operating instructions: how to extend the screen to full size and how to retract it using the pull cord. Consider labeling the cord path to prevent accidental tangling or obstruction in high-traffic rooms.
• Establish a routine maintenance plan that includes periodic inspection of brackets, fasteners, and the screen surface. Clean the screen surface according to Da-Lite’s care guidelines to preserve image quality and prolong the life of the screen material.

Frequently asked questions

• What does CSR stand for and why is it important? CSR stands for Controlled Screen Return. It provides a quiet, controlled retraction of the screen into its case, minimizing noise and movement that could disturb meetings or presentations. The CSR mechanism is designed for screens that are fully extended before the return cycle to ensure smooth operation in large spaces.
• What sizes does the Model C CSR come in? The Model C CSR is available in large-format configurations, with a 150-inch diagonal presentation size highlighted for this model. This makes it especially suitable for auditoriums, corporate spaces, and classrooms that require a substantial projection surface.
• Can I mount this screen on ceiling and wall? Yes. The Model C CSR is designed for flexible mounting, allowing both ceiling and wall installations to accommodate different room configurations and sightlines.
• Is the screen easy to install? The description emphasizes ease of installation. With the appropriate mounting hardware and clear instructions, the screen can be mounted by skilled installers or qualified personnel in most large-room environments.
• Does the CSR screen need to be fully extended to operate? Yes. CSR screens must be fully extended for the quiet return mechanism to function correctly and to maintain consistent performance over time.
• What kind of maintenance does this screen require? Routine checks of mounting hardware, frame integrity, and the pull cord’s operation are recommended. Cleaning should follow manufacturer guidelines to preserve surface quality and ensure long-term reliability.
