Da-Lite Model C CSR Projection Screen – 120" Manual Wall or Ceiling Mounted Screen

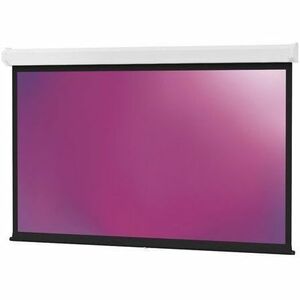

The Da-Lite Model C CSR Projection Screen combines a large-format 120-inch diagonal display with the efficiency and quiet precision of a Controlled Screen Return (CSR) mechanism. Built for demanding environments—from executive conference rooms to busy classrooms and immersive home theaters—this manual screen folds away neatly into a durable case, returning with a smooth, controlled motion that minimizes noise and disruption. Whether you choose wall or ceiling mounting, the Model C CSR delivers a premium viewing surface and a reliable, professional-grade installation that prioritizes image quality, ease of use, and long-term performance.

• Quiet, controlled screen return: The CSR mechanism ensures a smooth, near-silent retraction, so presentations stay focused and uninterrupted in any setting.
• Large-format 120" diagonal with 16:9 aspect: Designed for immersive viewing in mid-to-large rooms, delivering a bright, clear image with accurate geometry for modern widescreen content.
• Versatile mounting options: Compatible with both wall-mount and ceiling-mount installations, enabling flexible placement in classrooms, conference rooms, auditoriums, or home theaters.
• Durable construction and premium screen surface: Built to withstand frequent use in high-traffic environments, with a high-quality matte white screen for wide viewing angles and crisp image reproduction.
• Designed for ease of use and reliable performance: A straightforward manual operation paired with a robust housing makes installation and daily operation simple, with consistent results over time.

Technical Details of Da-Lite Model C CSR Projection Screen

• Screen diagonal: 120 inches
• Aspect ratio: 16:9
• Screen surface: Matte white, designed for broad ambient-light handling and accurate color reproduction
• CSR (Controlled Screen Return) mechanism: Quiet, controlled retraction for minimal disruption
• Operation: Manual pull-down with locking positions for stable image alignment
• Mounting options: Wall-mount or ceiling-mount compatibility
• Case and housing: Durable enclosure designed to protect the screen fabric and mechanics
• Finish: Black or neutral-toned housing appropriate for professional environments
• Usage environments: Suitable for conference rooms, classrooms, home theaters, and multi-purpose spaces

how to install Da-Lite Model C CSR Projection Screen

Installing the Model C CSR is a straightforward process when following the manufacturer’s guidelines for a secure wall- or ceiling-mounted setup. The steps below outline a typical installation flow for a 120" CSR screen. Always refer to the provided installation manual for model-specific details, mounting hardware, and safety considerations.

• Plan mounting location: Choose a position that places the screen at an appropriate viewing height and distance for your primary audience. Confirm ceiling or wall mounting versus a combined installation based on room layout.
• Gather tools and hardware: You’ll typically need a drill, level, stud finder, measuring tape, screwdriver, and the mounting hardware supplied with the screen. Verify that the fasteners are suitable for your wall or ceiling structure.
• Locate mounting points: Use a stud finder or structural anchors to locate secure attachment points. Mark the wall or ceiling where the screen brackets will be anchored, ensuring the bracket pattern matches the unit’s mounting plate.
• Attach mounting brackets: Securely fasten the wall or ceiling brackets to the wall studs or ceiling joists. Ensure brackets are level and aligned to prevent tilt or skew in the screen when extended.
• Mount the screen housing: With a helper, lift the CSR screen housing into place and attach it to the brackets according to the model’s mounting plate configuration. Double-check alignment before final tightening.
• Test operation: Slowly extend the screen to full height and observe the CSR mechanism releasing and retracting. Confirm that the screen locks into place at any chosen position and retracts smoothly without binding.
• Final adjustments and alignment: If necessary, adjust the trap or stop positions to ensure the viewing surface is perfectly horizontal and free of distortion. Clean any fingerprints or dust from the fabric surface.
• Harmonize with AV equipment: Connect any compatible projector, ensure the projection distance corresponds to the 120" diagonal, and calibrate color, brightness, and contrast to achieve optimal image quality.
• Safety and maintenance: Periodically inspect mounting hardware for tightness, keep the screen surface clean with recommended care methods, and follow the CSR maintenance guidelines to preserve quiet operation.

Frequently asked questions

• What is CSR and why is it important? CSR stands for Controlled Screen Return, a mechanism that provides a steady, quiet retraction of the projection screen. It minimizes noise and helps protect the fabric from abrupt or uneven movements, making it ideal for professional environments where focus and ambiance matter.
• Is the Model C CSR suitable for classrooms and conference rooms? Yes. Its 120" diagonal and 16:9 aspect ratio are well-suited to lecture, collaboration, and presentation spaces, delivering a large, comfortable viewing surface for groups.
• Can I mount the screen on the wall or ceiling? Absolutely. The Model C CSR is designed for both wall-mount and ceiling-mount installations, offering versatile placement to fit your room’s layout.
• What maintenance is required? Routine checks of mounting hardware and CSR operation are recommended. Clean the screen fabric with approved methods and avoid harsh chemicals that could degrade the surface.
• What kind of projector distance do I need for a 120" screen? Projection distance depends on your projector’s throw ratio and lens, but in typical configurations, you’ll position the projector at a distance that ensures a full-coverage, crisp image on the 120" diagonal surface. Consult your projector’s manual for exact throw specifications.
