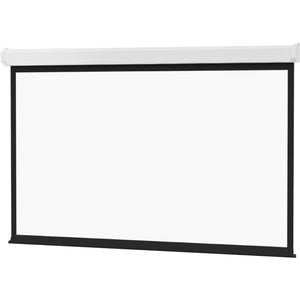

Da-Lite Model C Projection Screen with CSR - 123in

The Da-Lite Model C Projection Screen with CSR (Controlled Screen Return) delivers a premium, large-format viewing experience designed for demanding spaces. This manual screen is engineered for versatility, offering wall or ceiling mounting options to fit a wide range of room geometries. With a generous 123-inch diagonal, it provides a commanding image for conference rooms, classrooms, lecture halls, and home theaters alike. The CSR mechanism ensures a quiet, controlled return to the case, preserving the room’s ambience and reducing distractions during presentations or screenings. Optional floating mount brackets extend installation flexibility, simplifying alignment in rooms with challenging stud layouts or obstructions. Built for reliability, durability, and long-term performance, the Model C pairs solid construction with seamless operation to create a dependable projection solution that respects both budget and space constraints.

• Large-format viewing area: A 123-inch diagonal screen creates an immersive, high-impact image ideal for audiences in mid-to-large meeting spaces, auditoriums, and living rooms alike, ensuring clear visibility from across the room and ample room for data overlays, video, and multimedia content.
• CSR – Controlled Screen Return: The CSR mechanism delivers a smooth, quiet, and controlled retraction into the protective case. This feature minimizes noise and abrupt stops, helping maintain focus during presentations and protecting the screen fabric from abrupt or jerky movements that could degrade image quality over time.
• Flexible mounting options: Designed for both wall and ceiling installation, the Model C includes mounting versatility to accommodate different room architectures. For installations where studs are offset or precision is required, optional floating mount brackets provide enhanced alignment and ease of installation without sacrificing stability or performance.
• Manual operation with lasting durability: This is a user-friendly manual screen that does not rely on power or electronics, reducing maintenance needs. The robust case and fabric system are built to withstand frequent deployments in active environments, delivering consistent performance day after day.
• Premium projection fabric and professional finish: The Model C uses Da-Lite’s proven projection fabric to deliver bright, accurate image reproduction with good contrast, color fidelity, and viewing consistency across a wide viewing angle. The screen case and finish present a professional aesthetic suitable for corporate lobby areas, classrooms, or home theater spaces.

Technical Details of Da-Lite Model C Projection Screen with CSR

• Screen diagonal: 123 inches
• Projection surface: Da-Lite standard projection fabric designed for clear image reproduction across typical projection conditions
• Operation: Manual pull-down screen with CSR (Controlled Screen Return) for quiet, controlled retraction
• Mounting options: Wall-mounted or ceiling-mounted installation; includes provisions for optional floating mount brackets to accommodate stud-based installations
• Special considerations: Screens with CSR must be fully extended to ensure proper operation and to maintain smooth, regulated return into the case

How to Install Da-Lite Model C Projection Screen with CSR

• 1) Plan your installation location carefully. Determine whether a wall or ceiling mount provides the best viewing angle for your room, taking into account sightlines, ceiling height, and obstructions. If your space has irregular stud placements, prepare for the optional floating mount brackets to ensure a level, secure installation.
• 2) Locate structural anchors. Use a stud finder to identify wall studs or ceiling joists where the mounting brackets will attach. Mark the mounting points precisely to guarantee that the screen hangs evenly and operates smoothly. Confirm that there is enough clearance for the fully extended 123-inch diagonal screen and for the CSR mechanism to function without interference.
• 3) Install mounting hardware. Attach the chosen mounting brackets to the walls or ceiling according to the included hardware and the bracket manufacturer’s instructions. If using floating mount brackets, ensure they are aligned with the stud locations and level, providing a stable base for the screen case.
• 4) Hang and secure the screen case. With assistance, lift the screen into its mounting brackets and secure all fasteners firmly. Check for levelness and verify that the case sits flush against the mounting surface, allowing the fabric to deploy unobstructed during use.
• 5) Test operation and safety. Gently pull the screen down to its full extension and observe the CSR action as it retracts. Confirm that the motion is smooth and quiet, and that the screen fully returns into the case without binding. Keep the area clear during operation and ensure that no cords or loose items could interfere with the screen’s movement.
• 6) Final checks and setup. If your room has ambient light considerations, consider dimming options, blackout curtains, or wall treatments to optimize image contrast. Confirm the viewing height and throw distance align with the projector’s placement, and adjust if necessary to achieve the desired image size and focus across the 123-inch diagonal.

Frequently asked questions

• Q: What screen size is included with the Da-Lite Model C?
  A: The Model C features a 123-inch diagonal projection screen, offering a large, immersive viewing area suitable for sizable spaces and audiences.
• Q: What does CSR stand for and why is it important?
  A: CSR stands for Controlled Screen Return. It provides a quiet, controlled retraction of the screen into the case, reducing noise and preventing abrupt stops that can wear the fabric or disrupt presentations.
• Q: Can the Model C be mounted on a wall or the ceiling?
  A: Yes. The screen is designed for both wall-mounted and ceiling-mounted installations. Optional floating mount brackets are available to simplify installation in spaces with challenging stud layouts.
• Q: Do I need power to operate this screen?
  A: No. The Model C is a manual projection screen, so it does not require electrical power to deploy or retract. This makes it a reliable choice in spaces without convenient outlets or during power fluctuations.
• Q: What maintenance is required for the Model C?
  A: Routine inspection of mounting hardware for tightness, ensuring the CSR mechanism remains unobstructed, and periodic cleaning of the projection fabric with manufacturer-approved methods will help maintain image quality and smooth operation over time.
