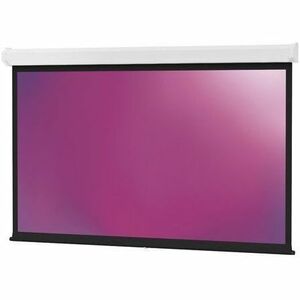

Da-Lite Model C CSR Projection Screen — 84" 4:3 Manual Wall or Ceiling Mounted

The Da-Lite Model C with CSR (Controlled Screen Return) is a robust, large-format projection screen designed for classrooms, conference rooms, and auditoriums where a quiet, reliable screen retraction is essential. This manual screen is mounted either on the wall or from the ceiling, providing flexible installation options for medium to large spaces. With an 84-inch diagonal and a 4:3 aspect ratio, it delivers a broad viewing area that preserves image clarity and brightness for engaging presentations and vivid multimedia experiences. The CSR feature ensures a controlled, silent return to the case, making it ideal for environments where noise can be a distraction and where screens need to be fully extended to perform at their best. The Model C is engineered to maximize the picture area while maintaining a compact, unobtrusive footprint, offering reliable performance for daily use in education and business settings.

• The CSR advantage: Screens with CSR must be fully extended, delivering the largest possible picture with maximum efficiency while maintaining a quiet, controlled return to the case. This makes the Model C ideal for classrooms, lecture halls, and collaborative spaces that demand minimal disruption during operation.
• Large-format, 84" diagonal 4:3 screen: The 84-inch diagonal provides a generous viewing area suited for bigger rooms and audiences. The 4:3 aspect ratio preserves classic video and presentation formats, ensuring compatibility with a wide range of content from documents and slides to older video sources, while keeping a crisp, legible image on screen.
• Versatile mounting and installation: Designed for both wall and ceiling mounting, the Model C offers flexible placement to accommodate room geometry and sightlines. Its manual pull-down operation is straightforward, enabling quick setup and reliable performance in daily use without requiring power or complex wiring.
• Durable construction and smooth operation: The screen housing is built to withstand frequent use in active spaces. The CSR mechanism delivers a smooth, controlled retraction with minimal noise, helping maintain a focused environment for teaching, meetings, and screenings. The matte white projection surface provides uniform brightness and clear image reproduction across a wide viewing angle.
• Optimized for efficiency and ease of use: The Model C CSR screen emphasizes ease of use, fast deployment, and consistent image quality. It is designed to maximize the viewer’s experience in large rooms while simplifying maintenance, reducing downtime, and supporting reliable performance over time.

Technical Details of Da-Lite Model C Series Projection Screen with CSR - Wall or Ceiling Mounted Manual Screen - 84in Screen

• Screen Diagonal: 84 inches
• Aspect Ratio: 4:3
• Projection Screen Type: Manual pull-down with CSR (Controlled Screen Return)
• Mounting Options: Wall or ceiling mounted
• Projection Surface: Matte White for balanced brightness and wide viewing angles
• Housing: Durable, quiet-return mechanism designed for frequent use

how to install Da-Lite Model C Series Projection Screen with CSR

To install the Da-Lite Model C CSR screen, begin by selecting a mounting location that provides unobstructed travel space for the screen when fully extended. Attach the mounting brackets to the wall or ceiling according to the included hardware and the weight rating of the screen. With the housing securely mounted, align the screen case so that the pull-down surface hangs plumb and square. Carefully extend the screen completely to engage the CSR mechanism, ensuring smooth and quiet operation as it retracts in and out of the case. If the ceiling mount is used, confirm that the projection surface will align with the projector’s throw distance and that there is adequate clearance above and below the screen for full travel. After installation, test the screen by fully extending it several times to verify consistent operation and image alignment. Finally, adjust any alignment or tension settings per the user manual to optimize image clarity and ensure the screen retracts cleanly back into the housing.

Frequently asked questions

• Q: What size and aspect ratio is the Da-Lite Model C CSR screen?
  A: The model described is an 84-inch diagonal screen with a 4:3 aspect ratio, optimized for large rooms where a broad viewing area is beneficial.
• Q: What does CSR mean for this screen?
  A: CSR stands for Controlled Screen Return. It provides a quiet, controlled retraction of the screen into its housing, ensuring the screen is fully extended for the best image and reducing operational noise in classrooms, conference rooms, and similar spaces.
• Q: Can the screen be mounted on either a wall or ceiling?
  A: Yes. The Model C CSR screen is designed for both wall and ceiling mounting, allowing flexible installation to fit room geometry and sightlines.
• Q: Is the projection surface suitable for varied lighting conditions?
  A: The Matte White surface is chosen for balanced brightness and wide viewing angles, offering good performance in typical classroom and conference room lighting. For very bright environments, consider complementary lighting control to optimize image clarity.
• Q: How should I maintain and operate the screen?
  A: Use the manual pull-down to extend the screen fully, then retract it slowly back into the housing. Periodically check mounting hardware for security and ensure the surface is clean with a soft, lint-free cloth. Avoid harsh chemicals that could damage the projection surface.
