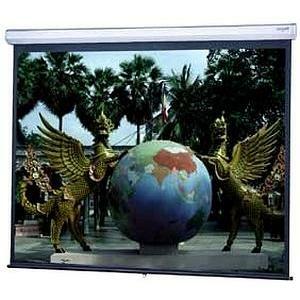

Da Lite Model C With Csr Manual Wall And Ceiling Projection Screen Mount

The Da-Lite Model C with CSR Manual Wall and Ceiling Projection Screen is a compact, space-saving solution designed to deliver crisp, dependable visuals in a variety of environments. Engineered for adaptability, this manual projection screen combines a durable enclosed housing with a precise, quiet retraction system to keep your presentation space clean, distraction-free, and ready for the next speaker. Perfect for classrooms, training rooms, conference spaces, and even home theaters, the Model C with CSR offers straightforward operation, sturdy construction, and reliable performance day after day. The CSR (Controlled Screen Return) mechanism is Da-Lite’s exclusive feature that ensures a quiet, controlled return of the screen into its case, minimizing noise and maintaining neat sightlines in lecture halls, meeting rooms, and spaces where quiet operation matters. With a simple manual pull-down design, you control the screen height precisely to match your projector and room setup, guaranteeing a sharp, correctly framed image every time. The space-efficient enclosed housing protects the viewing surface from dust and damage while preserving sightlines and contributing to a professional, uncluttered room aesthetic. This screen is engineered for wall or ceiling installation, offering flexible placement to suit a wide range of room geometries and projector configurations, and it is paired with a Matte White surface that delivers balanced brightness, accurate color reproduction, and wide viewing angles for bright, clear projections in controlled lighting environments.

• Quiet, controlled screen return (CSR): Da-Lite’s CSR mechanism delivers a smooth, silent retraction, reducing distraction and wear while keeping the viewing surface securely stowed.
• Manual pull-down operation: A simple, durable manual system with easy grip and reliable stops lets you set the exact height to align with your projector and seating layout, ensuring a correctly framed image every time.
• Space-efficient enclosed housing: The robust steel case with a durable powder-coated finish protects the screen, minimizes dust intrusion, and preserves sightlines for a clean, professional look in any room.
• Versatile wall or ceiling mounting: Flexibly designed for secure installation on either wall or ceiling, the Model C adapts to fixed or variable room layouts and projector placements.
• Premium matte white projection surface: Matte White with 1.0 gain provides balanced brightness, accurate color reproduction, and wide viewing angles across a broad seating area, ideal for classrooms, business spaces, and home theaters.

Technical Details of Da-Lite Model C With CSR Manual Wall and Ceiling Projection Screen

• Screen surface: Matte White with 1.0 gain, optimized for balanced brightness and color accuracy across a wide seating area.
• Screen type: Manual pull-down projection screen with CSR for quiet retraction.
• CSR (Controlled Screen Return): Exclusive Da-Lite mechanism that provides a smooth, quiet return of the screen into the case, reducing noise and wear.
• Housing/case: Enclosed steel construction with a durable, powder-coated finish designed to withstand frequent use and simplify maintenance.
• Mounting options: Suitable for wall or ceiling installation, offering flexible placement to meet room geometry and projector placement requirements.
• Aspect/surface options: Matte White surface provides broad viewing angles and consistent brightness; available in various diagonal sizes to fit room dimensions.
• Durability and design notes: Enclosed housing protects the screen and reduces dust exposure, contributing to long-term clarity and reduced maintenance in high-traffic spaces.

How to Install Da-Lite Model C With CSR Manual Wall and Ceiling Projection Screen

• Plan the installation by selecting a location that aligns with the projector distance and seating arrangement. Ensure the wall or ceiling surface is solid and capable of supporting the enclosure weight over time.
• Locate structural studs or use appropriate anchors for mounting. Use a level to determine a true, horizontal mounting plane to ensure the screen retracts evenly and the image is square to the audience.
• Attach the mounting brackets or hardware provided (or recommended by Da-Lite for this model) to the wall or ceiling at the marked points. Verify the brackets are secure and capable of supporting the enclosed housing.
• Secure the enclosed projection screen housing to the mounting hardware, ensuring the housing sits firmly and remains level. Double-check alignment with the projector’s throw distance to maintain proper image geometry.
• Extend the screen, lower it to the desired height, and set the stops to lock the screen at the correct position relative to the projector’s throw and seating arrangement. Clean the surface if needed before first use.
• Test the CSR mechanism by gently retracting the screen and reinforcing that the return is smooth and quiet. Make any minor height adjustments if the image appears misaligned or if there is glare from ambient light in the room.
• Calibrate the projector and seating layout for optimal brightness and clarity. Maintain the screen surface by avoiding direct contact and cleaning it with recommended materials to preserve color accuracy and texture.

Frequently asked questions

• Q: What is the CSR mechanism?
  A: CSR stands for Controlled Screen Return. It is Da-Lite’s exclusive system that ensures a quiet, smooth, and controlled retraction of the screen into its housing, minimizing noise and wear while keeping the viewing surface protected.
• Q: Is the Da-Lite Model C a motorized screen?
  A: No. The Model C is a manual pull-down projection screen. It offers straightforward operation without the need for power or remote controls, making it reliable and easy to use in any setting.
• Q: Can this screen be mounted on a ceiling?
  A: Yes. The Model C is designed for flexible mounting on either wall or ceiling to accommodate different room geometries and projector placements.
• Q: What screen surface and gain does it use?
  A: It uses a Matte White projection surface with a 1.0 gain, providing balanced brightness, accurate color reproduction, and wide viewing angles across a broad seating area.
• Q: What sizes are available?
  A: The Matte White surface is available in various diagonal sizes to fit different room dimensions and projection setups. Check the exact size options when selecting a model for your space.
