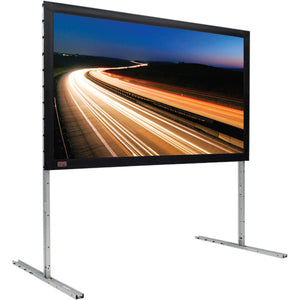

Draper FocalPoint 165" Manual Projection Screen — Modular, Rugged, Ideal for AV Rental and Meeting Rooms

The Draper FocalPoint 165" Manual Projection Screen is engineered for professional environments where reliability, ease of use, and quick deployment matter most. Designed with the AV rental market in mind, this screen delivers a crisp, uniform image from a modular frame that can be configured to suit standard and small venues such as meeting rooms, breakout spaces, and training areas. Built on Draper’s legacy of dependable projection technology, the FocalPoint provides a practical solution for organizations that require a durable, portable display without sacrificing image quality or setup speed.

• Modular frame construction for fast setup and flexible configurations. The FocalPoint uses a modular aluminum frame that accommodates a variety of room sizes and mounting options, enabling you to tailor the screen footprint to each venue without compromising stability.
• 165" diagonal with a 16:9 format for immersive, cinematic-style presentations. This large, widescreen surface is ideal for corporate demos, training sessions, and event spaces where impactful visuals matter most.
• Manual operation with secure tension and locking mechanisms. A smooth, controlled pull-down action ensures the screen remains flat and taught, reducing waviness or ripple during use and stowing compactly when not in use.
• Durable projection surface with consistent color and contrast. The screen fabric is designed to render presentations with clean whites and deep blacks, supporting crisp text, graphs, and high-contrast imagery in variable lighting conditions commonly found in conference rooms and rental venues.
• Versatile mounting and portability for rental and fixed-install environments. The modular design supports wall-mount or portable applications, making it suitable for temporary events or longer-term installations in multiple rooms with minimal reconfiguration.

Technical Details of Draper FocalPoint 165" Manual Projection Screen

• Screen diagonal: 165 inches (large-format 16:9 projection surface designed for impactful presentations and detailed visuals).
• Projection surface: Matte white fabric optimized for uniform image brightness and color fidelity, with choices available to suit different rooms and projectors.
• Aspect ratio: 16:9 standard for modern widescreen content and typical business presentations.
• Frame construction: Modular aluminum frame that enables easy assembly, configuration changes, and durable performance in rental or fixed installations.
• Operating method: Manual pull-down with locking mechanism to hold the screen in place and maintain a flat viewing surface.
• Mounting options: Suitable for wall-mount or ceiling-mount configurations; designed to integrate with standard AV rigging and room setups used in meeting spaces and event venues.
• Intended use: Optimized for standard and small venues including meeting rooms, breakout areas, training spaces, and short- to mid-term rental deployments.

How to install Draper FocalPoint 165" Manual Projection Screen

• Prepare the installation area: Verify wall or ceiling structure, clear space around the mounting location, and confirm projector alignment to target the 165" diagonal surface. Ensure you have the correct mounting hardware compatible with the modular frame.
• Assemble the modular frame: Following the provided manual, connect frame sections to create the full perimeter for the 165" surface. Tighten joints securely to ensure frame rigidity and reduce flex under use.
• Attach the projection surface: Secure the matte white projection fabric to the frame per the instructions, ensuring even tension across the entire surface to prevent sag or distortion at the edges.
• Mount the screen and align: Install the assembled screen to the wall or ceiling mount, align with the projector line, and verify vertical and horizontal alignment. Use level indicators if available to ensure precise setup.
• Test operation and tension: Pull the screen down to the viewing position, engage the locking mechanism, and check for flatness and smooth operation. Adjust tension if the surface shows any ripple when viewed from seating positions.
• Connect projector and calibrate: Calibrate projector settings for brightness, contrast, color, and keystone to ensure the image aligns with the 165" surface, delivering clear text and visuals in the room's lighting.

Frequently asked questions

• What sizes does Draper FocalPoint offer? The FocalPoint in this model provides a 165" diagonal projection surface designed for 16:9 content. Draper also offers a range of screen sizes and surfaces, including modular options, to fit different room dimensions and usage scenarios.
• Is the screen manual or motorized? This version is manual, featuring a controlled pull-down mechanism with a locking system to hold the screen flat when in use.
• What environments is it best suited for? It is optimized for standard and small venues such as meeting rooms, breakout rooms, training spaces, and AV rental deployments where quick setup, portability, and reliable performance are important.
• Can the screen be mounted on a wall or ceiling? Yes. The modular frame is designed to be compatible with wall-mount and ceiling-mount configurations to accommodate different room geometries and installation preferences.
• What kind of maintenance does it require? Routine inspection of frame joints for tightness, fabric cleanliness, and proper operation of the pull-down mechanism will help maintain clear image quality and extend the life of the screen in busy rental environments.
