Description

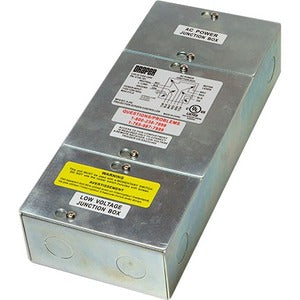

The Draper LVC-IV Low Voltage Control Module is a versatile, single-channel motor control solution designed to work with 110V or 220V motors while being driven by safe, convenient low-voltage inputs. Engineered for reliability in professional theater, conference rooms, education spaces, and home theaters, the LVC-IV lets you orchestrate powerful motorized systems with a range of control options that minimize wiring complexity and maximize integration flexibility. With its thoughtful combination of dry-contact, infrared (IR), and wireless RF capabilities, plus straightforward RS232/RS48 connectivity, this module puts precise motor control into your hands — whether you’re programming a dedicated control panel, wall switch, or a full automation system.
- Single-channel motor control for 110V or 220V systems that supports both slow, precise movement and quick, responsive operation, enabling smooth motion profiles for screens, shades, and other motorized devices.
- Low-voltage dry-contact wall switch compatibility via a 3-screw terminal block, delivering safe control without exposing high-voltage components to a wall switch or user interface.
- IR receiver jack for direct integration with standard remotes and universal remote setups, giving you the option to control Draper-powered devices from across the room with ease.
- Built-in RF receiver to enable wireless control without additional hardware, supporting quick setup in dynamic rooms where wiring is difficult or undesirable.
- Two RJ25 ports for RS232/RS48 (RS485) communication, designed to integrate the LVC-IV with existing automation systems, switches, process controllers, or rack-mount control networks.
Technical Details of Draper LVC-IV Low Voltage Control Module
- Power and motor: supports single 110V/220V motor control, suitable for common Draper motors used in projection screens and other large-format applications.
- Control inputs: accepts low-voltage dry contacts via a 3-screw terminal block for safe, easy, local control from wall switches or sensors.
- Receiving options: includes an IR receiver jack for IR remotes and a built-in RF receiver for wireless operation, enabling flexible control layouts without extensive cabling.
- Communication: two RJ25 ports for RS232/RS48 (RS485) interfaces to connect with automation controllers, PLCs, or professional AV control systems.
- Mounting and compatibility: designed for panel or wall-mount installation, compatible with a range of Draper actuation solutions and system configurations.
how to install Draper LVC-IV Low Voltage Control Module
- Power down all equipment before installation to ensure safe handling of the module and connected motors.
- Mount the LVC-IV in your preferred enclosure or on a wall or panel using appropriate hardware, ensuring adequate ventilation and access to connectors.
- Connect the low-voltage dry-contact input to the 3-screw terminal block, mapping your wall switch or sensor to the module’s control input according to your project diagram.
- Attach IR reception hardware as needed by connecting to the IR receiver jack and configuring any IR routing within your control system or remote setup.
- Connect the two RJ25 ports to your RS232/RS485 devices or automation controller, following the device-specific wiring scheme and baud rate settings.
- Set the motor voltage selection to match your installation (110V or 220V) and verify wiring for safety and compliance with local electrical codes.
- Power the system on and perform a slow, supervised test of movement to verify that the wall switch, IR remote, and RF control respond correctly and that RS232/RS485 communications are established.
- Program any macro or integration routines with your control system, ensuring that the LVC-IV’s responses align with expected timings and safety interlocks.
Frequently asked questions
- What is the primary purpose of the Draper LVC-IV? It provides single 110V/220V motor control driven by multiple low-voltage control options, enabling safe, flexible operation for Draper motors and shaded systems.
- Which control inputs does it support? The LVC-IV includes a 3-screw terminal block for a low-voltage dry contact wall switch, an IR receiver jack for infrared control, and a built-in RF receiver for wireless operation.
- How does wireless control improve installation? The integrated RF receiver eliminates many physical wires, offers quick setup, reduces clutter, and allows control from remote locations without compromising performance.
- What kinds of communications can be integrated with the LVC-IV? It provides two RJ25 ports for RS232/RS48 (RS485) communications, permitting connection to automation controllers, PLCs, and professional AV control networks.
- Is the LVC-IV compatible with all Draper motors? It is designed for typical Draper motor configurations that require 110V or 220V operation; verify motor voltage and current ratings during installation to ensure full compatibility.
- What installation considerations should I plan for? Plan for safe electrical connections, proper mounting, adequate ventilation, proper cable management for RS232/RS485 lines, and alignment of control inputs with your wall switch, IR, and RF configurations.
