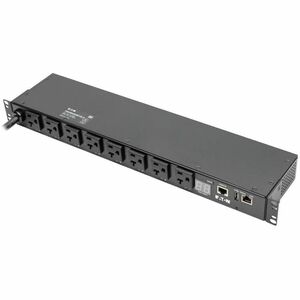

Eaton 1.9kW Single-Phase Switched PDU with LX Interface

The Eaton 1.9kW single-phase switched PDU with LX Interface is a network-grade power distribution solution designed for data centers, server rooms, and enterprise networks. This 1U rack-mounted unit distributes, monitors, and manages power to critical IT gear with precision, giving you granular control over individual outlets while delivering reliable, clean 120V power. With eight switched NEMA 5-15/20R outlets, a robust 12-foot cord, and a flexible input configuration, it’s built to support dense racks and evolving workloads while helping you optimize uptime, efficiency, and energy usage through proactive management and remote access.

• Power and control in one compact package: The Eaton PDU delivers up to 1.9 kW of fully monitored and switched power, enabling you to remotely power-cycle devices or automate load-shedding to protect critical infrastructure during spikes or maintenance windows. This level of control reduces downtime, simplifies troubleshooting, and supports proactive capacity planning across heterogeneous IT environments.
• Versatile outlet configuration for modern IT gear: Eight 120V NEMA 5-15/20R outlets provide flexible connections for servers, storage, network switches, and other rack-mounted equipment. All outlets are switch-enabled, allowing independent control and fencing of power to critical devices without affecting neighboring equipment.
• Flexible input and robust cord for data-center deployment: Input is available via NEMA L5-20P or 5-20P, paired with a 12 ft (3.66 m) cord for easy routing in dense racks or across rooms. The long cord supports diverse rack layouts and reduces the need for additional extension cords or power strips, delivering cleaner cabling and improved airflow in equipment spaces.
• Rack-ready design with trusted compliance: The 1U form factor fits standard 19-inch racks, maximizing usable rack space while maintaining robust mechanical stability. Built to the Trade Agreements Act (TAA), this PDU is suitable for government and enterprise deployments seeking compliant, ready-to-connect power distribution.
• LX interface for network-grade monitoring and management: The LX interface enables secure, remote monitoring and control of power delivery. Track energy usage, monitor outlet status, and automate routine maintenance tasks from centralized management platforms, helping optimize uptime, reduce energy waste, and support SLA-driven IT operations.

Technical Details of Eaton 1.9kW Single-Phase Switched PDU

• Power rating: 1.9 kW
• Voltage: 120 V
• Phase: Single-phase
• Outlets: 8 x NEMA 5-15/20R switched outlets
• Interface: LX interface for network-based management
• Input: NEMA L5-20P / 5-20P
• Cord length: 12 ft (3.66 m)
• Rack size: 1U
• Compliance: TAA (Trade Agreements Act)

How to install Eaton 1.9kW Switched PDU

• Plan your rack layout and ensure you have available 19-inch rack space for a secure 1U installation. Align the PDU with other rack equipment to optimize airflow and cable management, then secure it with standard rack screws to prevent movement.
• Mount the PDU in the rack bay and verify the anti-tip or stabilizing hardware is engaged. Confirm that the unit sits level and that the cord can reach the intended power source without undue tension.
• Connect the PDU’s power cord to a compatible 120V source using the NEMA L5-20P or 5-20P input. Ensure the power source is sized to handle the anticipated load and that circuit protections (breaker/fuse) are appropriate for the connected devices.
• Attach devices to the eight switched NEMA 5-15/20R outlets. Group devices by criticality and power profiles to facilitate efficient load management and protect uptime for essential equipment during maintenance windows.
• Configure the LX interface for remote monitoring and control. Set up network access, user credentials, and outlet switching policies. Establish alerts or threshold-based notifications to stay informed about power events, outages, or rising energy consumption.
• Power on the rack and verify that each outlet responds to switch commands. Use the LX interface to monitor voltage, current, and outlet status, then validate that remote management tools reflect real-time data for efficient IT operations.

Frequently asked questions

• What is a switched PDU? A switched PDU provides individual outlet control, allowing remote power cycling and load management for connected devices. This capability helps isolate failures, automate maintenance, and protect critical equipment by turning nonessential devices off during peak usage or scheduled windows.
• What does LX interface mean for this Eaton PDU? The LX interface is a network-ready management platform within the PDU that enables secure remote access, monitoring, and control over power delivery. It supports real-time metrics and outlet-level control to improve uptime and energy efficiency.
• What outlets are available on this PDU? The unit features eight switched NEMA 5-15/20R outlets, designed for 120V IT gear in data centers and server rooms. These outlets support controlled power delivery and can be managed individually through the LX interface.
• Is this PDU rack-mountable? Yes, the Eaton PDU is designed as a 1U, 19-inch rack-mount unit, making it a space-efficient solution for densely populated equipment racks.
• Is the PDU compliant with government procurement requirements? This model is TAA-compliant, making it suitable for procurement in environments that specify Trade Agreements Act compliance.
