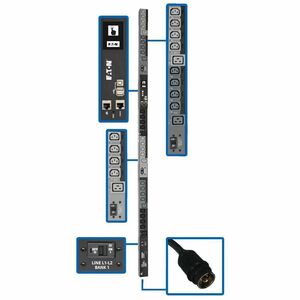

Eaton 10kW 200-240V 3-Phase Switched PDU with LX Interface

Meet the Eaton PDU3EVSR6L2130, a high-performance 10 kW, three-phase switched power distribution unit built for demanding IT and industrial environments. Designed to deliver reliable, granular control over every outlet, this LX-interface PDU enables operators to power on, power off, reboot, or lock out individual outlets from a single, secure management point. With a compact 0U footprint, a 1.8 m cord, and a Gigabit Ethernet management interface, it’s the ideal solution for data centers, edge compute deployments, telecom racks, and smart factories that require precise power orchestration, real-time monitoring, and robust uptime. The PDU’s combination of scalable power, local LCD visibility, and enterprise-grade remote management helps you reduce downtime, streamline maintenance, and optimize energy usage across your critical infrastructure.

• 3-phase operation at 200–240V with a robust 10 kW maximum load, delivering stable, scalable power to dense IT gear and industrial controllers.
• 30 switched outlets offer granular per-outlet control, enabling on/off, reboot, and lockout actions to minimize maintenance windows and maximize uptime.
• LX management interface paired with Gigabit Ethernet provides secure, scalable remote monitoring and control, giving IT teams a single pane of glass for power management across racks.
• LCD local display delivers immediate visibility of key metrics and outlet status at the rack, empowering techs to diagnose and respond quickly even without network access.
• 0U rack-mount form factor with a 1.8 m cord fits neatly into standard 19-inch racks, reducing cable clutter and optimizing space for high-density deployments; TAA-compliant for government and enterprise use.

Technical Details of Eaton 10kW 200-240V 3PH Switched PDU - LX Interface

• Model: PDU3EVSR6L2130
• Power rating: 10 kW
• Voltage: 200–240V
• Phases: 3-phase
• Input: L21-30P
• Outlets: 30 switched outlets
• Interface: LX management interface with Gigabit Ethernet
• Display: LCD
• Cord length: 1.8 m
• Mounting: 0U height
• Length: 1.8 m (cord-driven length)
• Compliance: TAA
• Applications: Data centers, IT racks, edge computing, telecom rooms, and industrial cabinets

how to install Eaton 10kW 200-240V 3PH Switched PDU

• Power down the surrounding equipment and prepare a clean workspace in or near the intended rack location.
• Mount the PDU into a standard 19-inch rack using the 0U footprint; ensure the unit is level, securely fastened, and accessible for cable management and servicing.
• Connect the L21-30P input plug to a compatible three-phase 200–240V power source equipped with appropriate breakers and wiring per local electrical codes.
• Route the 30 switched outlets to your connected devices, organizing cables to promote airflow and reduce strain on connectors; avoid overloading any single outlet group.
• Link the PDU to your network via the Gigabit Ethernet interface, configure IP and security settings, and verify per-outlet control and monitoring through the LX interface and LCD readout.

Frequently asked questions

• Q: What power configuration does this PDU support? A: It supports 3-phase operation at 200–240V with a maximum load of 10 kW for scalable, high-density deployments.
• Q: How many outlets are switched? A: The unit provides 30 switched outlets, enabling per-outlet power control for precise management during maintenance or troubleshooting.
• Q: What input plug is used? A: The PDU uses an L21-30P input plug designed for three-phase 200–240V power.
• Q: How can I monitor and manage power remotely? A: The LX interface supports secure remote management over Gigabit Ethernet, with real-time status and control from a centralized platform; the LCD offers on-site visibility.
• Q: Is this PDU suitable for government procurement? A: Yes, the unit is TAA-compliant, aligning with procurement requirements in many government and institutional environments.
