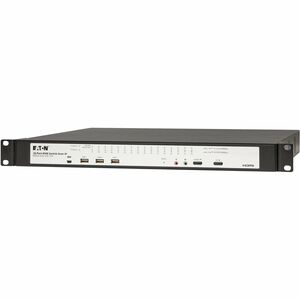

Eaton 32-Port Cat5e KVM over IP Switch with Virtual Media – BIOS-Level Remote Management, HDMI Output, 1U Rack-Mount, TAA

The Eaton NetDirector 32-Port Cat5e KVM over IP switch is the ultimate solution for centralized, BIOS-level control of up to 32 computers and servers—from anywhere in the world. Designed for data centers, server rooms, and remote offices, this high-performance KVM switch gives you secure, latched access to blade servers and traditional servers through a single console: a monitor, USB keyboard, and USB mouse. With built-in Virtual Media, HDMI output for local display, and flexible remote-user support, you can deploy, manage, and troubleshoot operating systems from a distance with minimal downtime and maximum precision. This switch is engineered to streamline IT operations, accelerate server maintenance, and reduce on-site visits, all while meeting the rigors of modern data centers with a compact 1U rack-mount form factor and TAA-compliant compliance.

• BIOS-level access to up to 32 hosts: Gain direct, BIOS/POST-level control over a broad range of servers and blade enclosures. Perform initial boot diagnostics, configure firmware, and resolve low-level issues without stepping foot on the floor—ideal for remote data centers and distributed IT environments.
• Virtual Media for remote OS deployment: Mount ISO files, drivers, and installation media remotely to any connected server. This feature enables operating system installations, firmware updates, and disaster recovery tasks without local media access, dramatically reducing deployment time and travel costs.
• HDMI output for local console reliability: A dedicated HDMI output ensures a crisp, lag-free local display of the managed systems. Pair it with a USB keyboard and mouse for effortless BIOS navigation, troubleshooting, and maintenance while the devices are accessed over IP.
• Multi-user remote access: Supports 3 remote users plus 1 local user concurrently, facilitating collaboration among IT staff and allowing separate administrators to monitor, diagnose, and remediate issues in parallel—without stepping on each other’s work.
• Compact 1U rack-mount design with Cat5e connectivity: Built for dense data centers, the switch occupies a single rack unit and leverages Cat5e cabling for flexible, cost-effective network deployment. Its rugged, enterprise-grade construction is designed to endure 24/7 operation and demanding workloads.

Technical Details of Eaton 32-Port Cat5e KVM over IP Switch - Virtual Media, 3 Remote/1 Local User, HDMI Output, 1U Rack-Mount, TAA

• Video/Console: HDMI output for reliable local display and BIOS-level troubleshooting
• Ports: 32 KVM over IP channels to manage up to 32 computers/servers
• Remote/local access: 3 remote users concurrently, 1 local console
• Media: Virtual Media for remote ISO mounting and OS deployment
• Form factor: 1U rack-mount enclosure for space-efficient data center installation
• Compliance: TAA (Trade Agreements Act) compliant
• Connection type: Cat5e network cabling for flexible deployment in existing infrastructure
• Power and environment: Designed for data center reliability with robust operation in typical server-room environments

How to install Eaton 32-Port Cat5e KVM over IP Switch – Quick Start Guide

• Plan your rack layout and determine the optimal location for the 1U switch to minimize cable runs and ensure good airflow.
• Mount the KVM over IP switch securely in a standard 19-inch rack using the included rails or hardware, ensuring alignment with your other equipment for easy access.
• Connect the managed servers to the 32 KVM ports using high-quality Cat5e or Cat6 cables. Route cables neatly to avoid blocking airflow or creating trip hazards.
• Connect the HDMI output from the switch to a local monitor that will serve as the console. Plug in a USB keyboard and USB mouse to the designated console ports or USB hub on the switch if applicable.
• Attach the switch to your management network: connect an Ethernet cable from the switch’s management port to your data center LAN or management network, ensuring proper IP addressing and network access controls.
• Power up the switch and all connected hosts. Access the management interface through the switch’s IP address using a web browser from a connected admin workstation.
• Configure administrative credentials, IP address (static or DHCP as supported), and user roles. Enable BIOS-level access, Virtual Media, and remote session policies as needed.
• Test remote access with one or more hosts: launch a remote session, verify keyboard/mouse input, confirm HDMI display output, and use Virtual Media to mount an installer or diagnostic image.
• Set up security and access controls: enable user authentication, assign permissions for remote and local users, and implement session timeouts or IP restrictions to protect critical assets.
• Document the configuration and keep a maintenance plan. Schedule periodic firmware updates, monitor performance, and rehearse failover or recovery scenarios to minimize downtime.

Frequently asked questions

• What is the maximum number of hosts supported by this KVM switch? The Eaton 32-Port Cat5e KVM over IP Switch supports up to 32 computers/servers, enabling centralized control across a wide range of devices in your data center or remote sites.
• Can I deploy OS updates remotely using Virtual Media? Yes. Virtual Media allows you to mount installation ISO images and other media remotely, enabling OS deployment, firmware updates, and diagnostics without on-site access.
• How many users can connect simultaneously? The unit supports up to 3 remote users concurrently plus 1 local user, providing flexible access for administrators and operators without contention.
• Is there HDMI support for local troubleshooting? Absolutely. The HDMI output delivers a reliable local console display for BIOS-level troubleshooting and direct interaction with the connected servers.
• Is this device compliant with trade regulations? Yes. The switch is TAA-compliant, meeting purchasing requirements for many government and enterprise environments.
• What kind of cabling is recommended? Cat5e is specified for KVM over IP connectivity in this model, with Cat6 as an option for higher bandwidth environments or longer cable runs.
• How do I secure remote access? It’s best practice to configure strong admin credentials, enable IP-based access controls, and apply role-based permissions. Regular firmware updates help protect against vulnerabilities.
