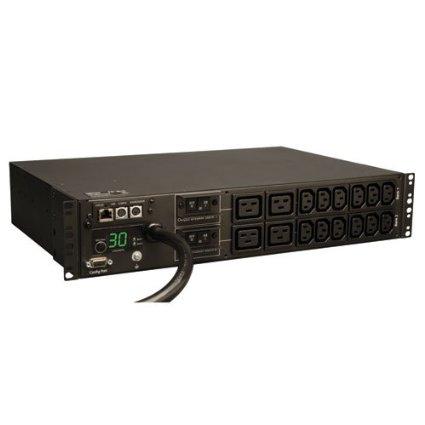

Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface

The Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface is built for data centers, server rooms, and network closets where reliability, visibility, and efficiency are non-negotiable. This advanced, single-phase power distribution unit delivers precise, real-time power monitoring and intelligent control that IT teams rely on to protect critical equipment, optimize energy use, and streamline management. With a robust LX Platform Interface, this PDU integrates seamlessly into modern DCIM ecosystems, enabling proactive monitoring, rapid fault isolation, and scalable power distribution across dense racks. Engineered for 208/230V environments, it supports a versatile mix of high-density devices while maintaining clean, organized cabling and simplified administration. Whether you’re deploying new gear, consolidating existing hardware, or building out a larger, monitored power strategy, this Eaton PDU is designed to deliver dependable power, actionable insights, and a path toward lower total cost of ownership.

• Real-time power monitoring and LX Platform Interface: Track voltage, current, and load trends per outlet, plus overall rack power usage. The LX Platform Interface delivers centralized visibility, configurable alerts, and actionable analytics that help prevent overloads, identify inefficiencies, and support capacity planning. Designed for IT teams that require proactive maintenance, this feature enables remote monitoring, scalable dashboards, and easy integration with existing DCIM workflows.
• Flexible outlet configuration for mixed equipment: The PDU provides 12 IEC C13 outlets and 4 IEC C19 outlets, accommodating a broad range of servers, storage, and networking gear. With 208/230V single-phase output, this arrangement supports high-density deployments while keeping individual devices powered through a single, organized Power Distribution Unit. This flexible configuration helps you consolidate power strips and simplify cable management in crowded racks.
• Compact 2U footprint for dense racks: Measuring only 2U in height, this monitored PDU is purpose-built for data centers and network closets where space is at a premium. The slim profile allows you to maximize rack density without sacrificing access to outlets, monitoring ports, or serviceability. Its sturdy construction and robust cabling geometry support steady operation in demanding environments.
• Reliable power with a heavy-duty, IT-grade build: The PDU features a 12 ft (3.66 m) cord and an L6-30P input plug, designed for high-current, dedicated circuits. This configuration ensures stable delivery of up to 5.5 kW of power, even during surges or temporary load spikes. The unit is built to withstand the rigors of data centers, server rooms, and network closets, while supporting long-term reliability and uptime.
• Easy installation and seamless data-center integration: Designed for straightforward mounting in 2U racks, with plug-and-play power connections and LX-based monitoring setup. It integrates with existing IT infrastructure and DCIM tools for simplified provisioning, alerting, and energy analytics. The combination of a familiar rack-mount form factor and advanced monitoring capabilities makes it an ideal backbone for growing facilities seeking scalable, centralized power management.

Technical Details of Eaton 5.5kW Single-Phase Monitored PDU

• Model: Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface
• Power capacity: 5.5 kW total power delivery
• Voltage: 208/230 VAC, single-phase operation
• Output outlets: 12 x IEC C13 outlets and 4 x IEC C19 outlets
• Input plug: L6-30P with 12 ft (3.66 m) cord
• Form factor: 2U rack-mount design
• Monitoring: Built-in LX Platform Interface for remote monitoring, analytics, and alerting
• Connectivity: Supports integration with DCIM and IT management tools via LX platform
• Compliance: TAA-compliant

How to install Eaton 5.5kW Single-Phase Monitored PDU

Installing the Eaton 5.5kW Monitored PDU is straightforward and designed to minimize rack downtime. Begin by selecting a suitable 2U rack space with adequate clearance for cabling and access to outlets. Ensure the installation area is clean, dry, and free from vibration or excessive dust. Before mounting, verify that your facility provides a dedicated 208/230V circuit capable of sustaining the PDU’s power requirements. The L6-30P input plug should be connected to the corresponding 30A receptacle using the included 12 ft cord, ensuring a secure, strain-relief connection to prevent accidental unplugging or damage to the cord.

Mount the PDU into the rack using standard rear-mount or front-m mount hardware designed for 2U devices. Once secured, route the two legs of the rack-mount gear to maintain clear airflow and minimize cable clutter. Connect your IT equipment to the 12 C13 and 4 C19 outlets, spreading power across devices to achieve balanced loading and reduce the risk of overload on a single outlet string. Document outlet usage and label per-outlet assignments for quick troubleshooting and future upgrades. After physical installation, power on the PDU and verify that all outlets are delivering power to connected devices.

With the LX Platform Interface, establish network connectivity to enable remote monitoring. Use the LX dashboard to configure alert thresholds, create email or platform-based notifications for overloads or faults, and set up power-usage reporting intervals. Map outlet-level consumption to your asset inventory, enabling accurate chargeback, capacity planning, and energy analytics. If you’re integrating with DCIM or IT service management tools, use the LX interface’s API endpoints or built-in integrations to streamline data flows, automate documentation, and support proactive maintenance. Finally, perform a quick test by loading representative devices and validating monitoring data in real time, ensuring that voltage, current, and power readings align with expectations for your environment.

Maintenance is straightforward: inspect the cord and plug periodically for wear, keep outlets free from dust and debris, and verify that alerting rules remain aligned with evolving device footprints. Regularly review energy dashboards to identify opportunities for efficiency improvements, such as consolidating underutilized devices onto fewer PDUs or redistributing workloads to prevent sustained high-load conditions. With proper installation and ongoing monitoring, the Eaton PDU delivers reliable power distribution plus actionable insights that help maximize uptime and optimize energy use across your IT infrastructure.

Frequently asked questions

• Q: What voltage does this PDU support?

  A: The Eaton 5.5kW Monitored PDU supports 208/230 VAC, providing single-phase power suitable for most data center and IT environments.

• Q: How many outlets are available and what types?

  A: It provides 12 IEC C13 outlets and 4 IEC C19 outlets, offering flexible power distribution for a mix of servers, storage, and networking equipment.

• Q: What is the input configuration?

  A: The PDU uses a 30A, L6-30P input plug and comes with a 12 ft (3.66 m) cord, enabling a dedicated high-current connection to a suitable circuit in your rack room.

• Q: What management capabilities does the LX Platform Interface provide?

  A: The LX Platform Interface enables remote monitoring, power analytics, threshold-based alerting, and integration with DCIM or ITSM tools. It helps you track usage, forecast capacity needs, and respond quickly to potential outages.

• Q: Is this PDU compliant with industry standards and regulations?

  A: Yes. The unit is TAA-compliant, making it suitable for government procurement and other regulated environments that require statutory trade agreement compliance.

• Q: How can I optimize energy usage with this PDU?

  A: Use the LX Platform Interface to monitor per-outlet usage, identify overloaded circuits, and implement balanced power distribution across outlets. Regularly reviewing dashboards and alerts helps reduce waste and improve data-center efficiency.
