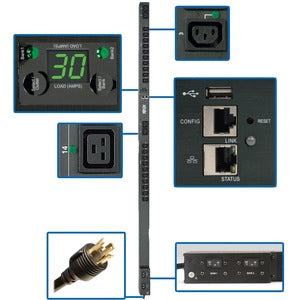

Eaton 5.5kW Single-Phase Switched PDU with Outlet Monitoring – 208/230V, 24 Outlets (20 C13, 4 C19), 0U, LX Interface, TAA

Engineered for mission-critical IT and industrial environments, this Eaton switched PDU puts you in command of power distribution with precise outlet control, real-time monitoring, and secure remote management. Designed to save rack space while delivering scalable, reliable power to critical devices, it’s ideal for data centers, edge computing, telecom rooms, and manufacturing floors. With outlet-level management and comprehensive monitoring, this PDU helps optimize uptime, reduce downtime, and simplify power provisioning across mixed workloads and harsh environments.

• Powerful 5.5 kW single-phase switched PDU with 24 outlets (20 C13 and 4 C19) to support a broad array of rack-mount equipment, from servers to network gear and storage arrays.
• Network-ready with LX interface for remote power management and outlet control, enabling on/off, reboot, or lockout actions for each outlet from a centralized dashboard or automation platform.
• 0U rack-mount design delivers robust power distribution without sacrificing valuable rack space, making it perfect for dense IT cabinets and compact edge deployments.
• Outlet monitoring and visibility provide real-time status, load data, and alerts to help prevent overloads, plan capacity, and respond quickly to changing workloads.
• TA A-compliant and versatile for IT, industrial, and government procurement, offering enterprise-grade reliability and compatibility with data-center ecosystems and service providers.

Technical Details of Eaton 5.5kW Single-Phase Switched PDU

• Model: PDUMVR30HVNETLX
• Power rating: 5/5.8 kW (single-phase)
• Input/Voltage: 208/230 V AC
• Outlets: 24 switched outlets (20 x C13, 4 x C19)
• Mounting: 0U rack-mount
• Interface: LX interface for network management and remote control
• Monitoring: Outlet-level monitoring with status feedback and event visibility
• Power control: Individual outlet on/off, reboot, and lockout capabilities
• Compliance: TAA-compliant
• Applications: Suitable for IT racks, data centers, edge sites, telecom rooms, and industrial environments

How to install Eaton 5.5kW Single-Phase Switched PDU

• Prepare a standard 19" equipment rack with suitable clearance and verify that the rack has 0U space available for the PDUMVR30HVNETLX installation. Confirm that the rack can support the weight and the electrical load of the PDU and connected devices.
• Mount the PDU using the included hardware, securing it to the rack rails at the appropriate height. Ensure the unit is level and firmly fastened to prevent movement during operation or maintenance.
• Connect the PDU to a dedicated 208/230V power circuit with appropriate overcurrent protection. Verify that the circuit rating aligns with the PDU’s power draw and that protection devices (breaker or fuse) meet local electrical codes.
• Connect the LX interface to your management network using the provided Ethernet connection. Power on the PDU and verify network connectivity and reachability from your IT monitoring tools or management console.
• Configure per-outlet policies via the built-in web interface or compatible management software. Set on/off, reboot, or lockout rules for individual outlets, enable outlet monitoring, and establish alert preferences for proactive management.
• Test the setup by issuing remote commands to select outlets (turn on/off, reboot) and confirm accurate status reporting on the management dashboard. Validate that monitoring data and alerts are flowing correctly to your operational workflows.

Frequently asked questions

• Q: What is the power rating of this Eaton PDU?
• A: It is a 5.5 kW single-phase switched PDU with a specification range listed as 5/5.8 kW in product data, designed to support a broad spectrum of equipment in IT and industrial environments.
• Q: How many outlets does it provide and what outlet types are included?
• A: The unit provides 24 switched outlets in total: 20 C13 outlets and 4 C19 outlets, enabling flexible power distribution for mixed devices.
• Q: What voltages does the PDU support?
• A: The PDU distributes power at 208/230V AC for single-phase networks, aligning with common data center power architectures.
• Q: Can I control each outlet remotely?
• A: Yes. Each outlet can be controlled individually for on/off, reboot, and lockout operations, giving you fine-grained control over connected equipment to improve uptime and security.
• Q: Does the PDU offer outlet monitoring?
• A: Yes. Outlet monitoring provides real-time status and load information, helping operators monitor capacity, identify issues early, and trigger alerts when thresholds are exceeded.
• Q: Is this Eaton PDU compliant with government procurement rules?
• A: Yes, the model is TAA-compliant, making it suitable for procurement by government agencies and institutions.
• Q: What level of remote management is available?
• A: The LX interface enables remote power management and monitoring across racks and sites, supporting centralized control and integration with existing IT management ecosystems.
