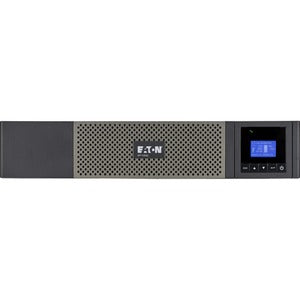

Eaton 5P 1000VA 120V Line-Interactive UPS with 10x 5-15R Outlets

The Eaton 5P 1000VA UPS is a rugged, space-saving power protection solution designed for network closets, small data centers, and growing IT environments. This 2U rack-mount line-interactive UPS delivers true sine wave power at 120V, ensuring clean, stable energy for critical devices like servers, VoIP phones, storage units, and PoE switches. With a compact 16-inch depth and a robust 1000VA/770W capacity, it provides reliable battery backup when the utility grid falters, helping to safeguard uptime, data integrity, and business continuity.

• Power capacity and reliability: With 1000VA/770W rating, the Eaton 5P delivers dependable battery backup for essential networking gear and small-to-midscale workloads. Its line-interactive topology offers automatic voltage regulation (AVR) to correct minor power fluctuations without engaging the battery, extending run time for critical devices and reducing wear on connected equipment.
• Rack-mount form factor and outlets: This model is built for standard 19-inch racks, occupying 2U of space and featuring a generous 16-inch depth. It includes 10 rear 5-15R outlets to protect multiple devices in your rack, from servers and switches to NAS units and VoIP systems, while a single 5-15P input plug keeps installation straightforward in most North American power environments.
• Power quality for mission-critical equipment: True sine wave output ensures peak performance and compatibility with active components, power supplies with active PFC, and sensitive networking gear. The UPS begins delivering clean, steady power the moment the mains falter, preventing abrupt shutdowns, corrupted data, and hardware stress that can occur with stepped or square-wave alternatives.
• Security, management, and cybersecurity option: The Eaton 5P offers an optional Cybersecure Network Card for remote management and secure event logging. This capability enables centralized monitoring, alerting, and graceful shutdown orchestration from a network management station, helping IT teams respond quickly to outages and perform proactive power management in distributed environments.
• Ideal applications and platform protection: Engineered for network closets and small data centers, the 5P protects critical components such as servers, storage appliances, VoIP phones, data storage solutions, and PoE switches. Its design supports growing IT stacks, providing scalable backup and ensuring business continuity even as demand expands or workloads increase.

Technical Details of Eaton 5P 1000VA 120V Line-Interactive UPS

• Model and rating: Eaton 5P, 1000VA / 770W, 120V output.
• Topology: Line-Interactive UPS with AVR to handle voltage fluctuations and maintain stable output.
• Output waveform: True sine wave, suitable for sensitive electronics and power-hungry devices with active power factor correction.
• Input/output configuration: 1x 5-15P input plug; 10x 5-15R outlets for protected devices.
• Rack compatibility: 2U rack-mount unit with a 16-inch depth, designed for standard 19-inch racks.
• Management option: Optional Cybersecure Network Card for remote monitoring, event logging, and secure administration over the network.
• Targeted use: Built to safeguard servers, VoIP, data storage, switches, and other critical networking components in small data centers and network closets.
• Backup purpose: Battery backup to bridge short outages, prevent data loss, and support orderly shutdowns when power is interrupted.

How to Install Eaton 5P 1000VA 120V Line-Interactive UPS

• Prepare the rack: Identify a stable, well-ventilated rack location with adequate clearance for airflow and cable management. Ensure the rack can accommodate a 2U device with a 16-inch depth.
• Mount the UPS: Install the 2U Eaton 5P in the rack using appropriate rails or mounting hardware. Secure the unit with screws to prevent movement during operation and in transit.
• Power connections: Connect the UPS input plug (5-15P) to a dedicated 120V outlet with sufficient capacity for the 770W draw. Avoid daisy-chaining from other power strips to preserve isolation and reliability.
• Load connections: Plan protected loads and distribute devices across the 10 outlets (5-15R) to balance power and provide room for expansion. Keep high-draw devices within the UPS rating to maximize run-time and reduce overheating risk.
• Network card (optional): If you have the Cybersecure Network Card, install it according to the product manual, connect the UPS to your network, and configure management credentials. This enables secure remote monitoring and alerting for outages, battery health, and load trends.
• Initial power-on and configuration: Turn on the UPS, verify that the UPS immediately provides green status indicators, and configure basic parameters such as notification methods, shutdown scripts, and alert thresholds through the management interface or included software.
• Testing and verification: Simulate a brief outage to confirm graceful shutdowns, battery performance, and alert delivery. Ensure all critical devices remain protected during power events and that the management tool logs events for audit purposes.
• Maintenance planning: Regularly test battery health according to Eaton recommendations, schedule firmware updates for the management card when applicable, and review power reports to optimize capacity planning for growing IT workloads.

Frequently asked questions

• What does 1000VA/770W mean for my equipment? The rating indicates the maximum apparent power (VA) and real power (W) that the UPS can supply to connected devices. Heavier, power-hungry equipment may approach the limit quickly, so plan loads to stay within the 770W real-power capacity to ensure adequate backup time and headroom during outages.
• Is the output truly a sine wave? Yes. The Eaton 5P delivers true sine wave output, which is ideal for sensitive IT equipment and devices with active power factor correction, ensuring stable voltage and smooth operation during power transitions.
• What does the Cybersecure Network Card do? The optional network card enables secure remote monitoring and management. IT teams can view status, receive alerts, perform graceful shutdowns, and maintain power-related logs from a centralized interface, enhancing incident response and compliance.
• Can this UPS protect multiple devices? Absolutely. With 10x 5-15R outlets, you can protect servers, storage, switches, VoIP endpoints, and other essential equipment in a single rack. Distribute loads to balance power and preserve run-time for critical components.
• Is it compatible with standard 19-inch racks? Yes. The unit is designed for standard 2U rack mounting and a 16-inch depth, making it suitable for most 19-inch racks used in data centers, server rooms, and network closets.
• How do I perform routine maintenance? Regularly test battery health, verify software or firmware for the management card, and review power-event logs to anticipate failures before they impact operations. Schedule battery replacement per Eaton guidelines to maintain backup reliability.
