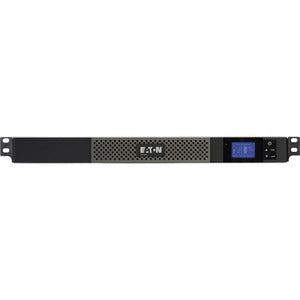

Eaton 5P 1000VA 120V Line-Interactive UPS with True Sine Wave — 5x 5-15R, 1U Rack-Mount, Optional Cybersecure Network Card

Protect essential networking gear, servers, VoIP phones, storage, and PoE switches in small data centers and network closets with the Eaton 5P 1000VA UPS. Designed for compact spaces, this 1U rack-mount line-interactive power protection system delivers reliable battery backup, clean power, and scalable network management options. With true sine wave output, AVR (automatic voltage regulation), and a flexible outlet configuration, the Eaton 5P keeps critical equipment online during outages and utility fluctuations, helping to minimize downtime, data loss, and the costs associated with power interruptions.

• Compact 1U rack-mount design fits seamlessly into standard 19-inch racks, maximizing space in network closets and small data centers while delivering dependable power protection.
• True sine wave output preserves the performance and longevity of sensitive devices, including servers, NAS, VoIP systems, and PoE switches, by delivering clean, stable power under all load conditions.
• Line-interactive topology with automatic voltage regulation (AVR) maintains output within acceptable limits during brownouts and minor surges, reducing wear on equipment and avoiding unnecessary shutdowns.
• Five NEMA 5-15R outlets (5x 5-15R) provide flexible distribution for essential gear, paired with a single 5-15P input for straightforward, common-wall power connections.
• Optional Cybersecure Network Card supports secure remote monitoring and management, enabling integration with IT security tools and centralized uptime visibility for proactive protection.

Technical Details of Eaton 5P 1000VA UPS

• Capacity: 1000 VA / 770 W
• Output waveform: True sine wave
• Input voltage: 120 VAC nominal (60 Hz)
• Output voltage: 120 VAC
• Form factor: 1U rack-mount
• Outlets: 5 x NEMA 5-15R (surge-protected connections)
• Input connector: NEMA 5-15P
• Battery: Rechargeable sealed lead-acid (VRLA); user-replaceable
• Management: Optional Cybersecure Network Card for secure remote management
• Protection: Surge suppression on outlets; AVR engages to compensate voltage fluctuations
• Applications: Ideal for network closets, small data centers, edge deployments, and healthcare/education environments requiring dependable uptime

How to Install Eaton 5P 1000VA UPS

Preparing for installation begins with planning a space that allows for proper airflow and accessibility. Mount the unit in a standard 19-inch equipment rack, using the supplied rails and hardware to secure the 1U chassis. Position the UPS in a location that is easily reachable for maintenance and battery replacement, while ensuring adequate clearance for cooling and cable management.

Power connections are straightforward: plug the included power cord (NEMA 5-15P) into a properly grounded 120V outlet, and connect the equipment you want protected to the 5-15R outlets. For devices with high startup currents or PoE devices, distribute loads across multiple outlets to optimize protection and battery runtime during an outage.

If you purchased the optional Cybersecure Network Card, install it in the designated management slot on the UPS chassis following the user guide. This card enables secure remote monitoring and management, allowing centralized visibility into uptime, battery status, and event logs. After wiring, power on the UPS and check that it recognizes the connected devices and reports a healthy status.

Finally, perform a basic test to verify operation: simulate a power interruption and observe the UPS response. Ensure that critical equipment maintains power or initiates a safe shutdown as configured. Regularly test the unit and replace the battery per Eaton’s maintenance recommendations to preserve runtime and protection levels.

Frequently asked questions

• Q: What equipment can the Eaton 5P protect?

  A: It protects essential networking gear and IT equipment such as servers, NAS storage, VoIP phones, and PoE switches from power outages, surges, and sags, helping to maintain uptime and data integrity.

• Q: Is the output true sine wave?

  A: Yes. The Eaton 5P provides true sine-wave output to deliver clean, stable power to sensitive devices, even during transition events.

• Q: Does it support a network management card?

  A: Yes. An optional Cybersecure Network Card is available to enable secure remote monitoring and centralized power management.

• Q: How many outlets does it have?

  A: It features five NEMA 5-15R outlets for protected devices and a single NEMA 5-15P input for power supply.

• Q: How long will it run during an outage?

  A: Runtime depends on the load and battery health. The unit is designed to provide sufficient backup to gracefully shut down critical systems or continue essential operations during short outages.
