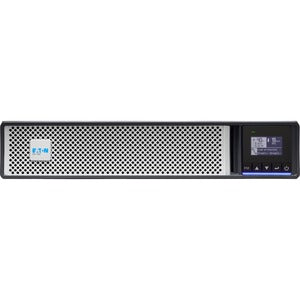

Eaton 5PX G2 1500VA 208V Line-Interactive UPS - 8 C13 Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower - Battery Backup

The Eaton 5PX G2 1500VA 208V Line-Interactive UPS is engineered for reliability where power quality matters most. Perfect for distributed IT, telecom, or enterprise deployments, this 2U rack/tower UPS combines robust protection with smart features designed to keep critical equipment online when the power goes out. With 208V input/output, eight IEC C13 outlets, and an optional Cybersecure Network Card, the 5PX G2 delivers clean, stable power to servers, storage devices, switches, and network infrastructure—minimizing data loss, downtime, and hardware wear caused by voltage fluctuations, surges, and outages. The extended run capability makes it a resilient choice for edge environments and remote sites where steady uptime is non-negotiable.

• Reliable line-interactive protection with AVR: The 5PX G2 maintains consistent output voltage through Automatic Voltage Regulation, reducing the impact of brownouts and surges on sensitive equipment. This intelligent regulation helps preserve battery life while delivering clean power to connected devices, which translates into longer hardware life, fewer unexpected reboots, and safer, faster recovery after an outage.
• High-capacity power in a compact form: With a 1500VA / 1500W rating and 208V compatibility, this UPS is built to support multiple critical devices in distributed IT environments. It provides enough power for essential servers, storage, routers, and network gear, allowing you to gracefully shut down workloads and protect data during disturbances without resorting to oversized solutions.
• Flexible deployment with 2U rack/tower versatility and 8 C13 outlets: Its space-saving 2U footprint fits neatly into existing racks while offering the convenience of a tower layout when space is limited. Eight IEC C13 outlets give you ample protected sockets for core components, with the ability to organize cables and prioritize mission-critical equipment for uninterrupted operation.
• Optional Cybersecure Network Card and Extended Run capabilities: The Cybersecure Network Card enables secure remote monitoring and management—perfect for network administrators who need visibility, alerting, and controlled shutdown from anywhere on the network. When extended runtime is required, add an external battery module (EBM) to lengthen outage protection for essential workloads or remote sites where power reliability is a challenge.
• Energy-aware management with software integration: The 5PX G2 supports Eaton’s energy-saving features and PowerChute Network Shutdown compatibility, helping you orchestrate safe server shutdowns, monitor energy use, and reduce operational costs. The built-in LCD provides at-a-glance status, including load, input/output voltage, battery health, and estimated runtime—empowering proactive maintenance and optimization.

Technical Details of Eaton 5PX G2 1500VA 208V

• Model: Eaton 5PX G2 1500VA
• Capacity: 1500 VA / 1500 W
• Input Voltage: 208 V AC
• Output Voltage: 208 V AC (adjustable within the unit’s settings)
• Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
• Outlets: 8 IEC C13 sockets
• Form Factor: 2U rack/tower
• Battery Type: Sealed lead-acid (VRLA)
• Communication: USB and serial ports; optional Cybersecure Network Card for network management
• Runtime and Expandability: Runtime varies by load; extended run available via external battery module (EBM)
• Energy Management: Supports EcoMode, PowerChute Network Shutdown, and safe-power-off automation
• Certifications and Compliance: UL 1778, CE, RoHS-compliant (regionally dependent)

how to install Eaton 5PX G2 1500VA 208V Line-Interactive UPS

• Choose a stable installation site in a well-ventilated area. If mounting in a rack, install the UPS in a 19-inch rack with proper rail hardware, ensuring access for the LCD display and cabling.
• Place the unit in your rack or as a tower on a flat, level surface. Allow sufficient clearance for cooling airflow and cable management.
• Connect the UPS to a correctly grounded 208V power source. Use appropriate power cables and avoid daisy-chaining into other power devices to maintain clean, isolated protection for connected equipment.
• Plug critical devices into the eight IEC C13 outlets, reserving non-critical devices for non-UPS outlets if available. Do not exceed the rated capacity; plan for head-room to handle startup surges from servers and storage gear.
• Optionally install the Cybersecure Network Card and connect the management interface to your network. Configure IP addressing and security settings via the LCD or PowerChute Network Shutdown software to enable remote monitoring, alerting, and controlled shutdowns.
• Power on the UPS, run a self-test to verify operation, and customize settings such as Alarm thresholds, Transfer Voltage, and EcoMode preferences. If you are adding an Extended Battery Module (EBM), connect it per the manufacturer’s guidance and test the extended runtime scenario.
• Integrate with your IT stack: install PowerChute or PowerChute Network Shutdown on supported servers, set up graceful shutdown routines, and enable alerting for battery status, overload, and other critical events to maintain uptime and data integrity.

Frequently asked questions

• Q: What does Extended Run mean, and how do I extend runtime? A: Extended Run refers to optional external battery modules (EBMs) that increase available runtime during outages. Connecting an EBM provides longer protection for essential workloads when the main battery is depleted or during extended outages.
• Q: How many outlets does this UPS provide, and what outlets are they? A: The unit includes eight IEC C13 outlets, designed to protect critical IT devices such as servers, network gear, and storage while allowing for strategic distribution of loads.
• Q: Is the Network Card included or optional? A: The Cybersecure Network Card is an optional accessory, enabling secure remote management, authentication, and advanced monitoring over the network. It is not included by default.
• Q: Can I use this UPS in a 208V data-center environment? A: Yes. The Eaton 5PX G2 is specifically designed for 208V input/output configurations, making it well-suited for edge deployments and distributed IT in 208V infrastructure.
• Q: What software works with this UPS? A: Eaton’s PowerChute family (including PowerChute Network Shutdown) integrates with this UPS for safe shutdowns, automated alerts, and energy-management insights. LCD status and unit-level diagnostics also provide real-time visibility.
• Q: What is the expected maintenance and warranty coverage? A: Warranty coverage varies by region and model configuration. Refer to the regional Eaton documentation for exact terms and any available extensions. Battery life and performance are dependent on usage, environment, and maintenance practices.
