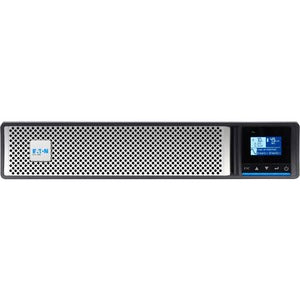

Eaton 5PX G2 1950VA 1950W 120V Line-Interactive UPS — 2U Rack/Tower, 6 NEMA 5-20R + 1 L5-20R, Extended Run, Cybersecure Network Card Option

Protect your distributed IT, telecom, and enterprise infrastructure with a compact, rugged, and highly scalable UPS that delivers reliable battery backup and superior power conditioning. The Eaton 5PX G2 1950VA UPS is designed for critical workloads and demanding environments, offering line-interactive protection against blackouts, brownouts, surges, and noisy mains. Built for 2U rack mounting or standalone tower deployment, this unit keeps servers, storage devices, network gear, and networking appliances operating smoothly during power disturbances while minimizing the risk of data loss and hardware damage. With an emphasis on efficiency, reliability, and easy manageability, the 5PX G2 is a trusted backbone for data centers, edge deployments, and distributed IT closets where uptime matters most.

• High-efficiency line-interactive protection: The 5PX G2 uses a line-interactive topology that balances power conditioning with battery autonomy, delivering clean, regulated 120V output while maximizing energy efficiency and reducing running costs.
• Rich outlet configuration for diverse deployments: Outlets include 6 NEMA 5-20R and 1 L5-20R, giving you flexible attachment points for servers, switches, storage, and network devices without compromising battery backup during critical events.
• Cybersecure management options: An optional Cybersecure Network Card supports secure remote management and monitoring, enabling smart, protected access to status, alarms, and shutdown commands from anywhere on your network.
• Extended Run and modular maintainability: The 5PX G2 supports extended runtime configurations to lengthen outage coverage, and its hot-swappable batteries simplify maintenance without taking critical equipment offline.
• Versatile form factor for rack or tower deployments: With a 2U rack/tower design, it fits neatly into standard data center racks or can sit on a stable ground or shelf, making it ideal for both new builds and retrofits in constrained spaces.

Technical Details of Eaton 5PX G2 1950VA 1950W 120V Line-Interactive UPS

• Model: Eaton 5PX G2
• Capacity: 1950VA / 1950W
• Output voltage: 120V nominal
• Input voltage: 120V nominal (single-phase)
• Topology: Line-Interactive
• Outlets: 6 x NEMA 5-20R plus 1 x L5-20R
• Form factor: 2U rack or tower
• Battery type: VRLA sealed lead-acid (hot-swappable for easy maintenance)
• Battery runtime: Supports Extended Run configurations with optional battery packs
• Networking options: Optional Cybersecure Network Card for secure remote management
• Communications: USB and serial connectivity for local management and compatibility with Eaton software
• Management and monitoring: Compatible with Eaton’s power management software and thermal/load monitoring tools
• Protection features: Lag, surge protection, voltage regulation, and battery-backed outage protection

how to install Eaton 5PX G2

• Prepare the installation space: Ensure a clean, ventilated area with adequate clearance around the unit for cooling and serviceability. If mounting in a rack, plan for a 2U allocation and secure the unit with standard rack rails or cage nuts.
• Mount or position the UPS: Install the UPS in a compatible 19" rack or place it on a stable surface as a tower. Verify that the orientation and airflow direction comply with the manufacturer’s recommendations to prevent overheating.
• Connect to power and loads: Plug the UPS into a dedicated 120V power outlet. Distribute critical devices to the six NEMA 5-20R outlets and reserve the L5-20R outlet for essential components or higher-demand devices as needed. Avoid daisy-chaining through power strips to maximize protection and performance.
• Attach the network card (optional): If you’re using the Cybersecure Network Card, install it according to the included instructions and connect the card to your secure network. This enables remote monitoring, alerting, and controlled shutdowns during outages.
• Connect management interfaces: Attach USB or serial cables to the management port for local configuration. Install Eaton power management software on your servers or workstations to monitor runtime, load levels, alarms, and battery health.
• Power up and configure: Turn on the UPS, configure runtime, alert thresholds, auto-shutdown rules, and notification emails. Use the LCD interface or software to tailor settings for your environment, including voltage sensitivity, surge protection, and battery test schedules.
• Test before production: Run a controlled test by simulating a momentary outage. Verify that protected devices stay on battery as expected and that unattended shutdowns occur gracefully according to policy.

Frequently asked questions

• Q: What is the primary purpose of the Eaton 5PX G2? A: The primary purpose is to provide reliable power backup and active power conditioning for critical IT equipment, protecting hardware and data from outages, brownouts, surges, and line noise while enabling graceful shutdowns and reduced risk of data loss.
• Q: How many outlets does it have and what types? A: It features 6 NEMA 5-20R outlets and 1 NEMA L5-20R outlet, offering flexible distribution for servers, switches, storage devices, and network devices in a mixed-load environment.
• Q: Is there an optional network card? A: Yes, the Eaton 5PX G2 supports an optional Cybersecure Network Card for secure remote management and monitoring over the network.
• Q: Can I extend the runtime? A: Yes. The unit supports Extended Run configurations with external battery packs to lengthen uptime during extended outages, depending on load and battery configuration.
• Q: Is it rack-mountable? A: Absolutely. The 5PX G2 is designed as a 2U rack-mountable unit that can also be deployed as a standalone tower for non-rack environments.
• Q: How do I install and configure? A: Mount the UPS, connect power and outlets, attach the optional network card if used, connect your management interfaces (USB/serial), and configure via the LCD panel or Eaton software to set runtime, alarms, and shutdown policies. Regular battery health checks and firmware updates help maintain reliability.
• Q: What protection does it offer? A: It provides protection against power outages, brownouts, voltage sags, surges, faults, and line noise, preserving uptime and safeguarding connected equipment.
