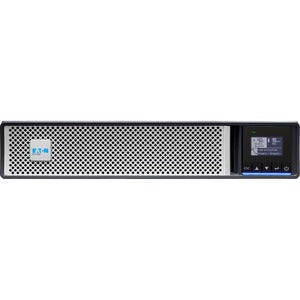

Eaton 5PX G2 2200VA 208V Line-Interactive UPS with Extended Run

Meet the Eaton 5PX G2 2200VA 208V Line-Interactive UPS, a premium power protection solution designed for distributed IT, telecom, and enterprise deployments. Built to guard your critical devices against blackouts, brownouts, surges, and line noise, this 2U rack/tower UPS delivers reliable battery backup with intelligent management features. The 5PX G2 combines robust protection with flexible installation options, enabling you to safeguard servers, storage, virtualization platforms, network gear, and edge devices with confidence. Whether you operate a small data closet, a branch office, or a larger distributed IT environment, the 5PX G2 provides consistent voltage regulation, efficient energy use, and easy remote monitoring to keep your business running smoothly.

Designed for 208V environments, the 5PX G2 supports a high-power load while maintaining clean, stable output. Automatic voltage regulation (AVR) automatically corrects minor power fluctuations without switching to battery, which extends battery life and reduces wear on connected equipment. In addition to traditional battery protection, the 5PX G2 offers an optional cybersecure network card for secure remote management, allowing IT teams to monitor, control, and respond to power events from anywhere. The combination of 2 C19 and 8 C13 outlets provides flexible, organized power distribution for a variety of devices, from servers and switches to storage arrays and backup gear. With an extended run option, you can tailor runtime to your workload, maximizing uptime during outages and maintenance windows.

The Eaton 5PX G2 series is renowned for its reliability, ease of service, and enterprise-grade features. This model’s compact 2U footprint makes it suitable for standard 19-inch racks as well as tower configurations, enabling straightforward integration into existing IT spaces. Its intelligent fault diagnostics, clear status indicators, and user-friendly software support help IT staff quickly identify issues and take action before they impact operations. For organizations prioritizing uptime, security, and efficiency, the 5PX G2 2200VA at 208V is a thoughtful investment that balances performance with total cost of ownership.

• Uninterrupted power for critical equipment with 2.2kVA / 2.2kW capacity at 208V input, delivering reliable backup for servers, virtualization hosts, storage, switches, and telecom gear. The line-interactive design with AVR continuously stabilizes voltage, minimizing power interruptions and preserving battery life so you can protect essential workloads without frequent maintenance interruptions.
• Flexible deployment in a 2U rack or tower configuration with a practical outlet layout of 2 C19 and 8 C13 sockets. This arrangement supports diverse devices—from high-density servers and blade chassis to network gear and edge storage—while preserving clean cable management and airflow in tight spaces. The rugged enclosure is designed for data centers, server rooms, or remote sites where dependable power matters.
• Cybersecure network card option for secure, remote management. The optional network management capability enables encrypted monitoring, alerting, and control over the UPS from centralized IT systems. Combined with Eaton software and standard USB/serial connectivity, you gain comprehensive visibility into power events, runtime, and device protection, helping you safeguard critical services and improve incident response times.
• Energy efficiency and quiet operation that helps reduce cooling load and operating costs. The 5PX G2 supports energy-saving modes and optimized efficiency without sacrificing protection. Smart fans and efficient power conversion deliver high performance with low heat output, which translates into lower energy bills and a more comfortable, quieter data center or office environment.
• Extended runtime and easy serviceability. When you need longer protection during extended outages, you can add external battery packs for extended run time. The UPS is designed for hot-swappable batteries and straightforward field maintenance, allowing your IT team to refresh energy storage quickly, minimize downtime, and keep devices protected during planned work or unexpected outages.

Technical Details of Eaton 5PX G2 2200VA 208V Line-Interactive UPS

• Model: Eaton 5PX G2 2200VA / 208V Line-Interactive UPS
• Capacity: 2200 VA / 2200 W
• Input voltage: 208 V (nominal)
• Output voltage: 208 V (nominal), with AVR to regulate brownouts and overvoltages
• Form factor: 2U rack/tower
• Outlet configuration: 2 × C19 and 8 × C13 outlets
• Protection: Battery backup with surge protection and line-noise filtration
• Management: USB port and serial connection; optional Cybersecure Network Card for secure remote management
• Battery: Hot-swappable, replaceable sealed lead-acid batteries designed for long life and easy replacement
• Runtime options: Standard runtimes with internal battery; extended run enabled via external battery packs
• Compatibility: Supports Eaton IPM software for centralized monitoring and control
• Protection features: Automatic self-test, audible alarms, LCD/LED status indicators for quick health checks

How to install Eaton 5PX G2 2200VA 208V Line-Interactive UPS

To install the Eaton 5PX G2 securely and efficiently, begin by selecting an installation location that allows for proper airflow and access to power connections. If mounting in a rack, ensure you have compatible rails and enough clearance for ventilation. Mount the 5PX G2 in a 2U rack space or place it on a stable surface to support its weight and maintain balance in both rack and tower configurations.

Next, connect the UPS to the building power supply using a suitable 208V input cord. Verify that the power source can handle the load of connected equipment and that the outlet configuration matches the 2 C19 / 8 C13 distribution included on the unit. Arrange cables neatly to promote airflow and simplify future maintenance. For devices requiring battery-backed protection, connect critical loads to the UPS’s C19 and C13 outlets as appropriate, keeping high-priority equipment on the UPS while nonessential devices may run on general power as needed.

If you plan to use the cybersecure network management option, install the Network Card according to the product documentation. Then connect the UPS to your network using the provided Ethernet connection and configure it with Eaton IPM software or your preferred monitoring solution. Establish appropriate security settings, including access controls and encryption where supported, to protect against unauthorized access to power data and controls.

Power up the system and perform a self-test to confirm proper operation. Use the display panel to review voltage, load, battery status, and estimated runtime. If any alarms appear, address them per the user manual—this might include rebalancing the load, reconfiguring the AVR sensitivity, or planning a battery replacement during scheduled maintenance. Regularly schedule self-tests and firmware/software updates to maintain peak performance and protection levels.

Finally, document the installation, including rack location, outlet assignments, network card configuration (if used), and maintenance schedules. A well-documented setup helps with future expansions, troubleshooting, and compliance audits. With proper installation and ongoing monitoring, the Eaton 5PX G2 2200VA at 208V becomes a reliable backbone for your IT environment, delivering consistent uptime and robust protection across your critical devices.

Frequently asked questions

• What does 2200VA / 2200W mean for this UPS? It indicates the UPS can support up to 2200 volt-amps or 2200 watts of real load power. This capacity is suitable for protecting a mix of servers, storage, and networking gear, especially in 208V environments. The actual runtime will depend on the load and whether extended run options are installed.
• What outlets are available on the Eaton 5PX G2? The unit provides 2 IEC C19 outlets and 8 IEC C13 outlets for distributing power to connected devices. This configuration accommodates a range of equipment, from high-power servers to peripheral networking gear, while leaving room for future expansion.
• Is there an option for remote management? Yes. The 5PX G2 offers an optional Cybersecure Network Card for secure remote management, in addition to standard USB and serial connections. This enables centralized monitoring, alerting, and control through Eaton IPM software or compatible monitoring platforms.
• Can I extend the runtime? Yes. The 5PX G2 supports extended runtime through external battery packs. This allows you to tailor uptime to your specific outage patterns and maintenance windows, maximizing service availability for critical workloads.
• What are the installation considerations? Ensure proper rack mounting or stable placement, adequate airflow, and a suitable 208V power source. If using the network card option, configure security settings to protect management data. Perform regular self-tests and monitor status to catch issues before they impact operations.
• What kind of protection does it offer? The unit provides protection against power outages, brownouts, surges, and line noise, while AVR stabilizes voltage to minimize stress on connected equipment. It also includes battery protection, automatic self-testing, and audible/visual status indicators for quick awareness.
