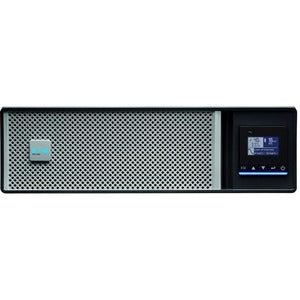

Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS — 6 NEMA 5-20R + 1 L5-30R, Cybersecure Network Card, Extended Run, 3U Rack/Tower

The Eaton 5PX G2 3000VA UPS is engineered to protect your critical IT infrastructure with reliable battery backup and comprehensive power conditioning. Designed for distributed IT, telecom, and enterprise deployments, this line-interactive UPS delivers clean, continuous energy to servers, network gear, storage devices, and edge equipment. With a compact 3U rack/tower form factor, it fits seamlessly into data centers, server rooms, and even tight office environments. The 5PX G2 combines advanced protection features with a cybersecurity-friendly network management card, enabling secure remote monitoring and control over your power ecosystem while reducing the risk of data loss during outages or voltage irregularities.

• Robust power protection for essential equipment: 3,000 VA / 3,000 W capacity provides ample headroom for servers, switches, firewalls, NAS devices, and other critical hardware. The line-interactive topology with automatic voltage regulation (AVR) stabilizes incoming power, minimizing the impact of brownouts and overvoltages so your devices stay online and data integrity is preserved.
• Comprehensive outlet configuration for versatile deployments: Features 6 NEMA 5-20R outlets plus 1 NEMA L5-30R, allowing you to connect a mix of IT gear, network appliances, and peripherals. This configuration is ideal for distributed IT racks, edge deployments, and telecom closets where diverse equipment must be powered reliably from a single secure source.
• Extended runtime options for longer outages: Built to deliver more than just a few minutes of backup, the 5PX G2 supports extended run with optional battery modules. This enables you to gracefully shut down servers, preserve work in progress, and maintain critical operations during longer outages or maintenance windows without sacrificing performance or data integrity.
• Cybersecure remote management included: The included Cybersecure Network Card provides secure, remote access to power management data. Monitor voltage, load, battery health, and run-time, configure safe alerts, and integrate with your existing IT monitoring stack while maintaining strong cybersecurity controls to protect against unauthorized access.
• Flexible deployment in a compact 3U form factor: Rack-mountable in a standard 19-inch rack or conveniently placed in tower mode for space-constrained environments. The 3U design minimizes footprint in cluttered server rooms while delivering enterprise-grade protection and easy scalability as your infrastructure grows.

Technical Details of Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS

• Model: Eaton 5PX G2
• Topography: Line-Interactive with Automatic Voltage Regulation (AVR)
• Capacity: 3000 VA / 3000 W
• Input Voltage: 120 V AC
• Output Voltage: 120 V AC (nominal)
• Outlets: 6 x NEMA 5-20R and 1 x NEMA L5-30R
• Form Factor: 3U Rack/Tower convertible
• Management: Cybersecure Network Card included for remote monitoring and secure access
• Battery: Sealed lead-acid (VRLA) with hot-swappable battery options (where available) for extended runtime
• Protection: Surge protection, line conditioning, and protection against blackouts, brownouts, and line noise
• Monitoring: Real-time status indicators and compatibility with Eaton software for proactive workload protection
• Mounting: 19" rack-mount or standalone tower configuration

how to install Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS

• Unpack the unit and verify contents, including the Cybersecure Network Card, battery modules (if included), and mounting hardware.
• Mount the UPS in a standard 19" rack or position it on a stable surface in tower mode, ensuring adequate clearance for ventilation and cable routing.
• Connect the UPS to a dedicated 120 V AC circuit using the appropriate IEC/NEMA power cord, following local electrical codes and ensuring the circuit can handle the expected load.
• Plug critical devices into the six NEMA 5-20R outlets and the L5-30R outlet as needed, keeping high-priority equipment on battery-backed ports.
• Install and configure the Cybersecure Network Card for secure remote monitoring. Connect the UPS to your network, assign an IP address, and configure alerts and SNMP or IPM settings per your IT policy.
• Power on the UPS and use the onboard display or Eaton software to assess real-time status, battery health, input/output power, and expected runtime. Run a self-test to verify operation and battery readiness.
• If you plan to extend runtime, install compatible battery modules according to the user manual, then recalibrate runtime estimates and monitor health via the network card.
• Establish a regular maintenance schedule, including firmware updates for the UPS and the management card, ensuring continued protection and compatibility with your IT environment.

Frequently asked questions

• Q: What devices can I protect with the Eaton 5PX G2 3000VA UPS?
  A: This UPS is designed to protect critical IT equipment such as servers, switches, routers, storage arrays, backup appliances, and network equipment. Its 3000 VA/3000 W capacity, combined with six NEMA 5-20R outlets and one L5-30R outlet, accommodates a broad range of gear commonly deployed in data centers, server rooms, and edge locations.
• Q: What does the Cybersecure Network Card do?
  A: The Cybersecure Network Card enables remote, secure monitoring and management of the UPS. It allows you to monitor load, battery status, runtime, and events from a central IT console while enforcing cybersecurity controls to protect against unauthorized access to power management data.
• Q: Can I extend the runtime of this UPS?
  A: Yes. The 5PX G2 supports extended runtime with additional battery modules. By adding extra battery capacity, you can sustain essential workloads longer during outages, giving you more time to gracefully shut down systems or continue critical operations.
• Q: Is this UPS suitable for rack installations?
  A: Absolutely. The 3U rack/tower design is optimized for data centers and IT closets. It can be mounted in a standard 19" rack and converted to tower mode as needed to fit your space and equipment configuration.
• Q: How does 5PX G2 protect against power disturbances?
  A: The unit provides line-interactive protection with AVR to regulate voltage, suppress surges, and filter line noise. This preserves data integrity and reduces the risk of equipment damage during outages, brownouts, or voltage spikes.
