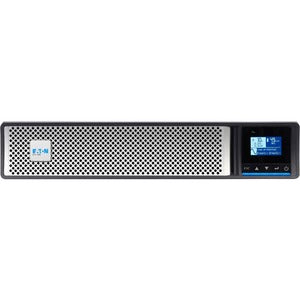

Eaton 5PX G2 3000VA 120V Line-Interactive UPS — 2U Rack/Tower with 6 NEMA 5-20R and 1 L5-30R Outlets

Protect your most valuable IT assets with the Eaton 5PX G2 3000VA 120V Line-Interactive UPS. Engineered for distributed IT, telecom, and enterprise deployments, this 3kVA/3kW battery backup delivers reliable power conditioning, surge protection, and graceful shutdown capabilities to safeguard servers, networking gear, storage, and voice/data equipment. With a flexible 2U form factor that can mount in a standard 19-inch rack or sit securely as a tower, the 5PX G2 is designed to fit varied environments—from compact edge deployments to mid-sized data centers. Whether you’re keeping a critical Rack of servers online during outages or ensuring data integrity during brownouts, this UPS provides the uptime you need and the control you want to manage risk in real time.

• High-capacity power for critical equipment: With 3000VA / 3000W rating at 120V, the Eaton 5PX G2 delivers dependable battery backup for servers, switches, storage arrays, virtualization hosts, and essential network devices. It enables graceful shutdowns during outages and protects sensitive workloads from abrupt power loss, preserving data integrity and reducing downtime.
• Flexible outlet configuration for diverse loads: The UPS features 6 x NEMA 5-20R outlets plus 1 x L5-30R outlet. This mix accommodates standard 120V devices as well as higher-draw equipment that may require a locking locking receptacle, offering versatile power distribution for mixed IT environments and critical loads plugged into a single, centralized unit.
• Cybersecure Network Card option: For organizations prioritizing security and remote management, the optional Cybersecure Network Card provides secure, policy-driven monitoring and control. Receive alerts, perform graceful remote shutdowns, and manage power policies without sacrificing network security or data integrity.
• Extended Run capability for mission-critical uptime: When longer runtimes are needed, pair the 5PX G2 with external battery modules to extend uptime for edge data centers, telecom closets, labs, or remote sites. Extended Run helps you balance cost, space, and uptime by scaling runtime to match your service level agreements.
• Flexible placement and deployment: The 2U rack/tower design supports both rack-mount installation in a standard 19-inch rack and free-standing operation as a tower. This flexibility makes it easy to integrate into existing IT spaces, network rooms, or telecom closets, maximizing space efficiency and simplifying installation.

Technical Details of Eaton 5PX G2 3000VA 120V UPS

• Topology: Line-Interactive UPS designed to provide reliable battery backup and voltage regulation in everyday IT environments.
• Rated capacity: 3000VA / 3000W at 120V, suitable for mid-range servers, networking gear, and storage devices.
• Input / Output: 120V nominal, delivering clean, safeguarded power to connected equipment with automatic voltage regulation and surge protection.
• Outlet configuration: 6 x NEMA 5-20R + 1 x L5-30R for a versatile mix of standard and locking outlets to accommodate diverse devices and power needs.
• Form factor: 2U rack/tower compatibility for flexible installation in data centers, server rooms, or edge sites.
• Management options: Includes standard UPS management interfaces with an optional Cybersecure Network Card for secure remote monitoring and control.
• Extended Run capability: Supports external battery modules to extend runtime for long-duration outages or critical workloads at remote locations.

How to Install Eaton 5PX G2 3000VA 120V UPS

• Plan the installation: Determine whether to mount in a 19-inch rack or position as a tower. Ensure the UPS is on a stable surface with adequate ventilation and accessible outlets for clear cable management.
• Mount or position the unit: If using a rack, install the 2U unit per your rack’s rails, following manufacturer guidelines. If used as a tower, place it on a flat, hard surface away from heat sources and excessive dust.
• Connect protective circuits: Plug the UPS into a dedicated AC circuit as required by your facility guidelines. Route critical equipment cables (servers, switches, storage, and network gear) to the UPS outlets.
• Attach external battery runtimes (if needed): For Extended Run configurations, connect compatible external battery modules per the user manual, ensuring secure connections and proper airflow around the modules.
• Configure management and monitoring: Connect the UPS to a computer or network management system via USB or serial connection as provided. If you’re using the optional Cybersecure Network Card, install the card per the accessory instructions to enable remote monitoring, alerts, and policy-based shutdowns.
• Test and validate: Power on the UPS, run an internal self-test, and verify that connected devices receive clean power. Use Eaton software or your preferred monitoring tool to confirm runtime estimates, voltage regulation, and event logging.
• Document and train: Record the configuration, outlet assignments, and monitoring setup for IT staff. Ensure operators know how to perform a controlled shutdown in event of a prolonged outage and how to respond to alarms from the UPS.

Frequently asked questions

• What is the primary purpose of the Eaton 5PX G2 3000VA UPS? It provides uninterruptible power for critical IT equipment, protecting against power outages, surges, and line noise while enabling graceful shutdowns and consistent performance of servers, storage, and networking gear.
• What outlets does it have? The unit includes 6 NEMA 5-20R outlets and 1 L5-30R outlet, giving you enough connections for a typical small to mid-size rack of equipment while supporting locking connections for high-draw devices.
• Can I extend the runtime? Yes. The Eaton 5PX G2 supports Extended Run with external battery modules, allowing you to scale uptime to meet your service-level requirements during extended outages or in remote sites.
• Is there a network management option? Yes. An optional Cybersecure Network Card provides secure remote monitoring, alerts, and policy-based control, helping IT teams manage power across multiple devices and locations with enhanced security.
• Is this UPS suitable for rack mounting? Absolutely. The 2U form factor is designed for 19-inch racks, but it can also be deployed as a standalone tower if needed, giving you flexible installation options for data centers, server rooms, or edge deployments.
• How do I install and configure it? You install it in the preferred form factor, connect critical devices to the outlets, enable external battery packs if extended runtime is required, and configure management software or the optional network card to monitor status and automate shutdowns when needed.
