Description

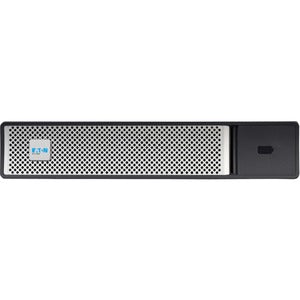

The Eaton 72V Extended Battery Module (EBM) for 2000 VA and 2U 3000 VA 5PX G2 UPS Systems is the ultimate solution for enhancing the performance and reliability of your uninterruptible power supply (UPS) system. Designed specifically for Eaton's 5PX G2 series, this advanced battery backup module provides exceptional runtime during power outages, ensuring that your critical devices and operations remain uninterrupted. With its versatile installation options and robust build, the Eaton EBM is essential for businesses that rely on continuous power supply.
- Extended Runtime: The Eaton 5PXEBM72RTG2 significantly extends the battery life of compatible UPS systems, guaranteeing you peace of mind during power interruptions.
- Daisy-Chain Capability: You can daisy-chain up to four matching battery packs, further enhancing your system’s runtime capabilities to meet your power needs during extended outages.
- Versatile Installation Options: Designed to fit into standard 19-inch open frame racks, the EBM supports 2U of rack space or can be easily configured as a tower, making it adaptable to your workspace layout.
- Included Heavy-Gauge Cabling: The battery module comes with high-current 72V DC connectors and heavy-gauge cabling, ensuring safe and straightforward installation for users of all experience levels.
- Reliable Warranty: Enjoy the confidence of a 3-year limited warranty, showcasing Eaton’s commitment to quality and customer satisfaction.
Technical Details of Product
- Model: 5PXEBM72RTG2
- Compatible UPS Systems: 5PX2000RTG2, 5PX2000RTNG2, 5PX2200HRTG2, 5PX3000RTG2, 5PX3000RTNG2, 5PX3000HRTG2, 5PX3000HRTNG2
- Battery Capacity: 72V
- Form Factor: 2U Rack/Tower
- Daisy-Chain Capability: Supports up to four battery packs
- Included Accessories: 4-post rail kit, mounting brackets, tower stands
- Warranty: 3-year limited warranty
How to Install
Installing the Eaton 72V Extended Battery Module is a straightforward process. Follow these steps for proper installation:
- Begin by safely shutting down your UPS system and disconnecting it from the power source.
- Remove the existing battery compartment cover of the UPS unit if applicable.
- Using the included 4-post rail kit and mounting brackets, securely mount the EBM in the desired rack space.
- Connect the heavy-gauge cabling to the UPS system using the high-current DC connectors, ensuring all connections are tight and secure.
- If daisy-chaining additional battery packs, connect them as instructed in the product manual.
- Replace any covers removed during installation and reconnect the UPS to the power source.
- Power on your UPS system and verify that the battery module is functioning correctly.
Frequently Asked Questions
- What UPS systems is the Eaton EBM compatible with? The Eaton 72V Extended Battery Module is compatible with the following UPS systems: 5PX2000RTG2, 5PX2000RTNG2, 5PX2200HRTG2, 5PX3000RTG2, 5PX3000RTNG2, 5PX3000HRTG2, and 5PX3000HRTNG2.
- Can I daisy-chain multiple EBM units? Yes, you can daisy-chain up to four matching battery packs to achieve extended runtime capabilities.
- Is the installation difficult? The installation process is straightforward, and all necessary cables and mounting accessories are included. However, proper care should be taken to ensure safety while connecting the unit.
- What is the warranty period for the Eaton EBM? The product comes with a 3-year limited warranty, ensuring you are covered for any manufacturing defects or issues.
- Can I use the EBM in a tower configuration? Yes, the Eaton EBM includes tower stands for easy vertical installation, making it adaptable to various setups.
