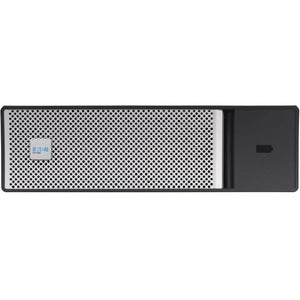

Eaton 72V Extended Battery Module (EBM) for 5PX2000RT3UNG2, 5PX3000RT3UNG2 UPS Systems

Maximize uptime for critical workloads with the Eaton 72V Extended Battery Module (EBM). Specifically designed for Eaton’s 5PX G2 UPS systems, the 72V EBM dramatically extends runtime by adding reliable, scalable battery capacity. When paired with the 5PX2000RT3UNG2 or 5PX3000RT3UNG2 models, this 3U rack/tower battery backup module empowers data centers, IT closets, healthcare facilities, and remote sites to ride out outages with confidence. Its modular design makes it easy to scale as power needs grow, helping you protect servers, storage, network gear, and other essential equipment without compromise. Whether you’re upgrading a single rack or building a resilient multi-rack environment, the Eaton 72V EBM delivers predictable performance, straightforward installation, and seamless integration into your existing UPS ecosystem.

• Extended runtime with scalable capacity: add multiple EBMs to meet evolving power protection requirements, enabling longer outage tolerance for mission-critical loads.
• 3U rack/tower form factor: compact, versatile design that fits standard 19-inch racks and data center cabinets for efficient, space-conscious deployment.
• Compatibility with Eaton 5PX G2 UPS systems: specifically engineered to work with 5PX2000RT3UNG2 and 5PX3000RT3UNG2 models, ensuring optimal performance and balanced charging across the system.
• Daisy-chain capability: connect up to four matching battery packs to share load and simplify maintenance, delivering scalable resilience without complex wiring.
• Intelligent battery management and monitoring: built-in status reporting and integration with Eaton management software, helping you track health, voltage, and runtime from central consoles.

Technical Details of Eaton 72V Extended Battery Module (EBM)

• Model: 5PXEBM72RT3UAG2
• System voltage: 72V DC nominal battery supply
• Form factor: 3U rack/tower enclosure designed for standard 19-inch racks
• Compatibility: fits Eaton 5PX G2 UPS systems, including 5PX2000RT3UNG2 and 5PX3000RT3UNG2
• Chainability: supports daisy-chaining of up to four battery packs to extend runtime
• Function: provides extended runtime by adding battery capacity to the existing UPS configuration
• Management: integrated battery health monitoring and status indicators; compatible with Eaton software for remote monitoring
• Installation footprint: designed for quick mounting and secure connections within a standard 19-inch rack environment

How to install Eaton 72V Extended Battery Module (EBM)

• Safety first: power down the UPS and disconnect from mains before beginning installation to prevent electrical shock or arcing.
• Prepare the rack: identify an available 3U space in a standard 19-inch rack or compatible cabinet, ensuring proper clearance for ventilation and cable management.
• Mount the EBM: slide the Extended Battery Module into the rack rail, align mounting holes, and secure with appropriate screws or rails as specified for your enclosure. Ensure the unit is firmly seated and level.
• Make electrical connections: connect the EBM to the UPS using the manufacturer-provided battery interface cables or connectors, following the included installation guide for correct polarity and secure contact.
• Configure daisy-chain (optional): if deploying additional EBMs, connect them in series as permitted, up to four packs, and verify that the UPS recognizes each module in the chain through the management interface.
• Power on and verify: reconnect mains power, boot the UPS, and check the status indicators and management console to confirm that the EBM is detected and reporting healthy battery conditions.
• Calibrate and monitor: allow the system to calibrate under load, then monitor runtime estimates and battery health through Eaton’s management software or the UPS LCD panel to ensure ongoing protection.

Frequently asked questions

• Q: What UPS models are compatible with the Eaton 72V EBM? A: This EBM is designed to work with Eaton 5PX G2 UPS systems, specifically the 5PX2000RT3UNG2 and 5PX3000RT3UNG2 models, delivering extended runtime when paired with these units.
• Q: How many EBMs can be daisy-chained? A: Up to four matching battery packs can be daisy-chained to increase runtime and resilience, depending on your load and runtime requirements.
• Q: What is the physical footprint of the EBM? A: The module occupies 3U of rack space and is designed for standard 19-inch racks or towers, enabling flexible deployment in data centers and IT spaces.
• Q: How is the EBM managed? A: The EBM includes built-in battery health monitoring and status indicators and integrates with Eaton management software, allowing remote monitoring of voltage, health, and estimated runtime.
• Q: How do I install the EBM? A: Installation involves powering down the UPS, mounting the EBM in a suitable rack space, connecting the battery interface cables, optionally wiring additional EBMs in a daisy-chain, and then powering the system back on to verify operation and monitoring setup.
