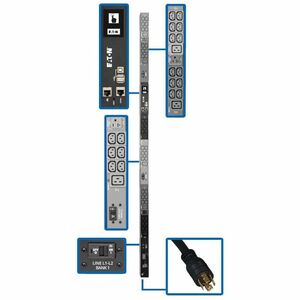

Eaton 8.6kW 208/120V 3PH Monitored PDU - LX Interface, Gigabit, 45 Outlets, L21-30P Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

The Eaton 8.6kW 208/120V 3PH Monitored PDU is the ultimate solution for modern IT and industrial environments that demand high performance, reliability, and extensive monitoring capabilities. This advanced Power Distribution Unit (PDU) is tailored for critical operations, providing optimal power distribution while ensuring your devices remain operational at all times. With its innovative features, this PDU simplifies remote management and monitoring, making it an essential asset for any data center or industrial setup.

• Real-Time Monitoring: Equipped with the advanced LX Platform interface, the Eaton PDU enables 24/7 remote monitoring of voltage, frequency, and load levels. Stay informed and in control of your power status from anywhere.
• Extensive Outlet Options: Featuring a total of 45 outlets—36 C13 (208V), 6 C19 (208V), and 3 NEMA 5-15/20R (120V)—this PDU is versatile enough to accommodate a wide range of devices, ensuring compatibility with all your equipment.
• Enhanced Connectivity: The Eaton PDU supports advanced communication protocols, including IPv4, IPv6, SNMP, and SSH. This allows for seamless integration into your existing network infrastructure, enhancing overall performance and reliability.
• Intuitive Touchscreen LCD: The PDU comes with a color touchscreen LCD that provides easy navigation through its menus. Users can monitor current load levels, access environmental data, and even generate QR codes for convenient mobile access to monitoring features.
• Flexible Installation Options: Designed for adaptability, the Eaton PDU can be mounted vertically in racks using toolless mounting buttons or included brackets. The PDU allows for customized outlet orientation to optimize airflow and accessibility for your equipment.

Technical Details of Product

• Model Number: PDU3EVN6L2130
• Power Rating: 8.6kW
• Input Voltage: 208/120V
• Phase: 3-Phase
• Height: 0U, 1.8 m
• Input Plug: NEMA L21-30P
• AC Power Cord Length: 1.8 m (6 ft)
• Number of Outlets: 45
• Compatible with: EnviroSense2 modules for environmental monitoring

How to Install

Installing the Eaton 8.6kW 208/120V 3PH Monitored PDU is a straightforward process:

1. Choose a suitable rack location for the PDU, considering airflow and accessibility.
2. Use the included toolless mounting buttons or rack-mounting brackets to securely attach the PDU to your rack.
3. Connect the AC power cord (with NEMA L21-30P input plug) to a compatible power source or UPS.
4. Power on the PDU and utilize the touchscreen LCD to configure settings and monitor performance.
5. For remote access, establish the network connection and ensure proper configuration of the LX Platform interface.

Frequently Asked Questions

• What is the maximum load capacity of the Eaton PDU? The Eaton 8.6kW PDU can handle loads of up to 8.6kW, making it suitable for high-demand applications.
• Can I use this PDU with a generator? Yes, the PDU can be connected to a generator or a protected UPS, ensuring reliable power distribution even in case of an outage.
• How do I access the remote monitoring features? You can access the monitoring features through a secure web browser or mobile device using the generated QR code for easy access.
• Is additional environmental monitoring possible? Absolutely! Optional EnviroSense2 modules can be added for enhanced environmental monitoring capabilities, giving you complete oversight of your environment.
• What are the installation requirements for this PDU? The PDU is designed for vertical rack mounting and requires a compatible power source with a NEMA L21-30P input for optimal performance.
