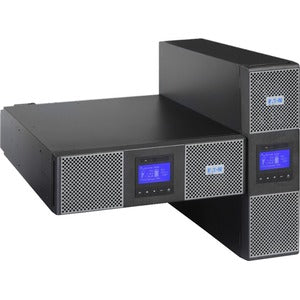

Eaton 9PX 10kVA 9kW Split-Phase Online UPS – 120/208V, Hardwired Input & Output, 6U Rack, Extended Run, Cybersecure Network Card

Power protection for IT installations and edge networks starts with a reliable, scalable uninterruptible power supply. The Eaton 9PX 10kVA 9kW Split-Phase Online Double-Conversion UPS is engineered to deliver pristine, continuous power to servers, storage devices, networking gear, and other critical equipment. With 120/208V split-phase output, this UPS provides flexibility for mixed IT environments while avoiding the cost and weight of large transformers. Its compact 6U rack footprint makes it easy to deploy in standard data centers and edge sites, maximizing space without sacrificing performance. The cybersecure network card enables secure, remote monitoring and management, helping IT teams detect power events early and minimize downtime. And when you need longer runtimes, the Extended Run capability gives you the option to scale by adding battery modules. With an efficient, robust design and straightforward wiring, the Eaton 9PX 10kVA/9kW UPS is a trusted backbone for mission-critical workloads.

• Powerful, scalable protection for IT infrastructure: 10kVA / 9kW online double-conversion UPS technology delivers clean, regulated output to servers, storage, and network devices during brownouts, sags, and outages, preserving data integrity and uptime across IT environments.
• Compact 6U rack-mount form factor with split-phase 120/208V output: Designed for data centers and edge deployments, this UPS provides versatile voltage support while fitting neatly into standard racks, enabling efficient space allocation in busy IT closets and server rooms.
• Flexible input and output connections: Hardwired input (L6-30R) and two L14-30R outlets with an additional hardwired output path give you reliable wiring options for critical workloads and easy integration with existing electrical infrastructure.
• Cybersecure network card for secure monitoring: The included network card enables secure remote monitoring, alerting, and integration with IT management platforms, empowering proactive power management and rapid responses to power events.
• Extended Run capability to scale runtime: When outages extend beyond battery capacity, Extended Run support allows you to add modules and extend runtime, protecting essential services during longer power interruptions.

Technical Details of Eaton 9PX 10kVA 9kW Split-Phase UPS

• UPS type: Online double-conversion (provides clean, continuous, isolated output with high efficiency and fast transient response)
• Model specifics: 9PX series, 10kVA / 9kW capacity, split-phase 120/208V output for mixed IT environments
• Input configuration: Hardwired input connection (L6-30R)
• Output configuration: Hardwired output path plus 2 x L14-30R receptacles
• Rack footprint: 6U height, designed to fit standard IT racks and cabinets
• Network management: Cybersecure Network Card included for secure remote monitoring and management integration
• Run-time options: Extended Run capability to extend runtime by adding battery modules
• Protection scope: Protects servers, storage arrays, network gear, and other critical devices from power disturbances
• Environmental: Optimized design for data center and edge deployments with reliable cooling and silent operation

How to Install Eaton 9PX 10kVA 9kW UPS

• Plan your rack space: Confirm the UPS will occupy 6U in a ventilated rack, with adequate clearance for airflow and maintenance access.
• Mount the unit in the rack: Secure the UPS using compatible rails or mounting hardware per the installation guide to ensure stable operation and safe serviceability.
• Connect the input power: Run the hardwired input to a dedicated, properly protected power source using the L6-30R connection. Verify the circuit breaker sizing and ensure the input supply matches the UPS rating.
• Connect the outputs to critical loads: Use the two L14-30R receptacles for essential equipment and establish the hardwired output path for downstream critical devices as required by your data center or edge environment.
• Install the Cybersecure Network Card: Insert the network management card into the designated slot and connect it to your secure management network. Configure access controls, SNMP/HTTP settings, and alert preferences.
• Configure basic UPS settings: Set input voltage range, output voltage, frequency, transfer points, and battery test schedules. Enable automatic shutdown or safe power-off policies for protected equipment if needed.
• Calibrate and verify alarms: Confirm that alarms, notifications, and status indicators operate correctly. Run a healthy battery test to validate discharge and recharge cycles.
• Test under load: Apply load representative of your critical devices and verify clean output, response to simulated outages, and graceful shutdown sequences if programmed.
• Document the configuration: Record the network card IP address, login credentials, runtime capacity, and connected loads for future maintenance and audits.

Frequently asked questions

• What does 10kVA / 9kW mean in this Eaton UPS? The 10kVA rating reflects apparent power capacity, while 9kW indicates the real power (active) rating. This UPS can support up to 9 kilowatts of continuous load, with the ability to handle power factor variations typical in IT gear, ensuring stable operation for servers and network equipment.
• Why choose a split-phase 120/208V UPS? Split-phase output accommodates equipment designed for both 120V and 208V systems, enabling flexible deployment across different regions and devices, while maintaining efficient performance and reducing the need for extra transformers or distribution modules.
• What is Extended Run and how does it help me? Extended Run is a capability that allows you to add battery modules to lengthen runtime during outages. This is especially valuable for edge deployments or remote sites where outages may last longer than the internal battery can support, helping you keep critical systems online.
• What does the Cybersecure Network Card do? The Cybersecure Network Card provides secure, remote monitoring and management of the UPS. It enables integration with IT service management tools, automates alerts, and helps your team respond quickly to power events while maintaining tight access control and security.
• What loads can I protect with this Eaton 9PX UPS? This model is designed to protect essential IT infrastructure, including servers, storage devices, networking gear, and other critical equipment in data centers and edge environments. By delivering clean power and reliable runtime, it minimizes data loss and equipment damage during power disturbances.
• Is installation safe for non-electrical staff? Due to electrical safety considerations, installation and hardwiring should be performed by qualified personnel in accordance with local electrical codes and the UPS manual. The Cybersecure Network Card setup, on the other hand, can be performed by IT staff once the physical connections are secure.
