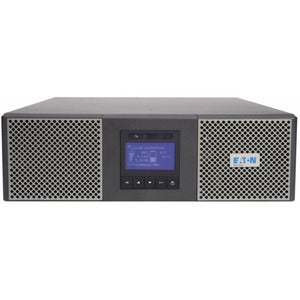

Eaton 9PX 11kVA 10kW 208V Power Module — Cybersecure, Hardwired, Extended Run, 3U Rack/Tower

The Eaton 9PX 11kVA 10kW 208V Power Module is engineered for IT installations and edge networks that demand dependable, scalable power protection. This 3U rack/tower unit provides a compact yet powerful solution that defends sensitive servers, storage, and networking gear from outages, brownouts, surges, and line noise. With hardwired input and output connections, a cybersecure network card for secure remote management, and the ability to extend runtime when needed, this power module is purpose-built for modern data centers and distributed IT environments where uptime is non-negotiable and data integrity matters.

• Robust online protection for critical workloads: The 11kVA / 10kW power module delivers continuous, clean sinewave power through online double-conversion technology. It safeguards IT equipment from power disturbances, ensuring stable operation for servers, virtualization hosts, storage systems, and network devices even during catastrophic events.
• Hardwired input and output for seamless IT integration: Designed for enterprise installations, the hardwired input and output connections streamline cabling, improve reliability, and simplify integration with dedicated electrical circuits and rack-based IT infrastructure.
• Cybersecure Network Card for secure remote management: Includes Eaton’s cybersecure network card to enable secure remote monitoring and control. Expect encrypted communications, authenticated access, and compatibility with Eaton management software to monitor power conditions, receive alerts, and perform graceful remote shutdowns when required.
• Extended Run capability for mission-critical uptime: When longer runtimes are necessary, pair the power module with external battery cabinets to extend runtime during outages. This scalable approach helps maintain essential services and workloads without compromising performance during extended power events.
• Flexible 3U rack/tower form factor for IT and edge deployments: The compact 3U footprint fits neatly in data centers, enterprise closets, and edge locations. Its adaptable design makes it suitable for rack mounting or standalone tower deployment, providing versatile protection across varied environments.

Technical Details of Eaton 9PX 11kVA 10kW 208V Power Module

The following technical details summarize the key specifications of this power module, drawn from its core capabilities and the product’s design purpose for IT installations and edge networks.

• Power rating: 11kVA / 10kW capacity, optimized for 208V operation to align with many data center and edge computing power distributions.
• Form factor: 3U rack/tower configuration, delivering high density in a compact footprint ideal for data centers and equipment closets.
• Input/Output: Hardwired input and hardwired output connections for reliable, code-compliant electrical integration and clean cable management.
• Management and security: Includes a Cybersecure Network Card for secure remote monitoring, with support for encrypted communications and authenticated access to management software.
• Runtime flexibility: Extended Run capability via optional external battery cabinets (EBMs) to scale runtime to match workload resiliency requirements.
• Protection features: Delivers clean, conditioned power with surge suppression, voltage regulation, noise filtering, and protection against outages and disturbances that could affect data integrity.
• Monitoring and software integration: Designed to integrate with Eaton Power Management software and, where applicable, EcoStruxure IT environments for centralized monitoring, alerting, and control of multiple power devices from a single pane of glass.

How to Install Eaton 9PX 11kVA 10kW 208V Power Module

Installing the Eaton 9PX power module is straightforward when performed by qualified personnel. Follow these general steps to ensure a safe, compliant, and dependable deployment that maximizes uptime and protects critical IT equipment.

• Plan and prepare: Choose a well-ventilated, temperature-controlled location with adequate clearance for airflow and maintenance access. Verify rack space, wiring routes, and adequate electrical distribution for a hardwired setup.
• Mount the unit: Install the UPS in a standard 3U rack slot or place it on a sturdy surface as a tower, using compatible mounting rails if rack-mount installation is chosen. Secure the module to prevent vibration and movement.
• Connect input power: Run dedicated, appropriately rated hardwired input cables from the building electrical distribution (branch circuit or bus) to the UPS input terminals, following local electrical codes. Install protective devices as required by code and the equipment’s installation guide.
• Connect output loads: Link the UPS output to the IT equipment you’re protecting (servers, storage, network gear) using correctly rated cables. Organize cables to minimize strain and maximize airflow around the equipment.
• Install the cybersecure network card and connect it to the network: Insert the Network Card as per the product manual, connect the network interface to a secure management network, and configure initial access credentials. Ensure firewall rules and SSH/HTTPS access are set according to your organization’s security policy.
• Configure management and protection features: Use Eaton’s Power Management software to set alert thresholds, shutdown policies, and reporting. Enable automatic voltage regulation (AVR) and monitoring of input voltage, output voltage, load, and battery health where supported.
• Attach external battery cabinets if extended runtime is needed: Connect EBMs per the manufacturer’s instructions, ensuring proper sequencing and interconnection with the UPS for balanced charging and discharge behavior.
• Power up and verify: Apply mains power, turn on the UPS, and run the built-in self-test to verify normal operation. Confirm that protected loads receive uninterrupted power and that management software reflects accurate readings.
• Document and train: Record installation details, serial numbers, network card IP addresses, and configured policies. Provide the appropriate operators with basic training on monitoring dashboards and alarms.

Frequently Asked Questions

• What loads can the Eaton 9PX 11kVA power module support? It is designed to protect a wide range of critical IT equipment up to 10kW of real power. Typical protected loads include servers, storage arrays, network switches, and virtualization hardware in data centers or edge deployments.
• Is the unit compatible with 208V infrastructure? Yes. The power module is specified for 208V operation, aligning with common data center and edge network distributions.
• What is Extended Run and how do I enable it? Extended Run refers to the ability to pair the UPS with external battery cabinets (EBMs) to extend runtime beyond the internal battery’s capacity. This is especially valuable during extended outages or when power continuity is critical.
• How do I securely manage the UPS? The Cybersecure Network Card provides secure remote access for management. Use the accompanying management software (and standard security practices) to monitor voltage, load, temperature, battery health, and to perform orderly remote shutdowns if needed.
• Can I install this module in a data center or at an edge site? Absolutely. The 3U rack/tower form factor is designed for both data centers and edge deployments, delivering scalable protection in varied environments with flexible mounting options.
• What installation considerations should I plan for? Plan for adequate ventilation, proper cable routing, secure mounting, and network access for the cybersecure card. Also consider how you will handle battery maintenance, firmware updates, and routine testing to ensure ongoing reliability.
