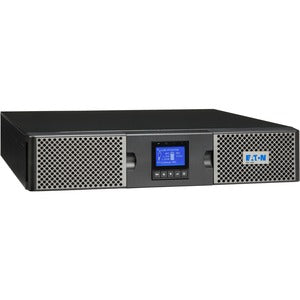

Eaton 9PX 1500VA 1350W 120V Online Double-Conversion UPS - 5-15P, 8x 5-15R Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower - Battery Backup
Power reliability is non-negotiable for modern IT environments. The Eaton 9PX 1500VA 1350W 120V Online Double-Conversion UPS is engineered to deliver pristine power to servers, network devices, and edge computing gear, protecting data integrity and extending equipment life even when the grid falters. Designed for both rack and floor deployments, this 2U UPS combines rugged protection with intelligent runtime management, making it ideal for data centers, server rooms, and edge locations where downtime can cost real money. With its online double-conversion topology, hot-swappable batteries, and a flexible expansion path through External Battery Modules (EBMs), the 9PX delivers consistent performance under varying loads, temperatures, and system activity. This is power protection engineered for continuity, security, and efficiency in high-demand IT ecosystems.
- Online double-conversion power protection delivers continuous clean power with zero transfer time on outages, maintaining stable voltage and reducing line disturbances that can harm servers, storage, and network gear.
- 2U rack/tower versatility in a compact enclosure with 8 outlets (8x 5-15R) and a 5-15P input, supporting a tidy, scalable power distribution layout for standard 19" racks or office environments.
- Extended Run capability via optional External Battery Modules, enabling longer maintenance-free operation during extended outages or planned power events without compromising protection or performance.
- Cybersecure Network Card Option provides secure remote monitoring, enhanced access control, and protected firmware integrity for networked devices, helping defend against tampering and unauthorized access.
- Intuitive management and serviceability with front-panel indicators, compatibility with Eaton PowerChute and SNMP/web interfaces, and hot-swappable batteries for rapid service and minimal downtime.
Technical Details of Eaton 9PX 1500VA 120V Online Double-Conversion UPS
- Topology: Online double-conversion architecture that constantly converts AC to DC and back to AC, isolating critical loads from input irregularities and delivering a stable, high-quality output.
- Rated output: 1500 VA / 1350 W, providing solid headroom for mid-range servers, network devices, and storage gear while supporting graceful shutdowns and load balancing.
- Input: 120 V nominal with a standard NEMA 5-15P connection; automatic voltage regulation handles minor fluctuations without drawing on the battery.
- Output: 120 V single-phase, eight NEMA 5-15R outlets arranged to optimize load distribution across devices and circuits.
- Form factor: 2U rack-mountable design with tower flexibility, enabling seamless integration into data centers and edge deployments.
- Battery: Sealed lead-acid, hot-swappable battery modules designed for easy maintenance; supports external battery modules for Extended Run capability.
- Management and monitoring: USB and serial interfaces for local control; optional Cybersecure Network Card for secure remote monitoring; compatibility with Eaton PowerChute, SNMP/Web interfaces, and third-party monitoring tools.
- Protection features: Surge suppression, noise filtration, overcurrent protection, and built-in battery test features to ensure readiness and reliability.
How to Install Eaton 9PX 1500VA 120V UPS
- Choose a stable, well-ventilated location in a rack or on a solid surface with adequate clearance for cooling and maintenance access.
- Mount the UPS in a standard 19" rack using the included hardware, or position it on the floor in tower mode as needed for your space.
- Connect the battery modules if included and ensure they are properly seated; allow the UPS to initialize and perform an initial battery charge as recommended in the manual.
- Plug the 120 V input cord into a dedicated circuit, then power on the unit and observe the front-panel indicators for normal operation.
- Plug critical devices into the eight NEMA 5-15R outlets, distributing loads to keep within the UPS’s capabilities for sustained protection.
- If remote management is required, install the optional Cybersecure Network Card and connect the card to your network; configure IP address, security settings, and access controls per the manual.
- Install Eaton PowerChute or use the integrated web/SNMP interface to set up automated shutdown, event alerts, and graceful reboot policies for connected equipment.
- Run a self-test from the front panel or software to verify battery health and ensure proper shutdown sequencing before putting the system into production mode.
Frequently Asked Questions
- What devices can the Eaton 9PX protect? It supports servers, storage systems, switches, routers, and other critical IT gear that require clean, reliable 120 V power.
- What is the key difference between online double-conversion and a standby UPS? Online double-conversion continuously regulates voltage and filters noise, delivering zero transfer time during outages and superior protection for sensitive equipment compared with standby designs.
- Can I extend runtime with external batteries? Yes. Extended Run is achieved using external battery modules (EBMs) that attach to the UPS and provide longer operation at varying loads.
- Is there a security option for management? Yes. The Cybersecure Network Card Option adds secure remote monitoring, authenticated access, and protected firmware updates to safeguard your networked devices.
- How do I monitor and manage the UPS? You can monitor via the optional Network Card, USB/serial connections, Eaton PowerChute software, and SNMP/Web interfaces for real-time status, logs, and automated shutdowns.
- Is battery replacement difficult? Batteries are designed to be user-replaceable with hot-swappable modules to minimize downtime; follow the manual for proper replacement and disposal of old cells.
