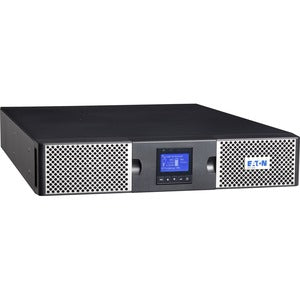

Eaton 9PX 2200VA 2000W 208V Online Double-Conversion UPS — L6-20P, 8 C13, 2 C19 Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower

The Eaton 9PX 2200VA UPS delivers robust power protection for IT installations and edge networks. Built on online double-conversion technology, this 2U unit provides clean, continuous power to servers, storage, virtualization hardware, and networking gear, shielding data and equipment from outages, surges, brownouts, and line noise. Designed for rack-mount or tower deployment, the 9PX 2200 is flexible enough to support growing data centers, remote offices, and high-availability edge environments while preserving performance and uptime.

• Reliable online double-conversion protection: keeps critical equipment powered with a continuous, clean energy supply, delivering near-zero transfer time during outages and insensitivity to input disturbances. This reduces risk of data loss, protects storage systems, and ensures stable operation for virtualized workloads and database servers.
• 208V output for IT environments requiring high-efficiency distribution: engineered to deliver consistent 208V power to demanding devices, supporting efficient rack power distribution and reduced heat generation in data centers and edge deployments.
• Flexible 2U rack/tower design with ample outlets: mounts securely in standard 19-inch racks or sits on a stable surface as a tower, offering 8 x C13 outlets and 2 x C19 outlets to accommodate mixed equipment footprints and varying power needs. The L6-20P input connector provides a secure, high-current 208V connection for reliable operation.
• Optional Cybersecure Network Card for enhanced management: enables secure remote monitoring, encrypted management traffic, and safer shutdown commands for protected networks, helping IT teams safeguard UPS health data and maintain uptime without compromising security.
• Extended Run capability for longer outages: designed to extend operational time through runtime expansion options, ensuring critical applications stay online during prolonged interruptions and allowing graceful server migrations and backups to complete.

Technical Details of Eaton 9PX 2200VA 2000W 208V Online Double-Conversion UPS

• Topology: Online double-conversion (double conversion topology for continuous output quality and robust protection against all mains disturbances).
• VA rating / Actual output power: 2.2 kVA / 2.0 kW, providing reliable headroom for servers, storage, and networking gear in mixed load environments.
• Output voltage: 208 V, optimized for IT equipment and data-center distribution networks in regions that use 208V.
• Input connection: L6-20P high-current input for secure attachment to a 208V supply.
• Form factor: 2U rack/tower, offering flexible mounting options to fit tight data-center racks or stand-alone deployment.
• Outlets: 8 x C13 and 2 x C19 outlets to support a mix of servers, switches, storage devices, and network gear.
• Management and security options: Optional Cybersecure Network Card for enhanced remote management and network security.
• Runtime considerations: Extended Run capability with potential runtime expansion options to cover longer outages and sustain critical workloads.
• Intended use: Ideal for IT installations and edge networks requiring continuous power, reliable protection, and scalable runtime for uptime assurance.

How to install Eaton 9PX 2200VA 2000W 208V Online Double-Conversion UPS

Follow these general steps to deploy the Eaton 9PX 2200VA UPS in a rack or as a tower, ensuring proper placement, connections, and monitoring configuration for optimal performance.

• Choose a well-ventilated, cool location with adequate clearance for airflow and safe accessibility for service. Decide between rack-mount or tower orientation based on your data-center layout and equipment needs.
• Mount the unit in a standard 19-inch rack slot (2U height) or place it on a stable pedestal if using the tower configuration. Secure the chassis according to your rack’s guidelines to minimize vibration and movement.
• Connect the 208V power source to the L6-20P input connector, ensuring the circuit can handle the expected load. Verify that the input circuit protection and wiring meet local electrical codes.
• Plug critical devices into the UPS’s 8 x C13 and 2 x C19 outlets. Group mission-critical servers, storage, and network devices on prioritized outlets, and keep less critical gear on secondary outlets to optimize load management and battery runtime.
• If you plan to enable remote management, install the optional Cybersecure Network Card per the product manual and configure the UPS management software or monitoring platform to receive status alerts, perform graceful shutdowns, and log events securely.
• Power on the UPS, run the built-in self-test, and verify battery status. If you anticipate longer outages, review runtime estimates and plan for any required battery expansion to meet your availability targets.

Frequently asked questions

• What outlets does this Eaton 9PX model provide? It includes 8 x C13 outlets and 2 x C19 outlets to support a mix of servers, storage devices, and networking gear, with a single L6-20P input for 208V power.
• Does it support an optional Cybersecure Network Card? Yes. An optional Cybersecure Network Card is available to enhance secure remote monitoring and management of the UPS in sensitive networks.
• What is the form factor and where can it be deployed? The unit is a 2U rack/tower design, allowing rack mounting in standard 19-inch racks or standalone tower deployment for edge environments and smaller data centers.
• What type of power protection does it offer? It uses online double-conversion technology to provide continuous, clean power with fast response to disturbances, protecting equipment from outages, surges, and noise on the grid.
• What does Extended Run mean for this UPS? Extended Run indicates the ability to expand runtime, typically through additional battery modules or runtime options, to sustain critical workloads during longer outages.
• What workloads is it best suited for? Ideal for IT installations, edge networks, virtualization hosts, hyperconverged infrastructure, and similar deployments where uptime and power quality are crucial.
• How do I verify compatibility with my equipment? Confirm the UPS’s output voltage (208V), outlets (C13/C19), and current rating align with your devices’ power requirements and your facility’s electrical distribution.
