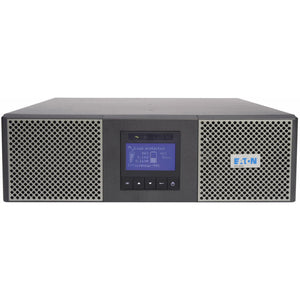

Eaton 9PX 3000VA 208V Online Double-Conversion UPS

Power reliability for IT installations and edge networks is essential in today’s digital landscape. The Eaton 9PX 3000VA 208V Online Double-Conversion UPS is engineered to deliver robust protection for servers, storage, switches, and network gear. With a 3 kVA / 3 kW rating at 208V and an online double-conversion topology, this unit provides clean, tightly regulated output, seamless transfer during outages, and protection from line disturbances that can cause data loss or equipment damage. Its compact 3U footprint supports flexible deployment in servers rooms, data centers, or edge sites, and it can be mounted in a rack or placed as a tower to suit your space. The 9PX system includes an optional Extended Run configuration and a Cybersecure Network Card, delivering not just power protection but also proactive, secure management for IT teams and MSPs protecting critical workloads.

• Powerful 3 kVA / 3 kW online double-conversion UPS for 208V IT environments, delivering tight voltage regulation, near-zero transfer time during outages, and clean sine-wave energy for critical devices.
• Flexible 3U rack or tower enclosure with input L6-30P and outlets: 2 x L6-20R, 2 x L6-30R to support servers, switches, storage, and network gear in diverse configurations.
• Extended Run capability with optional external battery packs for longer runtimes and graceful shutdowns during extended outages—ideal for data-intensive workloads and remote sites.
• Cybersecure Network Card included for secure, remote management, monitoring, and integration with Eaton software to protect against cyber threats and maintain operational visibility.
• Comprehensive protection against blackouts, brownouts, surges, and line noise, preserving data integrity and reducing maintenance costs for IT and edge networks.

Technical Details of Eaton 9PX 3000VA 208V Online Double-Conversion UPS

• Model: 9PX3K3UN
• Topology: Online double-conversion
• Power rating: 3 kVA / 3 kW
• Input voltage: 208 VAC (50/60 Hz)
• Output voltage: 208 VAC (configurable); AVR capable
• Output outlets: 2 x L6-20R, 2 x L6-30R
• Input connector: L6-30P
• Form factor: 3U rack/tower
• Included network card: Cybersecure Network Card
• Extended Run: supports external battery cabinet for longer runtimes

how to install Eaton 9PX 3000VA 208V Online UPS

Install this UPS quickly and safely with a few straightforward steps. Begin by selecting a suitable mounting location that allows for effortless access, adequate ventilation, and clearance for ventilation, service, and cable management. The 3U rack/tower design lets you mount it in a standard IT rack or place it on a stable surface as a tower, depending on your space constraints.

• Power down all equipment you plan to protect and mount the UPS in its chosen position, ensuring the site remains free of moisture and excessive heat. Use proper rack rails or base supports to secure the unit.
• Connect the facility power to the UPS input using the L6-30P connector. Verify that the input power is stable and within the UPS’s intended voltage range to prevent nuisance transfer events.
• Attach protected devices to the respective outlets: place critical servers and storage on the 2 x L6-30R outlets and less critical networking gear on the 2 x L6-20R outlets. Group devices by importance to optimize shutdown sequencing in an outage.
• Install the Cybersecure Network Card if not pre-installed and connect the UPS to your network. Use Eaton Power Management software or your preferred management tool to configure alerts, shutdown policies, and firmware updates. Enable secure access controls to maximize cybersecurity.
• Power on the UPS, run the built-in self-test, and verify battery health and runtime estimates under typical load. Configure automatic shutdown settings for connected equipment and schedule periodic maintenance checks for battery packs and firmware.

Frequently asked questions

• Q: What loads can the Eaton 9PX 3kVA protect at 208V? A: It protects critical IT equipment such as servers, storage arrays, switches, and networking gear that require clean, uninterrupted 208V power. Runtime depends on load and battery configuration; Extended Run options are available for longer outages.
• Q: Can I extend runtime with external batteries? A: Yes. The 9PX supports external battery cabinets to extend runtime for longer outages or to sustain shutdown procedures during extended power interruptions.
• Q: Does this UPS support remote management and cyber security features? A: Yes. The package includes a Cybersecure Network Card for secure remote monitoring and control via Eaton software and other compatible management tools.
• Q: What outlets are included and how should they be used? A: The unit provides 2 x L6-20R and 2 x L6-30R outlets, allowing you to mix power profiles for fast devices and high-demand equipment while keeping critical components on robust, protected circuits.
• Q: Is the unit suitable for rack-mount installations? A: Absolutely. The 3U rack/tower design makes it compatible with standard IT racks while also serving as a compact tower for edge deployments. Proper airflow and clearance are essential for reliable operation.
