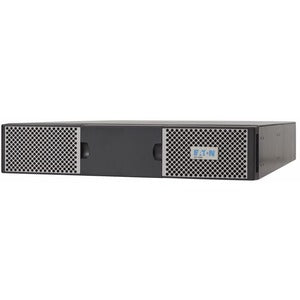

Eaton 9PX 36V Extended Battery Module (EBM) for 9PX700RT and 9PX1000RT UPS, 2U Rack/Tower

Protect your critical workloads with an extended, reliable runtime from the Eaton 9PX 36V Extended Battery Module (EBM). This 2U rack/tower accessory is designed to pair with the Eaton 9PX700RT and 9PX1000RT UPS systems, delivering additional runtime during outages and providing a scalable, resilient power protection solution for data centers, server rooms, and office IT environments. The valve regulated lead-acid (VRLA) 36V EBM delivers a maintenance-free, sealed battery option that enhances uptime without increasing maintenance requirements. When used in conjunction with your compatible Eaton UPS, the 9PX EBM36RT ensures that essential equipment keeps running through longer-duration power events, while your IT team has time to respond and restore service seamlessly.

• The 9PX 36V Extended Battery Module extends runtime for compatible Eaton UPS configurations, helping critical devices stay online longer during power outages and brownouts.
• VRLA 36V battery technology delivers reliable performance with a sealed, maintenance-free design ideal for data centers, server rooms, and office environments.
• 2U rack/tower form factor provides flexible deployment, allowing easy integration into standard IT racks or tower setups without compromising space or airflow.
• Daisy-chain capability supports up to four matching battery packs, enabling scalable backup power to match evolving workload demands and uptime requirements.
• Designed for straightforward installation and seamless integration with Eaton’s UPS ecosystem, offering simple management, safer maintenance, and dependable operation during outages.

Technical Details of Eaton 9PX 36V Extended Battery Module (EBM) for 9PX700RT and 9PX1000RT UPS, 2U Rack/Tower

• Battery type: Valve Regulated Lead Acid (VRLA)
• Nominal voltage: 36 V
• Form factor: 2U Rack/Tower
• Compatibility: Eaton 9PX700RT and 9PX1000RT UPS models
• Daisy-chain capability: Up to four matching battery packs

how to install Eaton 9PX 36V Extended Battery Module

• Power down the supported 9PX UPS and disconnect it from any connected mains supply before starting installation.
• Location: Choose an appropriate 2U rack slot or a stable tower space with adequate ventilation and unobstructed airflow around the UPS and the EBM.
• Mount the EBM securely into the selected 2U bay or designated enclosure slot, ensuring a proper, snug fit that aligns with the UPS chassis.
• Connect the EBM to the UPS using the manufacturer-approved cables or connectors specified for your model, and if you are adding multiple EBMs, connect each additional unit in the recommended daisy-chain configuration up to four packs.
• Power up the UPS and perform a self-test to verify the EBM is recognized, and confirm the extended runtime status is reported by the UPS management interface or software.
• Monitor the battery health and runtime through Eaton’s management tools, and schedule routine checks to ensure continued reliability and optimal performance during outages.

Frequently asked questions

• What is the purpose of the Eaton 9PX 36V EBM? The EBM provides extended runtime for compatible 9PX UPS models, enabling longer protection for connected IT equipment during power interruptions and ensuring business continuity.
• Which UPS models are compatible with the 9PX EBM36RT? This EBM is designed for use with Eaton 9PX700RT and 9PX1000RT UPS systems, offering scalable backup by daisy-chaining additional packs if needed.
• How many EBMs can be daisy-chained? Up to four matching EBM packs can be daisy-chained to extend runtime further and accommodate larger loads or longer outages.
• Is the EBM36RT maintenance-free? Yes. The VRLA design is sealed and maintenance-free, reducing the need for regular electrolyte checks and routine maintenance.
• How do I monitor the EBM's status? Use Eaton’s UPS management software or built-in status indicators on the UPS interface to monitor battery health, charge status, and runtime projections. Regular self-tests help ensure reliability during outages.
• Can I install the EBM in a tower configuration? Yes. The 2U form factor allows flexible placement in either a rackmount or a tower setup, depending on your data center or office layout and rack accessibility.
