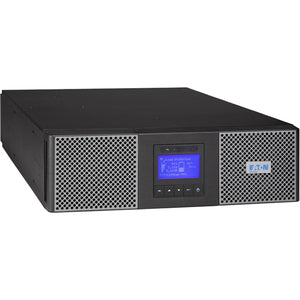

Eaton 9PX 5000VA 208V Online Double-Conversion UPS — L6-30P, 18x 5-20R, 2 L6-20R, 1 L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower

The Eaton 9PX 5000VA 208V Online Double-Conversion UPS is designed for IT installations and edge networks that demand continuous, reliable power for servers, storage, networking gear, and virtualization platforms. Built around online double-conversion topology, this 5kVA (4.5kW) unit delivers a clean, uninterrupted sine-wave output even when the mains fluctuate, brown out, or momentarily fail. It guards critical equipment against blackouts, surges, line noise, and voltage sags while providing precise voltage regulation, predictable runtimes, and proactive battery health insights. With a versatile 6U rack/tower footprint, it can be mounted in a standard 19-inch rack or deployed as a compact tower in smaller spaces, making it suitable for data centers, server rooms, and edge deployments where space and reliability are paramount. An included Cybersecure Network Card enables secure remote monitoring, management, and integration with Eaton’s IPM software, empowering IT and facilities teams to monitor events, perform graceful shutdowns, and optimize power consumption across the infrastructure. The 9PX’s extended run capability, via optional external battery modules, ensures extended outages don’t translate to data loss or service disruption, keeping critical workloads available during longer disturbances.

• Uninterrupted online protection with pure sine wave output — The 9PX operates in online double-conversion mode, continuously converting incoming AC power to DC and then back to a clean, stable AC output. This eliminates voltage dips, surges, and harmonic distortions, ensuring sensitive IT hardware receives stable, high-quality power ideal for servers, virtualization hosts, storage arrays, and networking equipment.
• High-capacity, 208V operation for IT environments — Rated at 5000 VA (4500 W), this UPS is optimized for 208V infrastructure common in data centers and edge deployments. The unit’s performance is tuned for IT loads, providing robust protection for dense rack setups while efficiently managing power in cramped closets or network cabinets.
• Flexible power distribution with mixed outlet configurations — Outlets include 18x NEMA 5-20R, 2x L6-20R, and 1x L6-30R, providing a versatile mix of receptacles to support servers, switches, routers, PDUs, and ancillary gear. The single L6-30P input plug offers a secure, locking connection to the facility power source, reducing the risk of accidental disconnections.
• Cybersecure Network Card for secure remote management — The included Cybersecure Network Card enables remote monitoring, alerting, and management through Eaton’s IPM suite or compatible SNMP tools. IT teams can track runtime, battery health, load statistics, and event logs, enabling proactive maintenance and rapid response to power events without onsite visits.
• Extended Run and flexible deployment with 6U rack/tower design — The 6U form factor supports easy rack integration or standalone tower placement, providing deployment flexibility in data centers, edge sites, and smaller IT closets. Extended runtime is achievable with optional external battery modules (EBMs), allowing you to scale backup time to meet organizational disaster-recovery objectives while avoiding downtime during outages.

Technical Details of Eaton 9PX 5000VA 208V Online Double-Conversion UPS

• Topography: Online double-conversion UPS delivering continuous, clean sine-wave output.
• Capacity: 5000 VA / 4500 W rated for IT workloads at 208V.
• Input: 208V single-phase supply via locking L6-30P plug; 30A input capability.
• Output: 18x NEMA 5-20R, 2x L6-20R, 1x L6-30R outlets for versatile rack- and edge-scale power distribution.
• Form factor: 6U rack/tower enclosure for flexible installation options in data centers or network closets.
• Network management: Includes Cybersecure Network Card for secure remote monitoring and management; compatible with Eaton IPM software and standard SNMP monitoring.
• Runtime expansion: Extended Run capability via external battery modules to scale backup time for longer outages.
• Protection features: Comprehensive protection against blackouts, brownouts, surges, and line noise; automatic voltage regulation helps stabilize voltage to connected equipment.
• Monitoring and diagnostics: Real-time load, battery health, and runtime telemetry with event logging for proactive maintenance and graceful shutdowns during outages.

How to Install Eaton 9PX 5000VA 208V UPS

• Plan your installation space: Choose a ventilated, non-dusty area with adequate clearance for airflow and access to outlets, as well as space for optional external battery modules if you plan to extend runtime.
• Mount or position the unit: Install the UPS in a 19-inch rack slot or place it on a stable surface in tower mode. Ensure the front panel is accessible for status indicators and maintenance.
• Connect the input power: Plug the L6-30P locking connector into a properly rated 208V, 30A circuit. Verify that the circuit can handle the total connected load to prevent nuisance tripping during peak conditions.
• Attach loads to the outlets: Route critical equipment to the 18x 5-20R outlets, with specialty gear on the L6-20R and L6-30R outlets as appropriate. Avoid overloading any single outlet group to maintain balanced load distribution.
• Install the network card and configure IPM: Insert the Cybersecure Network Card as per the user manual, connect the UPS to the network, and configure IP addresses. Install and configure Eaton IPM software or compatible SNMP tools to monitor voltage, load, battery status, and runtime remotely.
• Power sequence and self-test: Once connected, power on the UPS and run a self-test to verify battery status and output quality. Confirm that connected devices initiate a safe shutdown if battery power is insufficient during an outage.
• Plan for runtime expansion: If you anticipate longer outages, plan for external battery modules (EBMs) to be added later. Ensure proper clearance and mounting for any EBMs and integrate them with IPM monitoring for coordinated runtime management.
• Establish maintenance planning: Schedule periodic battery health checks and firmware updates when available. Maintain a spare battery strategy to minimize downtime during battery replacement.
• Document and train: Record the UPS configuration, network settings, and shutdown procedures in the IT disaster-recovery playbook. Train operators and on-site staff to respond to power events and to perform safe, orderly shutdowns when required.

Frequently Asked Questions

• What is the capacity and voltage of this Eaton UPS? It is a 5000 VA (approximately 4500 W) online double-conversion UPS designed for 208V IT environments.
• What outlets are included on the unit? The UPS provides 18x NEMA 5-20R outlets, 2x L6-20R outlets, and 1x L6-30R outlet for flexible power distribution to servers, switches, storage devices, and network gear. The input connector is a locking L6-30P plug.
• Does it include network management features? Yes. The Cybersecure Network Card enables secure remote monitoring and management, with integration into Eaton IPM software or compatible SNMP tools for proactive power management.
• Can I extend runtime if outages are longer than expected? Absolutely. The unit supports Extended Run with optional external battery modules to increase backup time for critical workloads.
• What deployment options does this UPS offer? The 6U enclosure supports rack mounting in standard 19-inch racks or can be used as a tower for smaller spaces, offering flexible deployment in data centers, edge rooms, and network closets.
