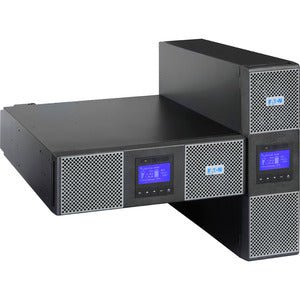

Eaton 9PX 6000VA Online Double-Conversion UPS — 120/208V, 6U Rack/Tower with Extended Run and Cybersecure Network Card

Protect your IT infrastructure with a premium power solution designed for reliability, scalability, and security. The Eaton 9PX 6000VA Online Double-Conversion UPS delivers clean, continuous power to servers, edge devices, and network equipment, ensuring data integrity and maximum uptime even in challenging electrical environments. Built for both rack and tower deployments, this 6U enclosure fits seamlessly into standard 19-inch racks while offering flexible outlet configurations and robust management features. Ideal for data centers, corporate IT rooms, edge deployments, and hybrid environments, the 9PX 6000VA combines advanced power protection with intelligent runtimes and proactive health monitoring to simplify administration and minimize downtime.

• rugged online protection with industry-leading efficiency — true online double-conversion technology delivers clean, continuous power with minimal transfer times, safeguarding against blackouts, brownouts, voltage sags, surges, and line noise. With high-efficiency operation, the 9PX helps reduce energy costs while preserving sensitive IT gear and uptime.
• flexible 6U rack/tower form factor — engineered to fit both 19-inch racks and standalone tower setups. The compact 6U enclosure supports scalable deployment in data centers, server rooms, or edge locations, enabling clean cable management and simple maintenance without sacrificing capacity or performance.
• comprehensive outlet configuration for diverse devices — 18x NEMA 5-20R outlets plus 2x NEMA L6-20R and 1x NEMA L6-30R provide a broad mix of 120V/208V outlets to accommodate servers, storage, networking gear, PDUs, and peripherals. This versatile outlet footprint minimizes jumper cables and simplifies power distribution in mixed environments.
• extended runtime with hot-swappable battery options — when longer backup is required, add external battery packs to extend runtime during outages, giving applications and workloads the resilience they need to gracefully shut down or sustain critical operations. The extended run capability is designed to keep essential services online during longer power interruptions.
• cybersecure network management for modern IT end-to-end security — includes a Cybersecure Network Card for secure remote management, along with support for standard IT management tools and protocols. Monitor voltage, runtime, battery health, and event logs remotely through secure interfaces, minimizing risk and simplifying policy enforcement across distributed environments.

Technical Details of Eaton 9PX 6000VA 5400W Online Double-Conversion UPS

• Power rating: 6000 VA / 5400 W, delivering scalable protection for mid-sized IT workloads and edge deployments.
• Output voltage and waveform: nominal 120V/208V (selectable/output-sensing to support mixed IT environments) with a clean sine-wave output suitable for sensitive servers, storage, and networking gear.
• Input and efficiency: online double-conversion topology provides continuous isolation from input disturbances; high efficiency in normal operation helps reduce energy costs while maintaining performance.
• Form factor and mounting: 6U rack/tower design for flexible installation in standard 19-inch racks or standalone configurations, enabling quick deployment in data centers or edge sites.
• Outlet configuration: 18x 5-20R, 2x L6-20R, 1x L6-30R, offering a wide mix of standard and locking outlets to support diverse IT equipment and power cords.
• Management and security: includes a Cybersecure Network Card for secure remote management; supports integrated management with Eaton software and common network management protocols for monitoring, alerting, and firmware updates.
• Battery system and runtime options: internal battery module with the option to attach Extended Run external battery packs for longer runtimes; batteries are designed for hot-swapping to minimize downtime during maintenance or replacement.
• Protection and monitoring features: automatic voltage regulation (AVR), surge protection, hot-swappable batteries, self-test diagnostics, and battery health monitoring help protect equipment and extend service life.
• Management interfaces: local LCD interface for quick on-site configuration and status checks; USB and serial ports for direct connection; a Cybersecure Network Card enables secure remote administration and integration with standard IT management tools.
• Warranty and reliability: designed for continuous uptime in demanding environments, with Eaton’s support ecosystem for deployment, monitoring, and service, ensuring long-term reliability and assistance when needed.

Key benefits of the Eaton 9PX 6000VA UPS extend beyond mere power delivery. The system offers precise voltage regulation that preserves data integrity during imperfect mains conditions and surges, reducing the likelihood of server crashes and database corruption. Its online double-conversion architecture ensures that even when the utility grid is unstable, the connected equipment receives clean, uninterrupted power. Embedded energy-management features help optimize runtime and efficiency, while the 6U footprint saves valuable rack space and streamlines deployment in mixed IT environments. The combination of extended run capability and robust battery management delivers a flexible, future-ready solution that scales with your organization’s evolving needs.

In addition to raw protection, the 9PX is built to simplify operation. The LCD control panel provides at-a-glance status information, while the remote management card opens up secure, centralized monitoring across multiple sites. IT teams can schedule maintenance, perform firmware updates, and set up alert thresholds to ensure proactive response to power events. The combination of secure remote management and local visibility makes it suitable for enterprises that require strict governance, regulatory compliance, and detailed audit trails for power-related incidents.

When considering an uninterruptible power supply for IT installations and edge networks, you need a solution that can handle the growth of your infrastructure. The Eaton 9PX 6000VA is designed to scale with you. You can start with essential rack deployment in a single rack unit and expand to a fully redundant, enterprise-grade configuration as your data center grows. This flexibility ensures that you can optimize capital expenditure while maintaining the highest levels of fault tolerance and performance for critical devices, virtual machines, databases, and network infrastructure.

How to install Eaton 9PX 6000VA - Quick installation guide

Installing the Eaton 9PX 6000VA UPS is straightforward and designed to minimize downtime during deployment. Follow these high-level steps to ensure a safe, efficient setup that delivers optimal protection from day one:

• Plan your layout: determine whether you will mount the unit in a rack or place it in a sturdy tower position. Confirm the 6U space in the rack and ensure there is adequate clearance for airflow and front-panel access.
• Mounting: use the included rack-mount kit or feet for tower installation. Securely fasten the UPS to the rack rails, ensuring it is level and stable to prevent vibration or movement during operation.
• Power connections: connect the UPS to a properly rated AC circuit using the appropriate input connector. Verify that the circuit can handle the load and that the feed is protected by an appropriate breaker or fuse.
• Connect IT equipment: attach the power cords from servers, storage devices, and networking gear to the UPS outlets according to your power distribution plan. Distribute critical and non-critical devices across the remaining outlets to allow selective shedding during battery operation if needed.
• Network and management setup: install the Cybersecure Network Card in the designated slot and connect the UPS to your management network. Use the LCD interface to configure basic settings or update firmware through the management software. Set alert thresholds, battery test schedules, and runtime preferences to align with your service-level objectives.
• Battery health and testing: perform a graceful self-test via the LCD or management interface. Confirm battery health, runtime estimates, and alarm behavior to ensure accurate protection and timely notifications in case of degradation or fault.
• Runtime planning: if you anticipate extended outages, attach external battery modules to extend run time. Plan your critical-load runtime requirements and test with representative workloads to validate that the UPS meets your business continuity objectives.
• Documentation and ongoing care: keep a copy of installation schematics, outlet mappings, and management credentials. Regularly monitor the system through the Cybersecure Network Card and perform firmware updates according to Eaton’s maintenance guidelines.

Frequently asked questions

• What is the protection level of the Eaton 9PX 6000VA UPS? It provides online double-conversion protection, delivering a clean sine-wave output that isolates sensitive IT equipment from mains irregularities, outages, and surges while maintaining continuous power to critical devices.
• What does Extended Run mean for this model? Extended Run refers to the ability to add external battery packs (EBMs) to the UPS to prolong backup time during longer outages, enabling graceful shutdowns or continued operation of essential workloads.
• How many outlets does it have and what types? The unit offers 18x 5-20R outlets, 2x L6-20R outlets, and 1x L6-30R outlet, providing a versatile mix of standard and locking connectors for a range of devices and cords.
• Is a network management card included? Yes, the package includes a Cybersecure Network Card, enabling secure remote management and integration with standard monitoring tools and protocols.
• Can the 9PX be rack-mounted or used as a tower? Yes. The 6U form factor supports both 19-inch rack mounting and standalone tower installation for flexible deployment in data centers and edge environments.
• What kind of maintenance is required? Regular firmware updates, battery health checks, and battery self-tests are recommended to maintain peak protection. Use the management interface to monitor runtime, load, battery status, and potential warnings.
