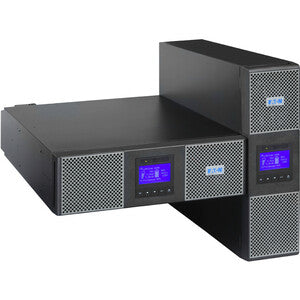

Eaton 9PX 6000VA Online Double-Conversion UPS

The Eaton 9PX 6000VA online double-conversion UPS delivers enterprise-grade resilience for IT installations and edge networks. Built to shield servers, networking gear, storage, and other critical devices from power disturbances, this 6kVA / 5.4kW system ensures clean, uninterrupted power and rapid protection against outages, brownouts, surges, and line noise. With flexible mounting options, a robust outlet configuration, and built-in cybersecurity features, it’s designed to keep uptime high and data integrity intact in challenging electrical environments. Whether you’re deploying in a data center rack, a telecom closet, or a small enterprise edge site, the 9PX 6000VA combines reliability, efficiency, and secure remote management in a compact form factor.

• Online double‑conversion protection: The online double-conversion topology provides continuous, isolated power by always converting incoming AC power to DC and then back to perfectly regulated AC. This isolates connected equipment from input variability, voltage sags, and transient spikes, delivering pristine power to ensure data integrity and application stability even during severe power events.
• High-capacity power for IT gear: With a rating of 6 kVA / 5.4 kW, this UPS supports servers, storage systems, network switches, edge devices, and other critical IT components. Its ample runtime capacity helps maintain operations during short outages and supports orderly shutdowns during longer interruptions.
• Versatile input/output and outlets: Designed for real-world deployments, it supports 120V / 208V operation. The configuration includes an input connector L6-30P and an array of outlets for flexible connections: 6x 5-20R, 1 L6-30R, and 1 L14-30R, enabling you to power a mix of devices with the correct plug types from a single power source.
• 6U rack/tower enclosure with cybersecurity: The unit is a 6U enclosure that can be mounted in a standard rack or used as a tower, maximizing installation flexibility. It also includes a Cybersecure Network Card for secure, remote management and monitoring, helping IT teams safeguard access and automate power events from a centralized console.
• Extended Run and efficiency for uptime savings: The 9PX 6000VA supports Extended Run, allowing longer operation during prolonged outages and enabling orderly shutdowns or continued service with battery support. Its design emphasizes performance efficiency, reducing energy waste while delivering reliable protection for connected equipment.

Technical Details of Eaton 9PX 6000VA Online Double-Conversion UPS

• Model: Eaton 9PX 6000VA
• Capacity: 6000 VA / 5400 W
• Output voltage: 120/208 VAC
• Topology: Online double-conversion (double conversion) UPS
• Form factor: 6U rack/tower
• Input connector: L6-30P
• Output receptacles: 6x 5-20R, 1x L6-30R, 1x L14-30R
• Network security: Cybersecure Network Card included
• Runtime option: Extended Run capability

how to install Eaton 9PX 6000VA Online Double-Conversion UPS

Setting up the Eaton 9PX 6000VA is a straightforward process designed for minimal downtime and maximum protection from day one. Follow these practical steps to ensure a safe, reliable, and efficient installation that aligns with best practices for IT power protection:

• Plan your placement: Select a secure, ventilated location with adequate clearance around the unit. If you’re mounting in a rack, ensure the 6U space is accessible for cable management and maintenance. Avoid placing the UPS where heat buildup or direct sunlight could affect performance or battery life.
• Rack or tower setup: Decide between rack mounting or stand-alone tower deployment. The 6U chassis is designed to support both configurations, but the wiring and cable routing will differ. If rack-mounted, attach the unit using appropriate rails and ensure stable support to prevent movement during maintenance.
• Connect the input power: Connect the input plug to a dedicated, correctly rated circuit. The L6-30P connector requires a 30A circuit with proper grounding. Verify that the circuit is capable of handling the startup surge and the expected continuous load from the UPS and connected devices.
• Power distribution planning: Map your devices to the UPS outlets: use 6x 5-20R outlets for typical servers or network gear, plus the L6-30R and L14-30R outlets for equipment that requires heavier plugs or a different connection standard. Avoid overloading any single outlet bank; spread critical equipment across multiple outlets to balance load and preserve runtime margins.
• Network card and security: Install the Cybersecure Network Card if it isn’t already integrated. Connect the UPS to your network via Ethernet and configure secure access policies to protect management interfaces. This enables remote monitoring, alerting, and safe policy enforcement for shutdown procedures during outages.
• Battery and self-test: Power on the unit and allow the built-in battery to perform its initial self-test. This will confirm battery health and controller integrity. If the self-test highlights issues, consult the manual or contact support before placing the UPS into production.
• Management and software configuration: Install Eaton Power Management software or compatible agents on your servers or management station. Configure notification thresholds, automatic shutdown sequences, event logging, and network-based monitoring. Set up alerting for low battery, overload, and fault conditions to respond promptly during outages.
• Operational verification: With a simulated power disturbance or a controlled outage, verify that connected equipment remains powered and that graceful shutdowns occur when battery depletion necessitates it. Confirm that the UPS transitions smoothly to battery mode and that monitoring software reports the expected status and runtime estimates.

Frequently asked questions

• What is the runtime of the Eaton 9PX 6000VA at full load? Runtime varies with the load and battery condition. The Extended Run capability extends available runtime, enabling longer operation during outages. For precise runtime figures, consult the latest Eaton specifications or run a battery test with your actual load to obtain realistic estimates.
• Which voltages does this UPS support? The UPS supports 120V and 208V configurations, making it suitable for common IT environments in North America and select international installations where 208V power is available.
• How many outlets does it have and what types are included? The unit provides 6x 5-20R receptacles plus 1x L6-30R and 1x L14-30R, giving a total of eight outlets with a mix of standard and heavier-duty connectors to accommodate diverse equipment.
• Can the 9PX be mounted in a rack? Yes. It is designed as a 6U rack/tower unit, allowing convenient rack mounting in data centers and equipment rooms or flexible tower deployment for space-constrained environments.
• Does it include cybersecurity features? Yes. The unit ships with a Cybersecure Network Card, enabling secure remote management, authentication, and encrypted communications for safe power management in connected networks.
• What kind of maintenance is required? Regular battery health checks, firmware updates when available, and periodic self-tests are recommended. Use the included management software to monitor battery conditions and schedule preventive maintenance to maximize uptime and reliability.
