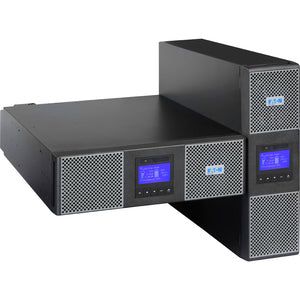

Eaton 9PX 6000VA 208V Online Double-Conversion UPS

Protect your IT infrastructure with the Eaton 9PX 6000VA 208V Online Double-Conversion UPS. Designed for data centers, edge deployments, and mission-critical server rooms, this 3U rack/tower unit delivers clean, reliable power and intelligent runtime management. With online double-conversion technology, hot-swappable batteries, flexible output options, and enhanced security through a Cybersecure Network Card, this UPS shields servers, storage, and networking gear from outages, brownouts, surges, and line noise while enabling graceful shutdowns and efficient energy use. Its compact form factor and scalable runtime make it ideal for tight spaces and evolving workloads often found in modern IT environments.

• Uninterrupted, clean power for critical equipment: Online double-conversion topology continuously transforms incoming power to a pristine internal DC, then back to a high-quality, perfectly regulated AC output, delivering a pure sine wave to sensitive hardware.
• 208V performance with ample headroom: 6000 VA / 5400 W capacity at 208V accommodates dense server racks, storage arrays, and networking gear while maintaining strong surge and fault protection.
• Flexible 3U form factor (rack/tower): Deploy in standard data center racks or convert to a tower for edge deployments, telecom rooms, or compact IT spaces without sacrificing performance.
• Extended Run and hot-swappable batteries: Optional external battery modules extend runtime to meet prolonged outages; batteries are hot-swappable for minimal downtime and easy maintenance.
• Cybersecure monitoring and secure network management: Includes a Cybersecure Network Card for secure remote management, enhanced visibility, energy analytics, remote shutdown, and policy enforcement across the network.

Technical Details of Eaton 9PX 6000VA 208V Online Double-Conversion UPS

• Model: Eaton 9PX6000 (208V, 1-phase) with 3U rack/tower form factor
• Capacity: 6000 VA / 5400 W
• Output topology: Pure sine wave through online double-conversion for clean, stable power
• Input configuration: 208 VAC, 1-phase input with L6-30P connector
• Output connections: Hardwired output configuration with 2 x L6-20R and 2 x L6-30R receptacles, designed for reliable rack power distribution
• Form factor: 3U rack/tower versatility for data centers and edge environments
• Batteries: Hot-swappable battery modules allow quick replacement without powering down protected loads; scalable runtime with optional ERM (Extended Run Modules)
• Battery chemistry: VRLA (Valve-Regulated Lead-Acid) batteries designed for long life and reliable performance
• Networking and security: Includes Cybersecure Network Card for secure remote monitoring, access control, and encrypted communications; USB and serial connectivity often available for local management
• Management software: PowerChute and Eaton monitoring solutions provide graceful shutdown, energy usage analytics, and remote management
• Protection and standards: Surge suppression, brownout protection, line noise filtering, UL/CE/RoHS compliance
• Cooling and efficiency: Optimized cooling for continuous operation with high-efficiency performance in online operation

How to install Eaton 9PX 6000VA 208V Online Double-Conversion UPS

• Plan placement and orientation: Determine a secure rack location that allows proper airflow and easy access to input power, output connections, and network interfaces. Decide between rack-mount or tower deployment based on space and cabling needs.
• Mounting the unit: Install the UPS in a stable rack or place it on a solid surface if used in tower mode. Use the included mounting hardware or rails to secure the 3U chassis and prevent movement during maintenance or power events.
• Connect input power: Connect the L6-30P input cord to a dedicated 208V single-phase power source with proper circuit protection. Ensure that the circuit can support the startup surge and the expected runtime with ERMs installed.
• Connect protected loads: Link critical servers, storage, and networking devices to the UPS output, using the hardwired output configuration (L6 connectors) as specified for your installation. Verify that total connected load remains within the 5400 W rating.
• Install the Cybersecure Network Card (if not pre-installed): Insert the Cybersecure Network Card into the designated NIC slot and connect the UPS to the network. Configure secure access and permissions to enable remote monitoring, alerts, and controlled shutdowns.
• Power on and configure: Turn on the UPS, perform a self-test, and configure parameters such as runtime options, alarm thresholds, notification emails, and shutdown policies via the LCD interface or Eaton Power Management software (PowerChute).
• Enable Extended Run if needed: If longer outages are anticipated, install external battery modules (ERM) and configure runtime settings to achieve the desired backup duration for critical loads.
• Conduct initial test: Simulate a power event to verify uninterrupted transfer to battery, verify signaling to connected equipment, and confirm proper shutdown sequences for attached servers and devices.

Frequently asked questions

• Q: What is the purpose of the Cybersecure Network Card?
  A: It provides secure remote management, encrypted communications, and robust monitoring capabilities to protect access to the UPS and ensure safe, centralized control of power events across your network.
• Q: Can I expand runtime with this UPS?
  A: Yes. The Eaton 9PX supports Extended Run Options (ERM) with hot-swappable batteries and external battery modules to lengthen runtime for mission-critical workloads during outages.
• Q: Is this UPS suitable for 208V IT environments?
  A: Absolutely. The model is designed for 208V single-phase input with a 208V output, making it ideal for IT closets, edge data centers, and telecom rooms.
• Q: What kind of protection does it offer?
  A: It provides online double-conversion power protection, clean sine-wave output, surge suppression, EMI/RFI filtering, and voltage regulation to shield equipment from spikes, sags, and line noise.
• Q: Does it come with management software?
  A: Yes. Eaton PowerChute and related monitoring solutions are supported to enable graceful shutdowns, energy analytics, and centralized management across devices.
• Q: Are the batteries user-replaceable?
  A: Yes. The design uses hot-swappable VRLA batteries, making replacement quick and minimizing downtime.
