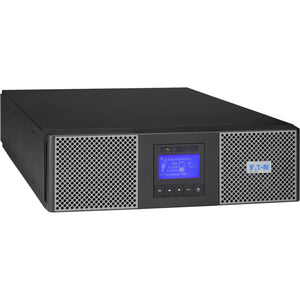

Eaton 9PX 8000VA 7200W 208V Online Double-Conversion UPS - Hardwired Input, 18x 5-20R, 2 L6-30R Outlets, Cybersecure Network Card, Extended Run, 9U Rack/Tower

The Eaton 9PX 8000VA 7200W 208V Online Double-Conversion UPS is built for mission-critical IT environments where uptime, data integrity, and predictable power matter most. This 9U rack/tower solution delivers premium protection for servers, storage devices, networking gear, and edge compute deployments. With an online double-conversion topology, hardwired input, and a robust output designed for 208V environments, you gain clean, isolated, and highly regulated power that shields sensitive equipment from blackouts, brownouts, surges, and line noise. When your operation hinges on uninterrupted performance, the 9PX 8000VA stands out by combining scalable runtime, versatile mounting options, and advanced remote management features into a single, space-efficient package.

Designed to fit demanding data-center and edge installations, this UPS is not just a power buffer; it’s an investment in reliability. The unit’s rugged construction and modular design simplify maintenance and future upgrades, while its comprehensive connectivity ensures you stay in control even when you’re away from the rack. With 18 outlets configured as 5-20R and two additional L6-30R outlets, you can consolidate critical IT loads in a single protective enclosure, eliminate tangled power strips, and reduce voltage-related equipment failures. The included Cybersecure Network Card provides secure, remote visibility and control, enabling administrators to monitor, report, and gracefully shut down systems during outages to prevent data loss. And when normal power isn't enough, Expanded Run capability via external battery cabinets lets you extend uptime to meet service-level targets during extended outages or planned maintenance windows.

• High-capacity power with real-time protection: 8000 VA / 7200 W capacity at 208V delivers ample headroom for mid-to-large IT loads, ensuring critical devices stay online during brief outages and recover swiftly after disturbances.
• Online double-conversion topology for pristine power: True online operation continuously converts incoming AC to DC, then back to clean, regulated AC, providing tight voltage regulation and isolation from input noise, harmonics, and transients that can degrade IT equipment or corrupt data.
• Flexible outlet configuration for dense racks: 18 x 5-20R outlets plus 2 x L6-30R outlets offer generous, organized protection for servers, switches, storage, and other equipment in a compact 9U footprint.
• Hardwired input for data-center-grade integration: A hardwired input minimizes energy loss, simplifies distribution, and aligns with standard data-center electrical schemes, improving reliability and ease of installation.
• Cybersecure management and scalable runtime: The included Cybersecure Network Card enables secure remote monitoring, management, and automatic shutdowns. When you need longer runtimes, extend capacity with optional external battery cabinets (Extended Run) and scalable runtime to meet critical performance targets.

Techncial Details of Eaton 9PX 8000VA 7200W 208V Online Double-Conversion UPS - Hardwired Input, 18x 5-20R, 2 L6-30R Outlets, Cybersecure Network Card, Extended Run, 9U Rack/Tower

• Model and capacity: 9PX series, 8000 VA / 7200 W, designed for 208V systems.
• Topology: Online double-conversion (true online UPS) to provide continuous clean power and robust isolation from utility disturbances.
• Input configuration: Hardwired input configuration for secure, scalable integration in data centers and edge rooms.
• Output and outlets: 208V output with 18 x 5-20R receptacles and 2 x L6-30R receptacles to cover dense rack layouts and mixed-load deployments.
• Power management and security: Cybersecure Network Card included for secure remote management, monitoring, and safe shutdowns; supports Eaton IPM software and secure network access.
• Extended Run capability: Optional Extended Run via external battery cabinets to extend uptime during prolonged outages and to support orderly maintenance windows.
• Form factor: 9U rack/tower convertible, allowing flexible mounting in standard 19-inch racks or standalone floor deployments.
• Protection features: Provides protection against blackouts, brownouts, surges, and line noise; maintains stable output even under fluctuating utility conditions.
• Serviceability and coherence: Designed for straightforward maintenance, modular components, and compatibility with Eaton’s diagnostics and firmware updates for long lifecycles.
• Operating environment: Optimized for IT rooms and edge installations where compact footprint, high density, and reliable power are essential.

With the Eaton 9PX 8000VA, you’re not just buying a power backup; you’re deploying a protective backbone for critical applications. This UPS delivers power conditioning, precision regulation, and fault tolerance that modern IT environments demand. The 18x 5-20R outlets and 2x L6-30R outlets are arranged to accommodate dense rack configurations, providing ample, well-organized protection for blade servers, virtualization hosts, NAS/SAN units, hyperconverged infrastructure, and core networking equipment. The 208V output is tailored for enterprise data centers and specialized facilities that rely on high-voltage power distribution, ensuring compatibility with existing electrical infrastructure while reducing the need for adapters and conversion losses. The Cybersecure Network Card is a cornerstone of the system’s security posture, enabling role-based access, encrypted data transmission, and secure remote shutdowns to preserve data integrity during outages or unattended scenarios.

The Extended Run capability is a strategic advantage for organizations facing longer outages or those requiring extended maintenance windows. By pairing the 9PX with external battery cabinets (EB series), you can tailor runtime to meet service-level objectives and system-critical workloads, balancing cost with uptime guarantees. The rack/tower flexibility means you can deploy this UPS in a traditional data center rack or position it as a standalone unit in network closets or edge rooms, preserving valuable floor space while ensuring robust, continuous power delivery.

Operational efficiency and reliability are reinforced through thoughtful design elements, such as robust input filtering to mitigate incoming disturbances, advanced battery management to maximize runtime and lifespan, and comprehensive monitoring options that align with IT service management practices. Whether you’re safeguarding a small data center or an edge deployment with demanding latency and uptime requirements, the Eaton 9PX 8000VA offers a compelling combination of power quality, protection, and intelligent management to keep critical services online and data safe.

how to install Eaton 9PX 8000VA 7200W 208V Online Double-Conversion UPS

Follow these steps to install and configure the Eaton 9PX for reliable protection and seamless operation:

• Choose the mounting location and orientation that fits your space. This unit is designed for 9U rack mounting or can be configured as a tower, giving you flexible installation options in data centers, network closets, or edge environments.
• Mount the UPS securely in a standard 19-inch rack using provided rails or base mounting hardware. Ensure the location has adequate clearance for ventilation and service access.
• Connect the UPS input to your building electrical supply via the hardwired input configuration. Use appropriately rated cables and follow local electrical codes. Ground the unit according to manufacturer guidelines to ensure proper protection against faults.
• Connect protected equipment to the outlets: distribute critical devices across the 18 x 5-20R outlets for servers, storage, and switches, while using the 2 x L6-30R outlets for higher-powered equipment or dedicated circuits as needed.
• Install the Cybersecure Network Card if not already included, and connect the card to your network using a secure Ethernet connection. This enables remote monitoring, alerts, and centralized shutdown policies through Eaton IPM or compatible management platforms.
• Power up the UPS and perform a basic startup sequence. Confirm that the UPS detects the connected loads and that the battery status indicates healthy runtime. Run a self-test to verify protection is active.
• Install and configure Eaton’s power management software (IPM) on your server or management workstation. Set up monitoring thresholds, notifications, and automated shutdown scripts to protect virtualized environments and ensure graceful shutdown during outages.
• Consider runtime optimization by planning for an Extended Run configuration with external battery cabinets if your organization requires longer outage protection. Plan the runtime to align with your RPO/RTO objectives and budget.
• Schedule periodic tests and maintenance checks, including battery health checks, firmware updates, and network card security reviews. Document the test results to demonstrate compliance with internal IT policies and service-level agreements.

Frequently asked questions

• What loads can the Eaton 9PX 8000VA protect? It is designed to support mid-to-large IT loads, including rack servers, storage systems, network switches, and virtualization hosts. With 7200 W of output power at 208V, you can plan protected workloads with confidence and leave headroom for demand spikes.
• Can I expand runtime beyond the built-in capacity? Yes. The Extended Run feature allows you to add external battery cabinets to increase runtime, enabling longer maintenance windows or extended outages without sacrificing data integrity.
• How do I monitor and manage the UPS securely? The Cybersecure Network Card provides secure remote management. You can monitor status, receive alerts, perform graceful shutdowns, and integrate with Eaton IPM or compatible monitoring tools over your network.
• Is this UPS suitable for 208V environments? Absolutely. The unit is specified for 208V operation, with a 208V output designed to support typical enterprise IT equipment configured for this voltage, minimizing the need for voltage conversion in your rack.
• Can I use this UPS in a rack and in a tower? Yes. The Eaton 9PX 8000VA is a 9U rack/tower convertible unit, providing flexible installation to fit your space, whether in a standard server rack or as a standalone tower in edge deployments.
• What maintenance is required? Regular battery health checks, firmware updates, management card security updates, and periodic self-tests are recommended to maintain peak performance and extend fault-free operation.
• Does it protect against data loss during outages? While the UPS provides continuous power and clean output, it’s essential to pair it with proper server OS shutdown policies and backups. The managed shutdown feature minimizes data loss by ensuring orderly system power-downs during extended outages.
