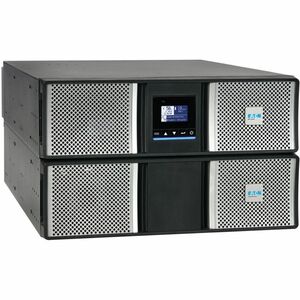

Eaton 9PX G2 5000VA UPS | 208/120V Online Double-Conversion with Extended Run

Protect your critical IT infrastructure with the Eaton 9PX G2 5000VA 5000W Online Double-Conversion UPS. This high-performance uninterruptible power supply delivers clean, reliable power for servers, networking gear, and storage systems. Designed for data centers, server rooms, and demanding office environments, it combines robust protection, flexible connectivity, and scalable runtime in a compact 6U rack/tower form factor. With an input option of L6-30P or hardwired, generous outlet configurations (18x 5-20R, 2x L6-20R, 1x L6-30R), and a Cybersecure Network Card for secure remote management, the Eaton 9PX G2 is engineered to minimize downtime and optimize energy efficiency while simplifying installation and maintenance.

• Pure sine wave, online double-conversion protection: The 9PX G2 delivers continuous, regulated power with a pristine output waveform, protecting sensitive servers, storage devices, and network equipment from outages, brownouts, and power disturbances. Its online topology keeps connected devices running smoothly even during utility fluctuations, helping prevent data loss and system crashes.

• Flexible input and comprehensive outlet configuration: With input options including L6-30P or hardwired connections, plus 18x 5-20R outlets, 2x L6-20R, and 1x L6-30R, this UPS accommodates a wide range of equipment and cabling layouts. It supports heavy loads in modern server rooms while maintaining easy accessibility for maintenance and rapid equipment swaps.

• Cybersecure Network Card for secure remote management: The included Cybersecure Network Card enables remote monitoring, secure updates, and centralized control through Eaton’s management software. Enjoy reliable network visibility, SNMP compatibility, and safer firmware updates, all designed to strengthen your cybersecurity posture while simplifying IT operations.

• Extended Run capability with modular battery options: When longer runtimes are required, the Eaton 9PX G2 supports additional battery modules to extend backup time during outages. Hot-swappable batteries minimize downtime, keeping workloads online while replacements are performed, which is ideal for data centers and critical applications.

• 6U rack/tower versatility with quiet, energy-efficient operation: The compact 6U form factor fits neatly into standard 19-inch racks while offering flexible tower deployment. Designed for efficiency, it reduces heat output and power consumption in daily operation, helping to lower total cost of ownership and preserve data-center cooling resources.

Technical Details of Eaton 9PX G2 5000VA 208/120V UPS

• UPS rating: 5000 VA / 5000 W, online double-conversion topology for continuous power quality.
• Input: 208/120V single-phase input with L6-30P or hardwired input configuration options.
• Output: 208/120V single-phase, regulated sine wave suitable for servers, storage, and networking equipment.
• Receptacles: 18x 5-20R, 2x L6-20R, 1x L6-30R to support a wide range of loads and cabling needs.
• Form factor: 6U rack/tower, designed for data centers, IT rooms, and space-constrained environments.
• Management and security: Includes Cybersecure Network Card for secure remote management and monitoring via standard Eaton software and network protocols.
• Runtime extension: Supports optional battery modules for Extended Run capability; batteries are hot-swappable for minimal downtime during replacements.
• Protection features: AVR (automatic voltage regulation), surge protection, and clean, continuous power while absorbing disturbances from the utility grid.
• Target applications: Ideal for critical IT infrastructure, virtualization hosts, database servers, network gear, and storage systems requiring high reliability and uptime.

How to install Eaton 9PX G2 5000VA UPS

• Plan installation location in a cool, well-ventilated area with adequate clearance for airflow and access to cables. Verify the rack or floor mounting surface and ensure the weight can be supported when fully loaded with batteries and connected gear.
• Decide whether to install the unit in a 19-inch rack or in a tower configuration. The 6U form factor is designed for both, so prepare mounting rails or a stable base accordingly and secure the UPS to prevent movement during operation or maintenance.
• Shut down and unplug all connected equipment prior to installation. Verify that power sources match the UPS input configuration (L6-30P or appropriate hardwired connection) and have the proper cables ready for safe hookup.
• Mount the unit and connect the input power to the L6-30P receptacle or to the dedicated hardwired input as required by site power. Ensure circuit protection (breaker) is appropriate for the UPS input rating and that wiring follows local electrical codes.
• Connect critical loads to the receptacles on the UPS. Group mission-critical devices on the main outlets and reserve auxiliary outlets for non-essential equipment or for maintenance tasks. Label each circuit for quick identification during an outage.
• Install the Cybersecure Network Card in the designated card slot and connect the UPS to your network. Configure network settings and access credentials using Eaton’s software suite. Enable secure remote monitoring, alerts, and firmware updates as part of ongoing IT resilience.
• Power on the UPS and allow it to reach a stable operating state. Run a self-test from the management interface to verify battery health, hardware status, and communication with connected devices.
• Configure notifications, shutdown policies, and integration with your virtualization or hypervisor environment. Determine whether you will use local management, remote monitoring, or a combination of both for efficient operations and rapid response to power events.
• Plan for runtime requirements by evaluating your load and considering optional battery modules for Extended Run. If added, integrate the battery modules according to the manufacturer’s instructions and test to confirm expected runtimes align with your service level targets.
• Document the installation and create a maintenance schedule. Include battery replacement timelines, firmware update windows, and a disaster recovery plan to ensure ongoing protection for your critical workloads.

Frequently asked questions

• What loads can the Eaton 9PX G2 5000VA protect? It is designed to support critical IT equipment such as servers, virtualization hosts, storage arrays, and network devices up to 5000W continuously, with clean, regulated power and protection from outages and disturbances.
• Can I extend runtime with battery modules? Yes. The 9PX G2 supports Extended Run by adding compatible battery modules. Batteries are hot-swappable, allowing maintenance without interrupting critical workloads.
• What management options are available? The UPS ships with a Cybersecure Network Card for secure remote management, and it integrates with Eaton’s management software for monitoring, alerts, and graceful shutdown automation.
• What input options does this unit offer? The unit can be configured with an L6-30P input or connected via a hardwired input, depending on site power, facility standards, and safety considerations.
• Is this unit suitable for a rack or a standalone installation? Yes. The Eaton 9PX G2 is designed for both 6U rack installations and tower deployments, offering flexibility to fit in data center racks or standalone equipment closets while maintaining quiet operation.
