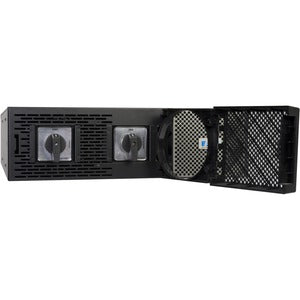

Eaton 9PX PowerPass Distribution Module for 5kVA to 6kVA 9PX UPS Systems, L6-30P Input, 3U Rack/Tower

EatonSKU: 3410260

Price:
Sale price$1,289.73

Description

Eaton 9PX PowerPass Distribution Module for 5kVA to 6kVA 9PX UPS Systems, L6-30P Input, 3U Rack/Tower

This Eaton 9PX PowerPass Distribution Module delivers a precise, scalable power distribution solution for 5kVA to 6kVA 9PX UPS systems. Designed to convert the UPS’s high-voltage output into practical, 120V outlets for your IT equipment, this 3U rack/tower PDU combines robust protection, adaptable outlet configurations, and seamless integration with Eaton’s trusted power protection ecosystem. Ideal for compact data centers, server rooms, and network closets, the PowerPass PDM helps you optimize space, simplify cabling, and ensure critical gear stays powered with clean, reliable voltage.

  • Precise 208V-to-120V power distribution: The PowerPass Distribution Module converts the UPS’s high-voltage output into safe, usable 120V power for mixed IT gear, enabling you to power racks with equipment that requires 120V while preserving the benefits of your 9PX UPS.
  • Flexible outlet configuration for diverse loads: Features one L6-30R, one L14-30R, and six NEMA 5-20R outlets, giving you a mix of 120V and higher-capacity 30A options to accommodate servers, storage, switches, PDUs, and peripherals in a single, tidy module.
  • Rugged 3U rack/tower form factor: Designed to fit seamlessly into standard 19-inch racks or sit in a chassis-friendly tower position, maximizing rack space while keeping cabling organized and accessible for maintenance.
  • Easy integration with Eaton 9PX UPS systems: Specifically engineered for 5kVA to 6kVA Eaton 9PX UPS units, ensuring reliable compatibility, streamlined monitoring, and coherent power management within the Eaton ecosystem.
  • Built-in protection and reliability features: The PDM includes protective features and overload awareness to help safeguard connected equipment, with straightforward wiring and robust construction for data centers and business-critical environments.

Technical Details of Eaton 9PX PowerPass Distribution Module

  • Model and purpose: Eaton 9PX PowerPass Distribution Module (PDM) designed for 5kVA–6kVA 9PX UPS systems to deliver 120V power from a 208V high-voltage UPS output.
  • Input interface: L6-30P inlet for a 30A, 208/250V supply, enabling dependable high-voltage input to the distribution module.
  • Output configuration: 1x L6-30R, 1x L14-30R, and 6x NEMA 5-20R outlets, providing a versatile mix of 120V and higher-capacity outlets for diverse devices within a single PDU.
  • Voltage and compatibility: 120V output from a 208V input system; optimized for Eaton 9PX UPS units in the 5–6 kVA range, delivering clean, protected power to critical equipment.
  • Form factor: 3U rack/tower, designed to fit standard 19-inch racks for space-efficient deployment in data rooms or network closets.
  • Protection and reliability: Includes integrated electrical protection features and overload safeguards to help maintain uptime and reduce risk of equipment damage.
  • Installation considerations: Intended for use in environments where 208V UPS outputs feed a 120V IT load, with proper grounding and adherence to local electrical codes.

How to install Eaton 9PX PowerPass Distribution Module

  • Prepare the installation site: Verify that your 9PX UPS is compatible (5kVA–6kVA) and ensure you have the appropriate rack space (3U) in a cool, well-ventilated area. Confirm that the electrical service can supply a 30A, 208/240V circuit and that a suitable earth ground is available for rack grounding.
  • Mount the PDM in the rack: Slide the PowerPass Distribution Module into the rack, aligning it with standard 19-inch mounting rails. Secure the unit with the provided screws to prevent movement during operation and maintenance.
  • Connect the input power: Attach the L6-30P input receptacle to a suitable 30A power source using an appropriate power cord rated for the environment. Ensure the connection is tight and that the power is off during the connection to prevent arcing or equipment damage.
  • Route and connect outputs: Plan a clean cable layout and connect critical devices to the L6-30R, L14-30R, and six NEMA 5-20R outlets. Group devices by priority and power requirements to optimize load distribution and minimize cable congestion.
  • Ground and safety checks: Verify that the PDM chassis is properly grounded and that all devices share a common ground path. Check that cords are not stretched, pinched, or placed where they could pose a trip hazard or obstruct cooling airflow.
  • Power up and verify operation: Power on the PDM and then the connected UPS. Use the UPS management software or the status indicators on the PDM to verify that outlets are delivering 120V and that there are no fault indicators. Confirm that critical devices receive stable power within acceptable tolerance ranges.
  • Test load distribution and monitoring: Gradually apply load to the outlets while monitoring voltage, frequency, and current. Ensure that the total load remains within the PDM and UPS specifications and that no single outlet is overloaded. If available, enable any monitoring features to track energy use and outlet health remotely.
  • Documentation and maintenance: Document the wiring diagram, outlet assignments, and UPS pairing for future maintenance. Schedule periodic inspections to verify cables, connections, and protective devices remain secure and compliant with local electrical codes.

Frequently asked questions

  • What is the Eaton 9PX PowerPass Distribution Module? It is a dedicated power distribution module designed to accompany Eaton’s 9PX UPS systems, converting a high-voltage UPS output (208V) to 120V outlets and providing a flexible mix of receptacles for equipment in data centers, server rooms, and network closets.
  • Which outlets does it include? The module includes one L6-30R, one L14-30R, and six NEMA 5-20R outlets, offering 120V connectivity for most IT devices while also supporting higher-load equipment via the L14-30R.
  • Which UPS models is this PDM compatible with? It is specifically designed for Eaton 9PX UPS models in the 5kVA to 6kVA range, enabling seamless integration within Eaton’s power protection ecosystem.
  • What voltages are involved? The input is a 208V high-voltage source, and the module provides 120V output outlets for standard IT equipment, helping to balance performance and safety in mixed-load environments.
  • How does installation affect uptime? By consolidating power distribution into a single, purpose-built PDU, you reduce cabling complexity, improve remote monitoring opportunities, and safeguard critical loads with built-in protections—contributing to higher reliability and better uptime.
  • Are there special safety considerations? Yes. Ensure proper grounding, follow electrical codes, verify load ratings on all outlets, and conduct test power-ups with non-critical equipment before connecting sensitive or mission-critical devices.
