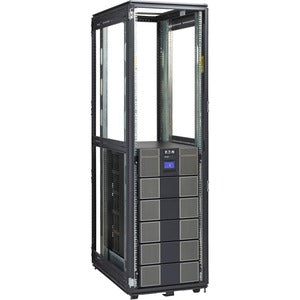

Eaton 9PXM 16kVA 14.4kW 208-240V Modular Scalable Online UPS with Cybersecure Network Card

The Eaton 9PXM UPS is a scalable, modular, online double-conversion uninterruptible power supply engineered for critical IT environments. Designed to deliver maximum reliability with the lowest total cost of ownership, the 9PXM uses four 4 kVA plug-and-play power modules to provide expandable N+X redundancy. This UPS fits eight- or twelve-slot tower enclosures and is optimized for 208–240V operation, delivering steady, clean power to preserve uptime for servers, storage, virtualization platforms, and network appliances. With hardwired input and output, built-in cybersecure network management, and a compact 14U footprint, the 9PXM is a future-proof solution for data centers, colocation facilities, and enterprise environments seeking scalable protection and simplified maintenance.

• Modular scalability with N+X redundancy: Expand capacity and availability by adding plug-and-play 4 kVA power modules to create a resilient, redundant power architecture that scales with your growing IT footprint.
• Reliable online double-conversion protection: Delivers consistent voltage, frequency, and waveform quality, ensuring sensitive equipment stays protected from outages, transients, and power disturbances.
• Hardwired input and output for enterprise reliability: Robust, field-proven connections designed for data center-grade installations, delivering dependable power delivery with clear, serviceable pathways.
• Cybersecure network management included: A Cybersecure Network Card is bundled with the unit, enabling secure remote monitoring, management, and integration with enterprise security policies.
• 14U, rack/tower versatility and easy maintenance: The 14U enclosure supports eight- or twelve-slot tower configurations, allowing flexible deployment in racks or as a compact tower for space-constrained environments.

Technical Details of Eaton 9PXM

• UPS Type: Modular scalable online double-conversion UPS designed for high availability and easy expansion.
• Rated Power: 16 kVA / 14.4 kW at 208–240 VAC.
• Input Voltage: 208–240 VAC (single-phase input in typical configurations).
• Output Voltage: 208–240 VAC, with precise voltage regulation to protect connected equipment.
• Form Factor: 14U enclosure compatible with eight- or twelve-slot tower configurations for flexible deployment between rack and floor-standing installations.
• Redundancy: N+X architecture enabled by four kVA plug-and-play power modules for scalable protection and high availability.
• Management & Security: Includes a Cybersecure Network Card for secure remote monitoring, management, and integration with IT security policies.
• Input/Output: Hardwired input and hardwired output connections for robust, compliant installations.
• Compliance: TAA-compliant product suitable for government and enterprise procurement.
• Installation & Maintenance: Modular design supports hot-swappable components, simplified maintenance, and rapid field upgrades to minimize downtime.

How to install Eaton 9PXM

• Plan the installation in a well-ventilated area with adequate airflow and clear access for service and cable routing.
• Decide between rack-mount or tower deployment; mount the 14U enclosure in a compatible rack or secure it as a stand-alone tower, ensuring the eight- or twelve-slot configuration aligns with your load and future expansion plans.
• Connect the hardwired input cables to the appropriate electrical feed per local codes and Eaton installation guidelines; ensure proper breaker sizing and grounding.
• Route and connect the hardwired output cables to the protected IT loads and distribution equipment, verifying correct polarity and label readability for maintenance and service.
• Install the Cybersecure Network Card, connect to your IT network, and configure network security settings according to your organization’s policy; enable remote monitoring via Eaton software or approved management platforms.
• Power on the UPS, perform initial configuration (input/output voltage range, sensitivity, and AVR settings), and verify that the unit reports normal operation and battery health status.
• Test critical loads by simulating a power event to confirm proper transfer to battery/inverter mode and seamless return to utility power when available.
• Document the installation with serial numbers, firmware versions, and configuration profiles to simplify future service and expansion.

Frequently asked questions

• Q: What makes the Eaton 9PXM a modular UPS?
  A: It uses plug-and-play 4 kVA power modules that can be added or replaced to scale capacity and redundancy, enabling N+X protection as your load grows.
• Q: What is the rated capacity and voltage?
  A: The 9PXM is rated at 16 kVA / 14.4 kW with an output of 208–240 VAC, making it suitable for modern data centers and enterprise IT environments.
• Q: Is network management included?
  A: Yes, a Cybersecure Network Card is included for secure remote monitoring and management of the UPS in IT networks.
• Q: Are input and output connections hardwired?
  A: Yes, both input and output connections are hardwired for reliable, enterprise-grade installation.
• Q: Is this UPS compliant with procurement requirements?
  A: Yes, the unit is TAA-compliant, meeting government and enterprise procurement standards.
