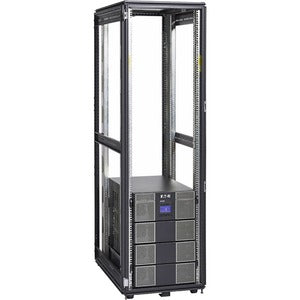

Eaton 9PXM 4-16 kVA 208/240V Split-Phase Modular Online UPS Cabinet

The Eaton 9PXM UPS cabinet is a premium, modular solution designed to protect critical power loads with unmatched reliability and flexible scalability. Built for data centers, enterprise edge deployments, and industrial environments, this 9PXM chassis delivers online double-conversion power protection with a scalable path from 4 kVA up to 16 kVA. Its split-phase 208/240V input and output, hardwired input/output, and versatile footprint options make it ideal for spaces where uptime is non‑negotiable. With hot-swappable battery and power modules, universal battery slots for extended runtime, and an optional cybersecure network card, the 9PXM is engineered to adapt to evolving IT needs while maintaining the highest standards of security and efficiency. Whether you’re deploying a compact rack solution or expanding to a larger rack or tower configuration, the 9PXM offers a future-proof UPS cabinet that grows with your IT backbone and ensures uninterrupted service for mission-critical applications.

• Modular, scalable design — Start with a compact 4 kVA configuration and dial up to 16 kVA as your load and redundancy requirements grow. The architecture supports seamless addition of battery and power modules without disruptive downtime, delivering sustained performance and extended runtime when you need it most.
• Online double-conversion protection — Delivering continuous, clean power with tight voltage regulation, the 9PXM maintains a stable output even in the face of input voltage sags, spikes, or outages. This technology isolates sensitive equipment from utility irregularities, preserving data integrity and extending the life of connected servers, storage, and networking hardware.
• Hardwired input and output — Secure, robust electrical connections designed for enterprise environments. The hardwired configuration supports stable, code-compliant installation and simplifies integration with existing electrical infrastructure, while delivering dependable performance for mission-critical workloads.
• Flexible footprint: 14U, rack or tower — The 9PXM is available in a 14U footprint with options for 14U or 21U expansions, enabling a range of rack or tower configurations to fit diverse data-center layouts or edge deployments. This flexibility helps optimize space utilization without sacrificing protection or performance.
• Cybersecure networking card option and compliance — An optional cybersecure network card provides hardened remote management and monitoring capabilities, safeguarding access to the UPS from cyber threats. The cabinet is designed to meet procurement standards, including TAA compliance, making it suitable for a wide range of commercial and government environments.

Technical Details of Eaton 9PXM

• Power rating — 4–16 kVA capacity to match a wide range of loads, from modest IT racks to larger server and storage deployments.
• Voltage and topology — 208/240V split-phase input and output; online double-conversion (double conversion) topology for continuous, high-quality power.
• Architecture — Modular chassis with hot-swappable battery and power modules, enabling rapid maintenance and runtime extension without system downtime.
• Form factor — 14U footprint with support for 14U or 21U rack or tower configurations to accommodate space constraints and layout preferences.
• Battery configuration — Universal battery slots designed for straightforward battery replacement and expansion to achieve longer runtimes during outages.
• Input/output integration — Hardwired input and hardwired output connections for robust, code-compliant installations and simplified cabling in data centers and industrial environments.
• Networking options — Optional cybersecure network card for hardened, auditable remote management and monitoring across networks.
• Compliance — TAA-compliant for government and enterprise procurement requirements, ensuring broad compatibility with purchasing programs.
• Reliability and serviceability — Enterprise-grade components and hot-swappable modules designed to minimize maintenance windows and maximize uptime.

How to install Eaton 9PXM

• Prepare the site — Select a clean, ventilated, vibration-free space with adequate clearance for cooling and service access. Ensure the installation area complies with electrical codes and local regulations for UPS equipment.
• Mount the cabinet — Install the 14U chassis in a compatible rack or place it in a secure tower configuration based on space requirements. Secure the unit to prevent movement and ensure stable anchoring for safety and reliability.
• Connect power paths — Wire the hardwired input and output per manufacturer guidelines and local electrical standards. Verify proper grounding and shielded cabling where appropriate to minimize interference and maximize protection.
• Install battery and power modules — Insert hot-swappable battery modules and power modules as needed to achieve the desired runtime and redundancy. Ensure all modules are firmly seated and that interlocks are engaged.
• Configure management and networking — If you’re using the cybersecure network card, install and configure the card according to the provided administration guide. Connect the UPS to your monitoring environment (SNMP, web interface, or other supported protocols) and set alert thresholds, shutdown policies, and maintenance schedules.
• Commission and test — Power up the system, verify input/output voltages, perform a self-test, and confirm the UPS maintains output during simulated disturbances. Validate that runtime extension features and hot-swap functionality operate as intended.
• Documentation and labeling — Record the UPS configuration, serial numbers of all modules, and management IP address. Label input/output circuits for quick identification during maintenance or emergency procedures.

Frequently asked questions

• Q: What loads is the Eaton 9PXM suitable for? A: The 9PXM is designed for a range of critical IT loads, including servers, storage arrays, networking equipment, and edge computing devices. Its modular architecture allows you to tailor capacity and runtime to the specific needs of your environment, from compact 4 kVA configurations to robust 16 kVA setups.
• Q: Can I expand runtime without taking the system offline? A: Yes. The 9PXM supports hot-swappable battery and power modules, enabling runtime extension and capacity upgrades without interrupting power to protected equipment.
• Q: Does the 9PXM support secure remote management? A: An optional cybersecure network card provides hardened access for remote management and monitoring, helping protect the UPS from cyber threats while enabling efficient administration.
• Q: Is the UPS suitable for data centers with strict procurement rules? A: Yes. The 9PXM is offered with TAA compliance, aligning with government and enterprise procurement requirements in many regions.
• Q: What configurations are available for space and footprint? A: The cabinet is designed for 14U deployments with optional expansions to 21U, supporting both rack and tower installations to fit a variety of data-center layouts and edge environments.
