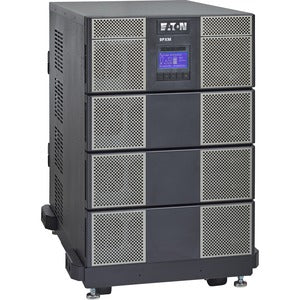

Eaton 9PXM 4000VA UPS — Modular, Scalable Online Double-Conversion Power

The Eaton 9PXM UPS is a scalable, modular online double-conversion power solution engineered for critical IT loads, data centers, and demanding network applications. Designed to deliver high reliability with the lowest total cost of ownership, the 9PXM uses plug-and-play 4 kVA power modules to provide expanding N+X redundancy and robust protection for sensitive equipment. With a compact 14U footprint and rack/tower flexibility, this UPS supports future growth while maintaining tight voltage regulation, fast transient response, and resilient performance in mission-critical environments.

• Modular scalability for growing IT environments — The 9PXM uses four plug-and-play 4 kVA power modules, enabling easy expansion from a baseline so you can add capacity and redundancy as your load increases. This modular design supports N+X configurations, helping you achieve higher availability without overhauling the entire system.
• Online double-conversion protection you can trust — True online double-conversion technology delivers clean, precise output voltage and uninterrupted power to critical equipment. The UPS isolates connected gear from input disturbances, ensuring excellent voltage regulation, fast response to disturbances, and consistent performance even during input dips or outages.
• Flexible power delivery for mixed outlets and hardwired input — The unit accommodates two L6-30R outlets and four 5-20R outlets, giving you versatile connection options for servers, storage, networking equipment, and peripherals. The hardwired input provides a secure, dedicated connection to campus or data-center electrical infrastructure for optimized reliability.
• Cybersecure networking and remote management — Includes a Cybersecure Network Card for protected remote monitoring and management. This capability supports secure communication with Eaton software and standard network management tools, enabling proactive monitoring, firmware updates, and remote shutdown or control when needed.
• Designed for data centers with a compact 14U footprint — The Eaton 9PXM fits eight- or twelve-slot tower enclosures and is designed for dense data-center racks. The 14U form factor combines space efficiency with modular expandability, making it suitable for both deployment in new builds and upgrades to existing infrastructure.

Technical Details of Eaton 9PXM 4000VA 3600W UPS

• Capacity: 4000 VA / 3600 W (standard) with scalable 4 kVA plug-and-play power modules
• Topology: Online double-conversion (VFI) for continuous, high-quality output
• Input: Hardwired input connection to 208–240 VAC supply (50/60 Hz)
• Output: 208–240 VAC nominal output with tight voltage regulation and good dynamic response
• Form factor: 14U rack/tower enclosure for flexible installation in data centers and server rooms
• Enclosure compatibility: Fits eight- or twelve-slot tower enclosures to support modular growth
• Receptacles: 2 x L6-30R outlets and 4 x 5-20R outlets for diverse equipment connections
• Redundancy: N+X modular redundancy to protect critical loads against single-point failures
• Network and security: Cybersecure Network Card included for secure remote management and monitoring
• Compliance: TAA-compliant for government and public-sector procurement
• Reliability features: Hot-swappable power modules and batteries (where applicable) to minimize downtime during maintenance or expansion
• Mounting: Supported in both 14U rack installations and standalone tower configurations to match your data-center layout

how to install Eaton 9PXM UPS

Installing the Eaton 9PXM UPS involves careful planning, proper rack placement, and correct wiring to ensure maximum reliability and service life. Follow these steps to get up and running quickly while preserving uptime and safety:

• Plan your space and load — Determine the available 14U rack space and map your critical devices to the 2 x L6-30R and 4 x 5-20R outlets. Establish a dedicated 208–240 VAC feed from a suitable electrical panel or circuit, ensuring appropriate overcurrent protection and clearance for maintenance access.
• Install the modular power modules — With hot-swappable 4 kVA modules, install the first module into the appropriate slot per Eaton installation guide. Ensure each module is fully seated and follow the sequence for adding additional modules to reach the desired capacity and redundancy (N+X).
• Mount the UPS — Place the 14U chassis into the chosen rack space, or install in a tower configuration if space or facility constraints require. Secure all mounting screws and verify that cooling airflow is unobstructed for optimal thermal performance.
• Connect input and outputs — Connect the hardwired input to the 208–240 VAC supply, ensuring proper grounding and adherence to local electrical codes. Connect IT equipment to the 2 x L6-30R outlets and 4 x 5-20R outlets, distributing loads to balance power draw and minimize outlet crowding.
• Configure network and management — Install the Cybersecure Network Card, connect it to your network, and configure IP settings, alert thresholds, and monitoring preferences. Install Eaton’s management software (such as Intelligent Power Manager or similar) on a connected server or management console for real-time monitoring and alerting.
• Power up and perform a test — After wiring is complete, perform a controlled startup, verify 9PXM self-test runs, and confirm proper output voltage and recovery behavior under simulated fault conditions. Validate that redundant modules engage correctly and that load-sharing is functioning as intended.
• Schedule regular maintenance — Establish a maintenance plan for firmware updates, module inspections, battery health checks (if applicable), and periodic battery replacement planning to preserve performance and availability over time.

Frequently asked questions

• What makes the Eaton 9PXM UPS modular and scalable? — It uses four plug-and-play 4 kVA power modules that can be added or replaced to adjust capacity and redundancy. This design enables N+X configurations to match growing loads without replacing the entire UPS, lowering total cost of ownership and downtime risk.
• What outlet types are available on this unit? — The system provides 2 x L6-30R outlets and 4 x 5-20R outlets, offering a mix of high-amperage and standard outlets suitable for servers, storage, and networking gear while preserving clean, conditioned power to essential equipment.
• What input and output voltages are supported? — The 9PXM is designed for 208–240 VAC input and 208–240 VAC output, with onboard regulation to maintain stable voltages under fluctuating supply conditions, protecting sensitive IT loads.
• Is cybersecurity integrated into the management of the UPS? — Yes. The included Cybersecure Network Card provides secure remote access and monitoring, helping protect against unauthorized control while enabling proactive alerting and health checks.
• How do I monitor and manage the 9PXM? — Use the included network card with Eaton’s monitoring solutions or compatible SNMP tools to track battery health, load, voltage, and fault alerts. Regular firmware updates improve security and reliability.
• Can this UPS support a data center deployment? — Absolutely. With its scalable modular design, N+X redundancy, and a 14U footprint, the 9PXM is well-suited for data-center row applications and enterprise server rooms needing high availability and flexible growth.
• What kind of enclosure can I mount it in? — The 9PXM supports eight- or twelve-slot tower enclosures and can be mounted in standard 14U rack installations, enabling seamless integration into existing configurations.
