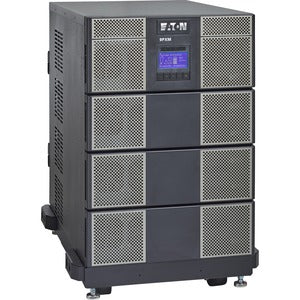

Eaton 9PXM 4000VA 3600W 208-240V Modular Online UPS — Scalable, Redundant Power for Edge Data Centers

The Eaton 9PXM 4000VA modular online UPS delivers enterprise-grade power protection for edge data centers, industrial facilities, and demanding commercial environments. Combining online double-conversion technology with scalable modular architecture, this system provides precise voltage regulation, clean power topology, and resilient uptime even in harsh electrical conditions. Its compact 14U footprint and N+X redundancy make it the ideal solution for applications where space is at a premium and continuous availability is non-negotiable. With hardwired input and output, a cybersecure network card included as standard, and TAA compliance, the 9PXM line is purpose-built to safeguard mission-critical equipment while remaining easy to deploy, monitor, and maintain across growing workloads.

• Modular scalability with hot-swappable battery modules enables you to expand runtime and capacity as your demand grows—without taking critical systems offline. This architecture supports incremental upgrades, protecting your investment and reducing downtime during battery replacements or capacity planning.
• 208-240V input and 208-240V output configuration is designed for standard facility and data center power rails, delivering reliable voltage regulation and clean, isolated power to sensitive IT and industrial gear. The hardwired input/output connections provide robust, code-compliant wiring suitable for demanding environments.
• N+X redundancy capability minimizes single points of failure by granting modular redundancy across both power and runtime components. This design ensures high availability for essential equipment, even during maintenance or partial system failures.
• Cybersecure Network Card included for secure remote management, firmware updates, and event logging. This enables centralized monitoring, proactive alerting, and controlled access to critical UPS settings to protect against cyber threats.
• 14U rack-mount form factor with durable construction and professional-grade reliability. The TAA-compliant design makes it suitable for government and large-scale deployments that require strict procurement standards and traceability.

Technical Details of Eaton 9PXM 4000VA 3600W 208-240V Modular Scalable Online Double-Conversion UPS

• Power rating: 4000 VA / 3600 W
• Topology: Online double-conversion (VFI) for continuous, regulated output even during input fluctuations
• Input: 208-240 VAC, single-phase; input connections are hardwired for secure, industrial-grade installations
• Output: 208-240 VAC, single-phase; hardwired output connections suitable for direct integration with distribution panels
• Form factor: 14U rack-mount configuration designed to fit standard data center racks with ample ventilation and service accessibility
• Modularity and scalability: Modular architecture with hot-swappable battery modules and scalable capacity to support N+X redundancy
• Management and security: Cybersecure Network Card included; supports remote management, secure updates, and event auditing
• Compliance: TAA-compliant for eligible procurement in government and corporate environments
• Application focus: Ideal for edge data centers, industrial automation, and commercial workloads requiring reliable, clean power and rapid fault tolerance
• Efficiency and protection features: Designed to minimize total cost of ownership while delivering robust protection against surges, outages, sags, and brownouts

How to Install Eaton 9PXM

• Plan the installation in a climate-controlled rack environment with adequate airflow and clearance for maintenance access and battery module replacement. Verify the 208-240V supply is available and that the rack space meets the unit’s 14U height and weight specifications.
• Mount the UPS in the 14U rack using the provided rails and hardware. Secure the chassis to the rack, ensuring it is level and stable to prevent vibration or movement during operation.
• Connect the hardwired input cables from your building power distribution to the UPS input terminals, following local electrical codes and Eaton installation guidelines. Do not power the unit until all connections are verified for correctness.
• Attach the hardwired output connections to your critical loads or distribution panel, ensuring proper labeling and separation from non-critical circuits. Route cables to minimize interference and maintain serviceability.
• Install and connect any modular battery packs as required. Allow initial charging to complete before placing the system under full load, and monitor the battery status via the included network card to track charge levels and health.
• Insert the Cybersecure Network Card into the designated slot and connect it to your secure network. Configure remote management access, user permissions, and firmware update schedules to maintain cyber resilience.
• Power up the UPS and run an automated self-test sequence. Confirm normal operation, observe voltage stability on the output, and verify alarm and notification settings on your monitoring system.

Frequently asked questions

• What workloads is the Eaton 9PXM 4000VA best suited for? It is designed for edge data centers, industrial control systems, and commercial applications that require reliable, scalable power protection with minimal downtime. Its modular architecture supports growth as loads expand or runtimes need extension.
• Does the 9PXM include a cybersecure network card? Yes. The model ships with a Cybersecure Network Card included to enable secure remote management, firmware integrity, and event logging, helping you maintain strong security posture for your critical infrastructure.
• Can I expand runtime without replacing the existing UPS? Yes. The modular design allows hot-swappable battery modules to be added to extend runtime, with no interruption to connected loads during the upgrade process.
• Is this UPS suitable for 208-240V facilities? Absolutely. The unit is specified for 208-240V input and output, making it a strong fit for facilities with this voltage profile and for applications that demand precise voltage regulation at the point of use.
• What installation considerations should I know? Ensure adequate rack space (14U), proper ventilation, secure hardwired connections, and a network card configuration that aligns with your organization’s security policies. Regular self-tests and firmware updates are recommended to maximize reliability and security.
