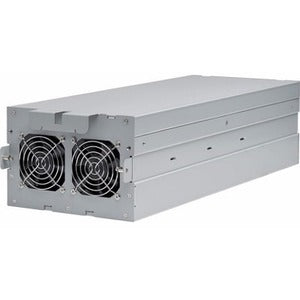

Eaton 9PXM 4000VA 3600W Split-Phase Power Module – Scalable Backup Power for 9PXM UPS Systems

The Eaton 9PXM 4000VA 3600W Split-Phase Power Module is a purpose-built expansion accessory designed to transform your Eaton 9PXM UPS into a scalable, resilient backbone for critical workloads. This plug-and-play power module adds capacity and redundancy where you need it most, giving data centers, IT closets, and remote offices the flexibility to grow without replacing the entire UPS. With support for multiple split-phase voltage configurations, hardwired input/output, and government-grade reliability (TAA-compliant), this module is ideal for environments where uptime is non-negotiable and space is at a premium. Its modular design makes it easy to expand capacity in steps as your load increases, while preserving operational efficiency and simplicity in management. The 9PXM 4000VA module is crafted to integrate seamlessly with existing Eaton UPS ecosystems, reducing commissioning time and enabling quicker disaster recovery readiness. When you depend on steady electrical power to protect servers, networking gear, storage appliances, and virtualization platforms, this power module helps you maintain continuous service with fewer interruptions and simplified upgrades.

• Flexible power scaling and modular redundancy: This power module is engineered to slot into your existing Eaton 9PXM UPS chassis, letting you scale backup capacity in line with demand. By adding one or more modules, you can increase total available VA and create redundancy paths that minimize single-point failures. The modular approach supports growth trajectories—from modest to peak loads—without the downtime or replacement costs associated with overhauling the entire UPS system. In practice, this means you can protect more servers, virtual machines, and storage arrays while maintaining predictable performance during outages and during routine maintenance windows.
• Multivoltage operation for global compatibility: The 9PXM split-phase power module is designed to accommodate a diverse set of power environments. With configurations spanning 110/120V, 120/208V, 120/240V, and 127/220V, it aligns with regional utility standards and data center wiring schemes. This versatility reduces the complexity of cross-site deployments and simplifies fleet-wide UPS management. Operators can deploy the same module in locations with different electrical ecosystems, ensuring consistent behavior and protection for critical loads regardless of geography.
• Plug-and-play installation with hot-swappable expansion: The module is built for rapid deployment and minimal downtime. Its plug-and-play characteristics allow technicians to install it quickly within compatible 9PXM UPS units. Hot-swappable design means you can expand capacity or adjust redundancy without powering down the entire system, preserving uptime for mission-critical applications. Comprehensive installation guidelines ensure secure rack mounting, proper cable routing, and straightforward integration with existing UPS management software, keeping project timelines on track and operational risk low.
• Rugged build and compliance for demanding environments: The Eaton 9PXM 4000VA Split-Phase Power Module is constructed to withstand the rigors of data centers, server rooms, and edge locations. Its hardened hardware, designed for continuous operation in variable ambient conditions, is complemented by government procurement readiness through TAA compliance. This combination of durability and compliance makes it suitable for enterprise deployments, federal projects, and any environment where reliable power protection is essential and procurement standards demand traceability.
• Efficient protection and monitoring for critical workloads: Beyond simply supplying power, the module provides robust protection features and easy monitoring for uptime optimization. It supports advanced overcurrent, short-circuit, and fault-isolation mechanisms to shield connected equipment from power disturbances. When integrated with Eaton’s monitoring tools and UPS software, you gain visibility into load levels, runtime estimates, and health diagnostics, empowering proactive maintenance and informed capacity planning. This focus on reliability translates into fewer surprise outages and smoother disaster recovery testing.

Technical Details of Eaton 9PXM 4000VA 3600W Split-Phase Power Module

• Model: Eaton 9PXM 4000VA Split-Phase Power Module
• Compatibility: Designed for use with Eaton 9PXM UPS systems to extend backup capacity and redundancy through modular expansion
• Rated output: 4000 VA / 3600 W, enabling substantial support for mid-range critical loads
• Voltage configurations: Supports multiple input/output voltages including 110/120V, 120/208V, 120/240V, and 127/220V for global and regional flexibility
• Topology: Split-phase, modular, with hot-swappable expansion capability to maximize uptime during upgrades
• Input/Output: Hardwired input and output connections to ensure secure, low-impedance power transfer and reliable grounding
• Construction: Rugged, rack-mountable form factor designed for data center environments and restrained spaces
• Compliance: TAA compliant, suitable for U.S. government procurement and other markets requiring Trade Agreements Act adherence
• Expansion and redundancy: Enables scalable capacity and parallel redundancy with compatible 9PXM modules, reducing downtime during maintenance and load growth

how to install Eaton 9PXM 4000VA 3600W Split-Phase Power Module

• Confirm compatibility with your existing Eaton 9PXM UPS model and verify available expansion slots in the chassis or enclosure.
• Power down the UPS and disconnect input power; follow all site safety and electrical codes to prevent injury or equipment damage.
• If replacing an existing module, remove it per the Eaton service documentation, then inspect connectors and mounting points for cleanliness and integrity.
• Align the new 9PXM split-phase power module with the corresponding interface and firmly seat it into the expansion slot; secure with any required fasteners, ensuring a snug fit without forcing the connector.
• Connect the hardwired input and output cables according to the installation manual, verifying correct grounding and cable routing to minimize EMI and improve airflow.
• Power up the UPS and run the built-in self-test; monitor for proper voltage regulation, load transfer during simulated outages, and any warning indicators or alarms.

Frequently asked questions

• Q: What voltage configurations does the Eaton 9PXM 4000VA Split-Phase Power Module support?
  A: It supports multiple configurations including 110/120V, 120/208V, 120/240V, and 127/220V to accommodate diverse power architectures and regional standards.
• Q: Is the 9PXM Power Module hot-swappable?
  A: Yes. The module is designed for hot-swappable expansion within compatible 9PXM UPS environments, allowing capacity and redundancy upgrades with minimal downtime.
• Q: What is the total power rating of this module?
  A: The module provides 4000 VA of backup capacity with a practical 3600 W rating, making it suitable for mid-range server, storage, and networking workloads.
• Q: Is the module compliant with Trade Agreements Act (TAA) requirements?
  A: Yes, this product is TAA-compliant, aligning with procurement standards for government and other regulated buyers.
• Q: How should I verify proper operation after installation?
  A: After installation, perform the UPS self-test, monitor load and battery status, and check for alarms or fault indicators in the UPS management interface; consult the Eaton installation and safety manuals for detailed testing procedures.
