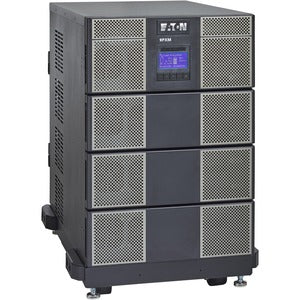

Eaton 9PXM 8kVA Modular Online UPS — 208-240V, 14U, 4x 5-20R, 2x L6-30R, Hardwired Input, Cybersecure Network Card Included, TAA

The Eaton 9PXM UPS is a groundbreaking modular online double-conversion power protection system designed for data centers, edge computing, and mission-critical applications that demand the highest levels of reliability, availability, and protection from power disturbances. Built around scalable, hot-swappable 4 kVA power modules, the 9PXM delivers an expandable level of N+X redundancy while maintaining a compact footprint in a 14U enclosure. Its modular architecture means you can add capacity or redundancy as your IT footprint grows, without the need for a full system replacement. This makes the 9PXM an ideal choice for organizations pursuing a lower total cost of ownership while maintaining maximum uptime and advanced power quality for sensitive equipment.

• Scalable modular architecture enabling N+X redundancy through plug-and-play 4 kVA power modules, giving you a future-ready path to meet rising workloads.
• Online double-conversion topology that continuously converts incoming AC power to DC and back to clean, regulated AC output, preserving waveform integrity and protecting every connected device from outages, sags, swells, and transient disturbances.
• Hardwired input configuration for reliable, low-impedance integration within data centers and enterprise deployments, ensuring stable power delivery to racks and cabinets.
• Flexible outlet arrangement with 4x 5-20R and 2x L6-30R receptacles, enabling diverse IT loads—from racks of servers to network gear and storage arrays—to be powered from a single UPS footprint.
• Cybersecure Network Card included for secure remote monitoring, access control, and simplified integration with modern data-center management platforms, helping you meet cybersecurity and compliance requirements.

The 9PXM is designed to fit eight- or twelve-slot tower enclosures, giving you the flexibility to choose a configuration that matches your current rack space and power needs while preserving room for growth. With a compact 14U rack-tower footprint, this UPS is engineered for data-center environments, colocation facilities, and edge deployments where space is at a premium but the demand for uninterrupted power is non-negotiable. The modular design also enables rapid maintenance and reduced mean time to repair (MTTR) since failed modules can be replaced without powering down critical systems. In short, the Eaton 9PXM is built to minimize downtime, maximize uptime, and reduce lifecycle costs through intelligent scalability and robust power protection.

Power reliability goes beyond simple availability. The 9PXM is engineered to deliver top-tier energy efficiency and thermal performance, helping organizations reduce electricity costs and heat generation in crowded data-center environments. The UPS supports a wide input voltage range and stable output regulation, ensuring sensitive equipment receives clean power even when mains conditions fluctuate. Its design emphasizes low total cost of ownership by enabling modular upgrades, streamlined maintenance, and a secure, manageable platform that integrates with existing monitoring and management ecosystems. When uptime, performance, and security are non-negotiable, the Eaton 9PXM stands out as a resilient, scalable solution that aligns with modern IT workloads and compliance requirements.

In addition to its core power protection capabilities, the 9PXM is built with practical features intended to simplify deployment and ongoing operation. The 14U enclosure height makes it compatible with a broad range of rack systems, while the eight- or twelve-slot tower options provide scalable expansion paths. TAA compliance ensures suitability for government procurement in applicable regions. The included Cybersecure Network Card adds an essential layer of protection for remote management, enabling features such as secure SNMP access and encrypted communication with management platforms. This combination of scalability, security, and efficiency makes the Eaton 9PXM a compelling choice for organizations seeking a durable, future-proof UPS that protects critical workloads while delivering a favorable total cost of ownership.

Technical Details of Eaton 9PXM UPS

• Model: Eaton 9PXM
• Topology: Online double-conversion (AC/DC/AC)
• Power rating: 8 kVA / 7.2 kW (scalable with modular power modules)
• Input: Hardwired 208-240 V (± range depending on configuration)
• Output: 208-240 V (balanced or single-phase as configured)
• Enclosure: 14U rack/tower height; supports eight-slot or twelve-slot tower enclosures
• Power modules: 4 kVA plug-and-play modules enabling modular growth and N+X redundancy
• Outlet configuration: 4x 5-20R and 2x L6-30R
• Network security: Cybersecure Network Card included for secure remote management
• Protection and monitoring: Robust protection features, real-time status monitoring, and integration with enterprise management tools
• Compliance: TAA-compliant for eligible government procurement in supported regions

How to Install Eaton 9PXM

• Plan the installation by selecting a suitable 14U rack footprint or tower setup, ensuring adequate clearance for airflow and service access.
• Mount the UPS securely in the chosen configuration (rack or tower) with appropriate stabilization and vibration isolation as required by your data center standards.
• Connect the hardwired input power to the designated electrical feed, following all local electrical codes and safety precautions. Use the recommended circuit breakers and wiring gauges for 208-240 V operation.
• Attach the Cybersecure Network Card and configure initial security settings, including user access, SNMP credentials, and encryption options to protect remote management interfaces.
• Connect the 4x 5-20R and 2x L6-30R outlets to your critical loads, organize cabling for airflow and maintenance, and perform a startup sequence per the manufacturer’s commissioning procedure to verify output regulation and battery readiness.

Frequently asked questions

• What is the capacity of the Eaton 9PXM? The 9PXM provides 8 kVA / 7.2 kW of scalable power, with modular 4 kVA power modules that enable N+X redundancy for higher uptime as loads grow.
• What type of power topology does it use? It uses online double-conversion power protection, ensuring a clean, precise output waveform even during input disturbances or outages.
• What input and output voltages does it support? It is designed for 208-240 V input and 208-240 V output, making it well-suited for U.S. commercial power systems and international installations with compatible configurations.
• How many outlets are provided and what types? The system offers 4x 5-20R outlets and 2x L6-30R outlets, providing flexible connections for servers, storage, networking gear, and other critical devices.
• Does it include security features for remote management? Yes, the included Cybersecure Network Card enables secure remote management and integration with enterprise monitoring and security policies.
• Is this UPS suitable for government procurement? Yes, it is TAA-compliant, making it eligible for applicable government programs and procurement requirements.
