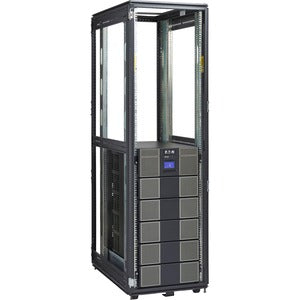

Eaton 9PXM 8kVA 7.2kW 208-240V N+1 Modular Scalable Online Double-Conversion UPS

In today’s fast-paced edge environments and demanding industrial workflows, power reliability is non-negotiable. The Eaton 9PXM 8kVA UPS is engineered to protect critical workloads with industry-leading modular scalability, online double-conversion protection, and a compact, rugged form factor. Designed for 208–240V systems, this N+1 capable, modular UPS delivers clean, continuous power to servers, storage, network devices, and control systems, ensuring high availability and business continuity even when the grid falters. Its intelligent design combines hot-swappable modules, dual network card slots, and a flexible outlet configuration to support growing workloads while simplifying maintenance and reducing downtime.

Whether you are deploying a small edge data center, a manufacturing floor, or a remote facility, the 9PXM scales with your needs. The modular architecture enables you to add power modules and battery strings as demand increases, without powering down the entire system. The result is a future-proof platform that protects mission-critical equipment from voltage sags, harmonic distortion, frequency variation, and other disturbances that can compromise performance or shorten hardware life. With TAA eligibility, this UPS is suitable for government procurement and regulated enterprise environments, combining reliability with compliance.

• Modular, scalable architecture with hot-swappable power modules and battery strings to accommodate growth and changing power demands without interrupting uptime.
• N+1 redundancy paired with online double-conversion topology delivers continuous, clean power to sensitive equipment, ensuring immediate protection during outages or disturbances.
• 208–240V input and a versatile outlet mix (8x 5-20R, 2x L6-30R, 2x L6-20R, 2x L14-30R) to support a wide range of servers, storage devices, and network gear with flexible rack layouts.
• Dual network card slots enable robust remote monitoring, alerts, and seamless integration with enterprise management systems and DCIM tools for proactive power management.
• Compact 21U rack-mountable footprint with rugged construction, designed for edge data centers, industrial facilities, and environments where space efficiency and uptime are critical.

Technical Details of Eaton 9PXM 8kVA 7.2kW 208-240V N+1 Modular Scalable Online Double-Conversion UPS

• Power rating: 8 kVA / 7.2 kW online double-conversion UPS with N+1 modular redundancy for uninterrupted operation.
• Input voltage: 208–240 V (three-wire input) suitable for standard data center or facility power distribution; hardwired input configuration supported.
• Output configuration: Precise voltage regulation with a clean sine wave under all load conditions to protect sensitive IT equipment.
• Redundancy and scalability: N+1 architecture with hot-swappable power modules and battery strings; capacity can be expanded by adding modules without downtime.
• Outlet suite: 8 × 5-20R, 2 × L6-30R, 2 × L6-20R, 2 × L14-30R for direct server, storage, and network device connections; configurable to support mixed equipment.
• Rack footprint: 21U, front and rear service access for convenient maintenance and upgrades in constrained environments.
• Management: Dual network card slots enable remote monitoring, SNMP, alerts, and integration with Eaton software and DCIM platforms for proactive power management.
• Compliance: TAA-compliant, suitable for government procurement and regulated deployments.

How to Install Eaton 9PXM UPS

Begin by selecting a compliant rack solution in a location with adequate ventilation and clearance for airflow, access, and maintenance. Install the 9PXM in a standard 19-inch rack up to a 21U height, ensuring the unit is level and securely bolted. Prepare the hardwired input connections following local electrical codes, using appropriate circuit protection and proper gauge wiring. Connect the facility power to the UPS input, and verify that the input circuit is protected and sized to support the expected load under normal and peak conditions.

Mount the UPS module(s) in the rack and route cables to minimize tension and interference. Connect critical loads to the designated outlets (8 × 5-20R, 2 × L6-30R, 2 × L6-20R, 2 × L14-30R). If you are implementing an N+1 configuration, ensure spare modular units and battery strings are accessible and ready for hot-swapping without interrupting the live system. Install and attach battery cartridges or strings per the user manual, then confirm all electrical and mechanical connections are secure.

Power up the system and perform initial configuration. Enable the dual network card modules for remote monitoring, set alarm thresholds, and connect the UPS to your monitoring environment via Eaton software or compatible DCIM tools. Run a self-test to verify battery health, inverter operation, and transfer performance under load. Ensure firmware is current and schedule routine maintenance, battery health checks, and firmware updates in your asset management plan. Document the installation with details of rack position, circuit protection, loads connected, network endpoints, and maintenance schedules to support ongoing reliability and quick troubleshooting.

Operationally, educate on-site staff about basic power-event responses, the importance of battery health, and how to interpret alerts. Establish escalation procedures for alarms and ensure spare parts, battery strings, and modules are readily available for rapid replacement. By following these steps, you maximize uptime, extend battery life, and protect critical workloads in edge deployments or industrial settings where reliability is paramount.

Frequently Asked Questions

• Q: What does N+1 mean for the Eaton 9PXM UPS?
  A: N+1 indicates the system includes one additional module or battery string beyond the minimum required capacity, providing redundancy so maintenance or a single fault does not interrupt critical loads.
• Q: Is remote monitoring supported?
  A: Yes. The 9PXM features dual network card slots for remote monitoring, alerts, and integration with Eaton software and DCIM platforms to keep administrators informed in real time.
• Q: What loads are best protected by this UPS?
  A: The UPS protects servers, storage devices, network equipment, and other critical IT infrastructure that require clean, stable power with minimal interruption, especially in edge and industrial environments.
• Q: How many outlets are included and what types?
  A: The unit provides a mix of outlets: 8 × 5-20R, 2 × L6-30R, 2 × L6-20R, and 2 × L14-30R, enabling diverse connections for different equipment configurations.
• Q: Is the 9PXM suitable for government procurement?
  A: Yes. The product is TAA-compliant, making it suitable for government use and regulated procurement scenarios.
