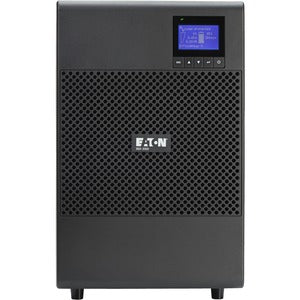

Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS

Protect your most important equipment with the Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS. Designed for servers, networking gear, and critical workstations, this high-performance uninterruptible power supply delivers pristine, continuous power with zero transfer time. Its online double-conversion topology provides true sine-wave output, superior voltage regulation, and rapid protection against power disturbances, making it a reliable backbone for data centers, remote offices, and industrial environments. With six NEMA 5-20R outlets and one NEMA L5-20R receptacle, this UPS offers flexible connectivity for a variety of devices while maintaining compact, space-saving form factors for rack- or floor-mounted deployments.

• Robust capacity for essential equipment: 2000 VA / 1800 W of backup power ensures servers, storage, networking gear, and workstations stay online during outages, brief brownouts, and surges.
• Online double-conversion with true sine-wave output: Cleans and maintains voltage quality essential for sensitive electronics, even under heavy loads or poor utility conditions, reducing the risk of data corruption or hardware damage.
• Versatile outlet configuration: 6 x NEMA 5-20R outlets plus 1 x NEMA L5-20R provide flexible connections for diverse devices while preserving clean distribution and easy cable management.
• Intelligent battery management and fast diagnostics: Hot-swappable battery modules allow easy maintenance without disconnecting critical loads, while an intuitive LCD interface delivers real-time status, estimated runtime, and event logs.
• Integrated protection and easy integration: USB and Serial connectivity enable graceful shutdowns, monitoring, and software integration with your existing infrastructure tools; optional network management card enhances remote visibility and control.

Technical Details of Eaton 9SX 2000VA UPS

• Topology: Online Double-Conversion (true online UPS) for continuous, clean power delivery.
• Capacity: 2000 VA / 1800 W rated output to support mid-range server and network ecosystems.
• Output voltage: 120 VAC nominal (standard U.S. 120 V electrical systems).
• Output waveform: Pure sine wave to ensure compatibility with sensitive loads and address power-sensitive peripherals.
• Input: 120 VAC input with three-wire configuration and proper grounding for safe operation.
• Outlets: 6 x NEMA 5-20R plus 1 x NEMA L5-20R for flexible equipment connections and secure locking option where applicable.
• Efficiency: High-efficiency operation typical of online UPS systems, designed to minimize energy waste while delivering reliable power.
• Battery system: Hot-swappable, user-replaceable battery modules to simplify maintenance and extend uptime without significant downtime.
• Management and monitoring: Front-panel LCD for real-time metrics, alarms, and configuration; USB and Serial ports for local shutdown and monitoring; optional network management card for remote oversight.
• Alarm and protection features: Audible alarms for abnormal conditions, voltage fluctuations, and battery status to keep operators informed even when not at the console.
• Physical form factor: Designed for reliable operation in office or data center environments, with a compact footprint suitable for rack or standalone placement.
• Serviceability: Modular battery design and accessible circuitry facilitate field service and routine maintenance with minimal disruption to critical loads.

How to Install Eaton 9SX 2000VA

Installing the Eaton 9SX is straightforward and designed to minimize downtime. Begin by selecting a clean, cool, and ventilated area with adequate clearance for airflow and battery access. Position the UPS so that the front panel is accessible for status checks and the rear port panel remains free for cables and connections. If you plan a rack-mount deployment, ensure you have the appropriate rails or enclosure compatible with your space. Before powering anything on, review the load to confirm it stays within the UPS’s rated 1800 W output—overloading can degrade performance and shorten backup times.

1) Connect the input power from a dedicated 120V circuit with proper grounding. Use a suitable circuit breaker and avoid daisy-chaining through multiple devices to maintain clean input power. If your site has frequent fluctuations, allow the UPS to sense and stabilize the input voltage for better performance.

2) Attach the six NEMA 5-20R outlets and the single NEMA L5-20R to the devices you wish to protect. Distribute critical equipment on the L5-20R where a locking connection is preferred for high-vibration environments or temporary relocations, and reserve the NEMA 5-20R outlets for general protected devices such as servers, network switches, and workstations.

3) Install or verify the battery modules. If you’re replacing or upgrading batteries, ensure the UPS is powered off and unplugged before handling any battery components. Insert the hot-swappable modules following the user manual, reseal the enclosure, and re-check connections. Use the LCD panel to confirm battery status after installation and allow a brief calibration self-test.

4) Connect your management and monitoring interface. Attach the USB cable to a connected computer or server to enable graceful shutdowns and event logging. If you require remote management, install the optional network management card or ensure the existing management infrastructure recognizes the UPS for status polling and alerting. Configure shutdown policies, alert thresholds, and notification methods to fit your operational requirements.

5) Power up and perform an initial self-test. The LCD will display load, battery capacity, input/output voltage, and runtime estimates. Confirm that the protected devices power down gracefully in a controlled manner if the UPS detects an anomaly, and verify that the load is within the safe operating range. Periodic self-tests are recommended to maintain reliability and to identify potential battery degradation before it impacts uptime.

For ongoing protection, consider implementing a formal maintenance plan that includes periodic battery testing, firmware updates, and configuration reviews to align with changing workloads. The Eaton 9SX is designed to be resilient, scalable, and easy to service, making it a practical choice for organizations needing dependable backup power without sacrificing performance or ease of use.

Frequently asked questions

• Q: What loads can the Eaton 9SX 2000VA support?
• A: The unit is rated for up to 1800 W of continuous power, suitable for servers, storage devices, network equipment, and workstations with headroom for short peak loads. Always calculate your actual load to ensure you stay within the rated capacity.
• Q: Does it provide protection against brownouts and surges?
• A: Yes. The online double-conversion topology continuously regenerates voltage, providing voltage regulation and surge protection for connected equipment.
• Q: How do I monitor the UPS?
• A: Use the USB or Serial connection for local monitoring and shutdown. Optional network management cards enable remote monitoring, alerting, and centralized management integration.
• Q: Can I expand runtime?
• A: Yes. The UPS supports external battery modules and hot-swappable batteries to extend runtime as your needs grow.
• Q: Is the UPS easy to service?
• A: The unit is designed with accessible replacement parts and hot-swappable batteries, enabling straightforward maintenance without taking critical systems offline.
