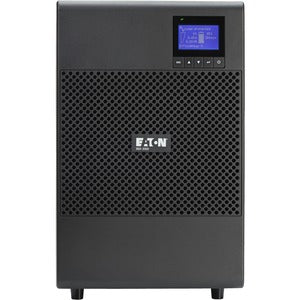

Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS

The Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS delivers clean, continuous power to your critical equipment, protecting servers, networking gear, and workstations from outages, surges, and data-loss events. Built for reliability in demanding environments, this compact tower UPS combines a true online double-conversion topology with generous outlet configuration and expandable runtime options. It’s designed to keep essential systems running smoothly even during severe voltage fluctuations, making it an ideal choice for small data centers, IT closets, and business-critical equipment in office or industrial settings.

• True online, double-conversion protection: The 9SX continuously converts incoming AC to DC and then regenerates a clean, regulated sine-wave AC output. This eliminates input irregularities, isolates connected equipment from brownouts and transients, and provides near-zero transfer time during power events, so your servers and storage stay online without interruption.
• High-capacity, 120V performance: With a rating of 2000 VA / 1800 W and a standard 120V output, this UPS powers critical devices with steady voltage and reliable surge suppression. Its scalable design supports sensitive electronics, network gear, and essential peripherals, giving you peace of mind during peak load conditions.
• Versatile outlet configuration: The unit features six NEMA 5-20R outlets plus one L5-20R outlet, providing flexible, code-compliant connections for multiple devices. Place your servers, switches, NAS, and other peripherals on dedicated protected circuits while leaving room for essential peripherals that require different plug types.
• Extended Run and modular upgrades: Engineered for longer runtimes, the Eaton 9SX supports Extended Run configurations with external battery modules (EBMs). This capability lets you tailor runtime to your workload, giving you valuable buffer during outages and graceful shutdowns for critical systems.
• Cybersecure network management option: Opt for the Cybersecure Network Card to monitor, manage, and control the UPS remotely. This feature enables secure access for asset management, automated notifications, and integration with centralized IT monitoring tools, all while preserving the integrity of your critical network infrastructure.

Technical Details of Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS

• Capacity: 2000 VA / 1800 W
• Output Voltage: 120 V nominal
• Topology: Online double-conversion (true online) UPS
• Outlets: 6 x NEMA 5-20R, 1 x L5-20R
• Form Factor: Tower design for space-saving placement
• Runtime: Extended Run capable with optional external battery modules (EBMs)
• Protection: Surge suppression and electromagnetic interference (EMI/RFI) filtering for clean power
• Management: Optional Cybersecure Network Card for remote monitoring and secure management
• Indicators: Front-panel status indicators and LCD/LED readouts for easy diagnostics

How to Install Eaton 9SX 2000VA 1800W 120V Online Double-Conversion UPS

• Choose a cool, dry, well-ventilated location with at least several inches of clearance around the unit to ensure proper cooling.
• Place the UPS in a stable, upright tower orientation on a level surface to prevent tipping or vibration during operation.
• Connect critical devices to the six NEMA 5-20R outlets and the one L5-20R outlet, grouping high-priority equipment together for easy management during outages.
• Plug the UPS into a dedicated 120V circuit with adequate amperage to support the connected load, avoiding daisy-chaining or sharing the circuit with nonessential loads.
• If you plan to use the Cybersecure Network Card, install the card according to the user manual and connect it to your network, enabling secure remote monitoring, alerts, and management.

Frequently asked questions

• What is online double-conversion power protection? Online double-conversion UPS systems continuously convert incoming AC power to DC and then back to a regulated AC output, delivering a clean, stable sine wave and isolating connected equipment from input disturbances and outages.
• What outlets does the Eaton 9SX provide? This unit offers 6 NEMA 5-20R outlets and 1 L5-20R outlet for flexible connections to servers, switches, NAS devices, and other critical gear.
• Can runtime be extended? Yes, the 9SX supports Extended Run with external battery modules, allowing longer operation during extended outages and smoother shutdowns for sensitive systems.
• Is there a network management option? The Cybersecure Network Card Option enables secure remote monitoring and management, integrating with IT monitoring systems while protecting against network threats.
• Who should consider the Eaton 9SX 2000VA UPS? Small data centers, IT closets, server rooms, and any environment that requires reliable, clean power for critical devices and a configurable extension of runtime.
