Eaton ATS Rack PDU – 1.92 kW Max, 110–125V, 16A, 1U, 8 NEMA 5-20R Outlets

Power reliability and organized cable management are essential for modern IT environments. The Eaton ATS Rack PDU delivers a compact, 1U power distribution solution designed for single-phase operation, providing up to 1.92 kVA of reliable power for servers, switches, storage devices, and peripheral equipment. With eight NEMA 5-20R outlets, this PDU supports flexible deployment in standard 19-inch racks while offering straightforward configuration and built-in circuit protection for trouble-free maintenance. Its front-access design and space-saving footprint help you maximize rack density, reduce cable clutter, and simplify power distribution across busy data centers, edge closets, and laboratory environments.

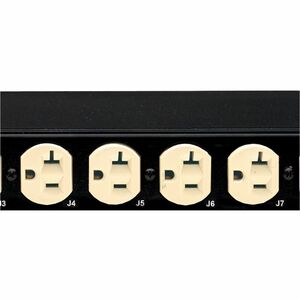

• 8 x NEMA 5-20R outlets provide flexible, front-access power distribution for a range of IT equipment, enabling easy organization of power loads within a single rack.
• 1U rack-mountable form factor fits into standard 19-inch racks, delivering space-efficient installation that preserves valuable rack space for critical devices.
• 110–125V input with a 16A current rating delivers ample headroom for common data center gear, servers, and network appliances while maintaining reliable performance.
• NEMA 5-20P plug/connector ensures compatibility with standard North American power circuits and a secure, dependable power input connection.
• Built-in circuit protection and simple configuration support trouble-free access to power, helping to safeguard connected equipment and streamline maintenance tasks.

Technical Details of Eaton ATS Rack PDU 1.92 kW max 110-125V 16A 1U 8 Outlet Single-Phase PDU

• Power rating: 1.92 kW (1.92 kVA) maximum.
• Voltage: 110–125V AC.
• Current rating: 16A maximum.
• Outlets: 8 x NEMA 5-20R.
• Form factor: 1U, rack-mountable in standard 19-inch racks.
• Input connector: NEMA 5-20P.
• Phase: Single-phase.

How to install Eaton ATS Rack PDU

• Plan your rack layout and ensure there is enough clearance for front access to the 8 outlets and rear cabling; prepare the mounting area in a standard 19-inch rack.
• Mount the PDU into the rack using the included hardware, aligning it with the front rail or center of the rack as specified by the installation guide to ensure stable support.
• Connect the NEMA 5-20P plug to a suitable 110–125V power circuit that matches the 16A rating; verify that the circuit is not overloaded before powering on.
• Route power cables from the eight NEMA 5-20R outlets to your devices, keeping cables organized to promote airflow and minimize impedance or congestion around the rack.
• Power up the rack, verify each receptacle, and confirm proper operation and any built-in protection indicators; perform a basic load test with representative equipment to ensure balanced distribution and reliability.

Frequently asked questions

• Q: What outlets are included on this Eaton PDU? A: 8 x NEMA 5-20R outlets provide versatile front-access power distribution for IT equipment.
• Q: What voltage and current does it require? A: It operates at 110–125V AC with a maximum rating of 16A.
• Q: What is the maximum power output? A: Up to 1.92 kW (1.92 kVA).
• Q: Is this PDU suitable for rack deployment? A: Yes, it is designed for 1U, 19-inch racks to maximize space efficiency in data centers and network rooms.
• Q: What type of input plug does it use? A: NEMA 5-20P input connector for reliable connection to standard North American power circuits.
