Eaton ATS Rack PDU 1U 1.44 kW 12A 110-125V 2 NEMA 5-15P Inputs 8 5-15R Outputs

EatonSKU: 2878442

Price:
Sale price$1,313.86

Description

Eaton ATS Rack PDU 1U - 1.44 kW, 110-125V, 12A, 2 NEMA 5-15P Inputs, 8 x 5-15R Outputs

The Eaton ATS Rack PDU in a sleek 1U form factor delivers dependable, space-saving power distribution for critical IT gear in data centers, server rooms, and high-density racks. Designed to fit standard 19-inch racks, this PDU keeps cables organized while maximizing airflow and overall rack efficiency. With a compact footprint and robust performance, it supports a range of equipment—from servers and switches to storage devices and networking gear—without compromising uptime. The PDU provides 110-125V output at up to 1.44 kW (12 A), with eight NEMA 5-15R receptacles that are easy to reach and monitor. Its dual NEMA 5-15P inputs add flexibility for redundant or separate power feeds, making it well-suited for environments where consistent power delivery is essential. Built to Eaton’s exacting standards, this PDU offers solid construction, reliable connections, and straightforward installation for IT professionals seeking reliable, scalable power distribution in dense rack environments.

  • Eight NEMA 5-15R outlets: Plenty of receptacles for servers, switches, storage, and networking gear on a single, organized unit.
  • 1.44 kVA capacity at 110–125V: Delivers up to 12 A of continuous power to connected devices while maintaining clean, stable output.
  • 1U rack-mountable design: Fits standard 19-inch racks, optimizing space without compromising accessibility or airflow.
  • Two NEMA 5-15P inputs: Provides flexible, redundant or split-power sourcing to improve reliability in critical IT environments.
  • Ideal for data centers and IT closets: A dependable, compact solution to power distribution needs across dense equipment setups.

Techncial Details of Eaton ATS Rack PDU 1U

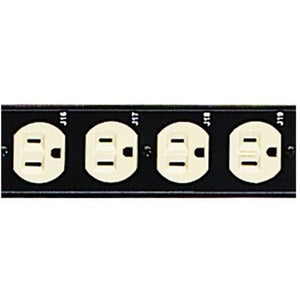

  • 8 x NEMA 5-15R outlets
  • Input: 2 x NEMA 5-15P
  • Output: 8 x NEMA 5-15R
  • Power capacity: 1.44 kVA / 12 A
  • Voltage: 110–125 V
  • Form factor: 1U rack-mountable

how to install Eaton ATS Rack PDU

Step 1: Prepare the rack and workspace — Confirm your rack is a standard 19-inch enclosure with adequate depth to accommodate the 1U PDU. Clear the area around the rack to ensure safe handling of the equipment and to allow for proper ventilation. Verify that your electrical infrastructure can supply 110–125 V and supports the dual NEMA 5-15P inputs specified for this unit.

Step 2: Mount the PDU in the rack — Position the PDU at the desired location within the rack, typically near the top to minimize cable congestion. Align the mounting flanges with the rack’s vertical mounting rails and secure the unit using appropriate screws. Ensure the PDU sits level and that there is sufficient clearance for cable access and airflow around the unit.

Step 3: Connect the power inputs — Attach the two NEMA 5-15P input cords to two independent 110–125 V power sources or feeders as required by your data center power policy. Route the input cords neatly, avoiding sharp bends and ensuring they won’t be pinched when rack doors or panels are closed. If you are using a power distribution topology with redundancy, connect each input cord to its own dedicated power circuit or UPS output as appropriate.

Step 4: Connect equipment to the outlets — Plan the device layout so that critical components receive immediate access to power from the 8 x NEMA 5-15R outlets. Group high-priority devices together on dedicated outlets if desired, and label each outlet for quick identification during maintenance. Keep cords organized with ties or velcro to minimize clutter and improve airflow within the rack.

Step 5: Cable management, safety, and testing — Manage cables to prevent tangling and ensure hot air from equipment does not accumulate around the PDU. Perform a visual check to confirm all connections are secure before powering on. With power applied, gradually load the outlets to verify stable voltage and proper operation. If you’re integrating with a UPS or PDU monitoring system, configure any management interfaces as required and run a brief functional test to ensure all outlets respond correctly to the connected devices.

Safety notes: Always follow the manufacturer’s installation manual and your facility’s electrical safety procedures. Do not exceed the rated 1.44 kVA / 12 A capacity. Ensure a total power draw from all connected devices remains within the 110–125 V range to prevent nuisance trips or overheating. If you are unsure about dual-input wiring or rack-mount safety, consult a qualified electrician or IT professional.

Frequently asked questions

  • Q: What is the power rating of this Eaton PDU? A: It provides 1.44 kW (1.44 kVA) at 110–125 V, up to 12 A total across the eight NEMA 5-15R outlets.
  • Q: How many outlets does it have and what type are they? A: It features 8 x NEMA 5-15R outlets for standard 120 V equipment.
  • Q: How many input cords are there and what are their plug types? A: The unit has 2 x NEMA 5-15P input cords for flexible, potentially redundant power sourcing.
  • Q: What is the physical form factor? A: The PDU is a 1U, rack-mountable device designed to fit standard 19-inch racks.
  • Q: Is this suitable for data centers and IT closets? A: Yes. Its compact 1U design, multiple outlets, and dual inputs make it well-suited for data centers, server rooms, and IT closets requiring reliable power distribution.
  • Q: Can I monitor or manage this PDU remotely? A: The provided description focuses on basic power distribution features. For remote monitoring or management, check if there is an optional metering or management module compatible with Eaton’s ecosystem or consult the product’s datasheet for networking capabilities.
